Controlling Multiple Amplifiers with One Volume Controller
Several XPA 1002 and XPA 2001 series units can be daisy-chained so that one volume
controller can simultaneously regulate the volume of all the amplifiers.
NOTES:
•
As additional amplifiers are added to the daisy chain, the sensitivity of the
volume potentiometer will change. The maximum volume level (fully clockwise)
will not be affected. However, the effectiveness of the minimum volume level
(fully counterclockwise) in reducing the volume to inaudible levels decreases as
more amplifiers are added to the daisy chain.
•
When more than two XPA Half-Rack units are attached to the chain, sound may
be heard even if the levels have been set to their lowest. If complete muting is
required, use a contact closure switch attached between the C (Vol/Mute) and
the G (ground) pins of the first XPA Half-Rack unit in the chain.
To regulate multiple amplifiers with a single volume controller:
1.
Attach all three pins of the volume controller to the corresponding pins on the first
XPA Half-Rack unit only — Ground to G (ground), Vol/Mute to C (Vol/Mute),
and 10 V to V (10 V).
2.
Use jumper wires to connect the C (Vol/Mute) pins of the first amplifier and each
successive amplifier.
3.
Use jumper wires to connect the G (ground) pins of the first amplifier and each
successive amplifier.
VOL/ MUTE
10V
REMOTE
G
G
C
V
10V
50mA
ST
ANDBY
REMOTE
G
G
C
V
10V
50mA
ST
ANDBY
Extron
VCM 100 AAP
Extron
XPA Half-Rack
daisy chain
1 2 3 4 5
STANDBY
VOL/MUTE
10V
50 mA
1 2 3 4 5
STANDBY
VOL/MUTE
10V
50 mA
1 2 3 4 5
STANDBY
VOL/MUTE
10V
50 mA
or
1 2 3 4 5
VOL/MUTE
10V
50 mA
STANDBY
1 2 3 4 5
VOL/MUTE
10V
50 mA
STANDBY
1 2 3 4 5
VOL/MUTE
10V
50 mA
STANDBY
REMOTE
G
G
C
V
10V
50mA
ST
ANDBY

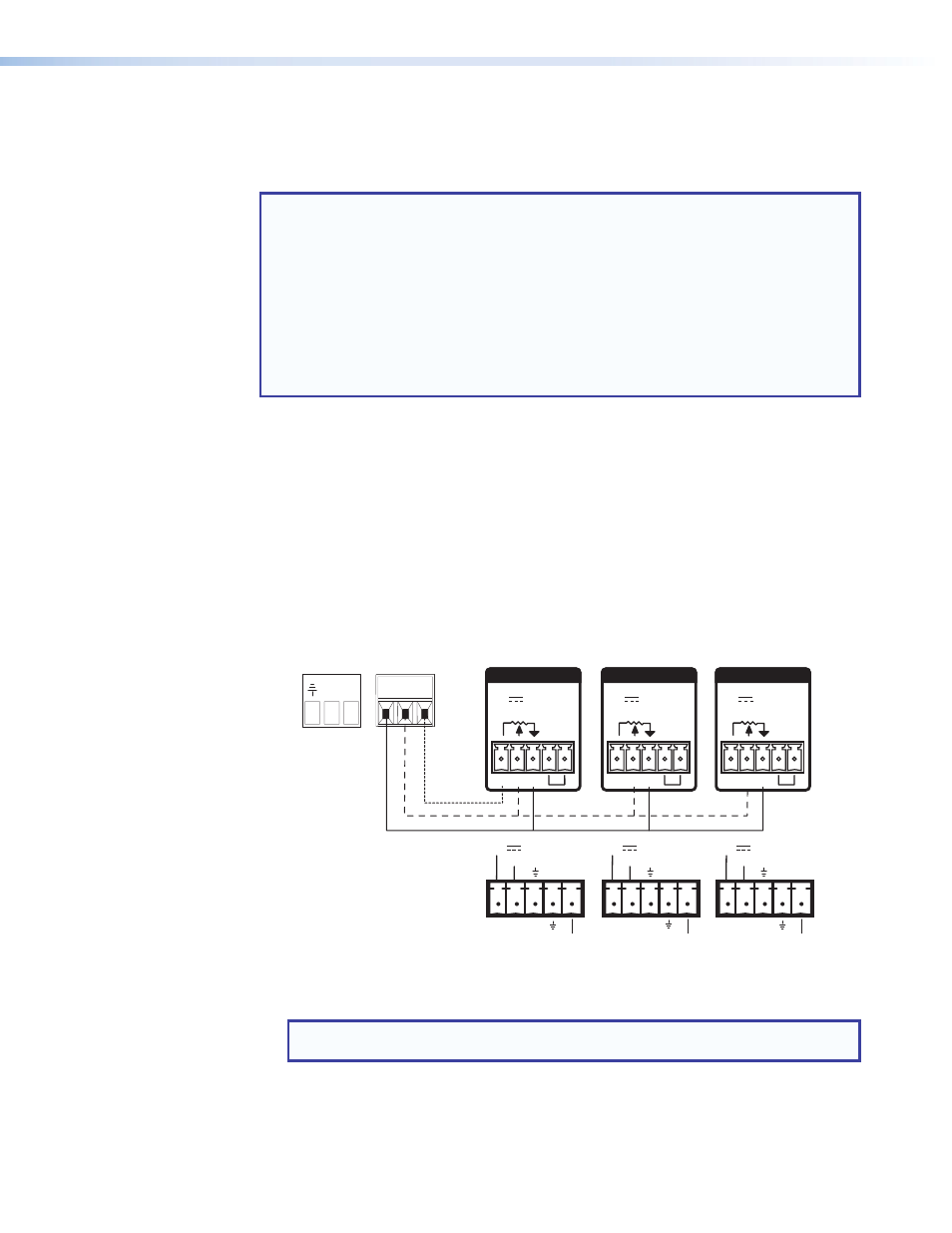

Figure 9.
Regulating Multiple Amplifiers with a Single Volume Controller
NOTE: The 10 V pin of the volume controller connects to the first XPA Half-Rack
unit only. There are no jumper wires linking it to subsequent amplifiers.
