CTP150CM Remote Control Panel • Installation and Operation
Installation and Operation, cont’d
CTP150CM Remote Control Panel
A
Appendix
Reference Information
Specifications
Parts List
2-8
Front Panel Operation
The control panel (figure 2-7) emulates many front panel
controls of the TPT150 transmitter. See the TPS150 manual for
more details for each control.
PC 1
PC 2
VIDEO 1
VIDEO 2
PROJECTOR
POWER
DOWN
VOLUME
UP
2
3
3
1
1
1
1

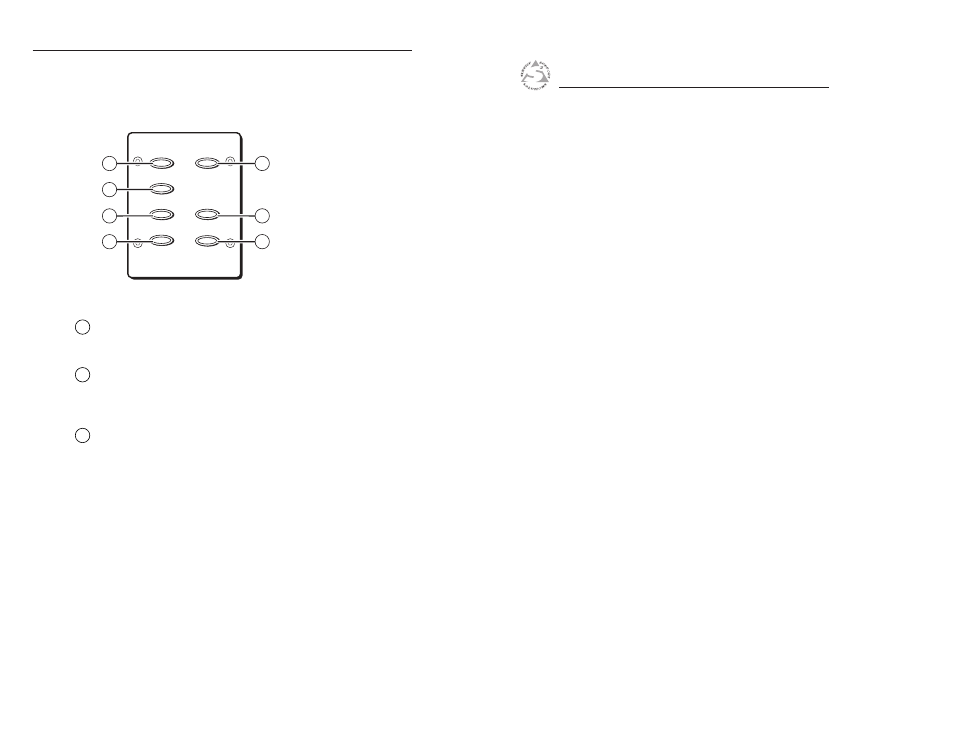

Figure 2-7 — Front panel
1 Input select buttons — The PC 1, PC 2, Video 1, and Video 2
buttons select video and audio inputs 1 through 4 on the TPT150
transmitter.
2 Projector Power button — The Projector Power button
commands the TPT150 transmitter to issue the projector power
on or off command. See the TPS150 manual, chapter 4, Serial
Communications, to specify the command(s) to be sent.
3 Volume Up and Down buttons — The Volume Up and Down
buttons command the TPT150 transmitter to increase and
decrease the output volume and input level.
Output volume —
Press and release the Volume Up or Down button to increase or
decrease the output volume by 1 dB per push of the button or
press and hold the button to ramp the output volume up or
down.
Input audio level —
1 . Press and hold the desired input select button.
2 . While you continue to hold the Input Select button, press
and release the Volume Up or Down button to increase or
decrease the selected input’s volume or press and hold the
button to ramp the selected input’s volume up or down.
3 . Release the input select button.
