CS 26T • Setup Guide (Continued)
Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron Asia
+65.6383.4400
Extron China
+86.21.3760.1568
Extron Korea
+82.2.3444.1571
Extron Europe
+31.33.453.4040
Extron Japan
+81.3.3511.7655
Extron Middle East
+971.4.299.1800
Extron India
+91.80.3055.3777
© 2013 Extron Electronics — All rights reserved. All trademarks mentioned are the property of their respective owners.
www.extron.com

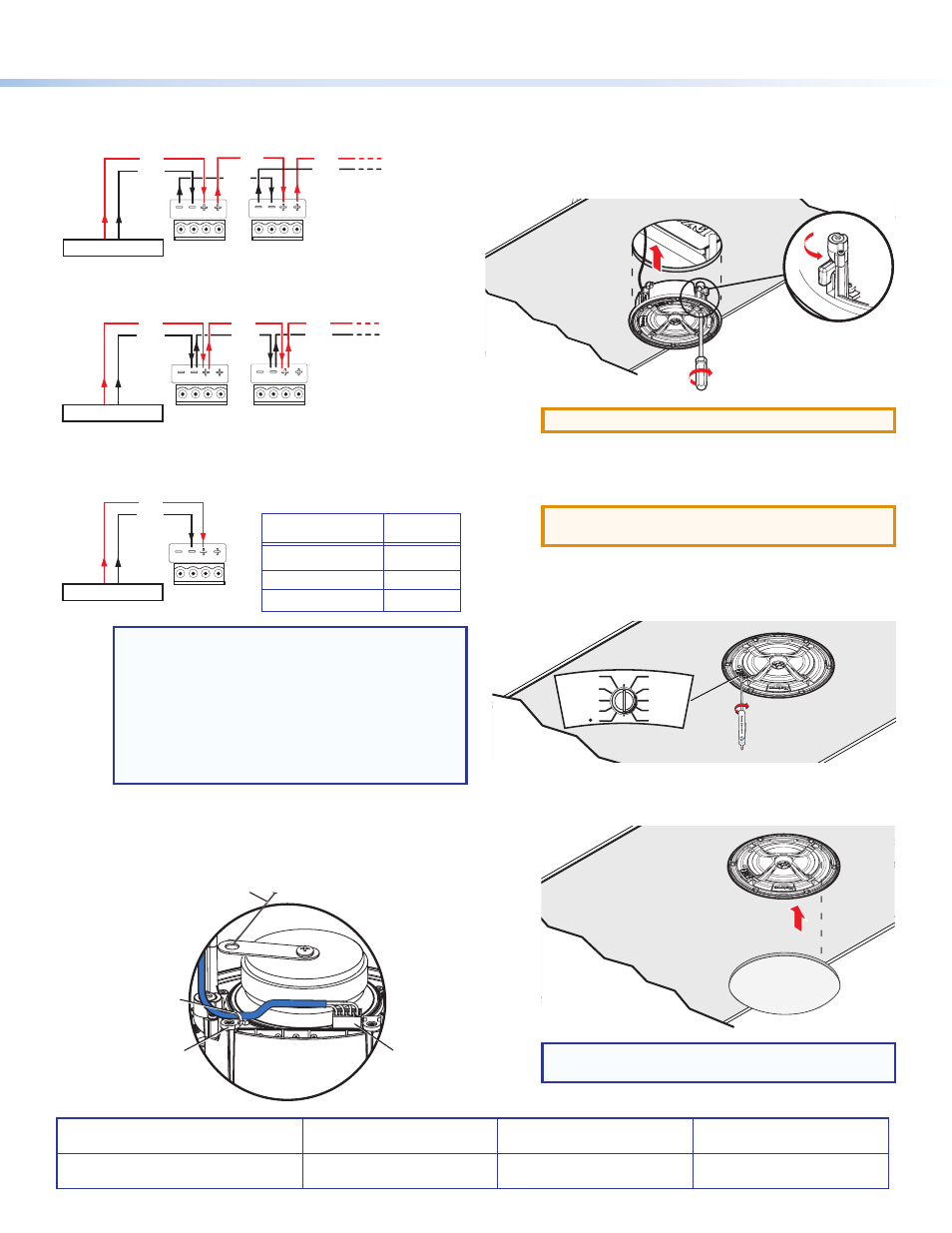

8.
Attach speaker wires from the ceiling tile hole to the
included 4-pole captive screw connector using one of
the following three methods:
Wiring Multiple Speakers in Parallel
When a chain of speakers is wired in this configuration,
disconnecting one speaker does not remove power from the
remaining speakers in the chain.
Wiring a Single Speaker
Wiring Multiple Speakers Using Loop-through
When a chain of speakers is wired in this configuration,
disconnecting one speaker removes power from all speakers.
Number of Wires per
Connection Point
Maximum
Wire Gauge
1 12 AWG
2 16 AWG
4 18 AWG
Wire Gauge Table
Speaker 1
Speaker 2
IN
–
LOOP
–
IN
+
LOOP
+
IN
–
LOOP
–
IN
+
LOOP
+
(Black)
(Red)
(Red)
(Red)
(Black)
(Black)
Power Amplifier
Speaker 1
Speaker 2
IN
–
LOOP
–
IN
+
LOOP
+
IN
–
LOOP
–
IN
+
LOOP
+
(Black)
(Red)
(Red)
(Black)
Power Amplifier
(Black)
(Red)
Speaker 1
IN
–
LOOP
–
IN
+
LOOP
+
(Red)
(Black)
Power Amplifier
a
b
c
NOTES:
•
See the wire gauge table above for the
maximum number of wires per terminal.
•
Do not tin the wires. Tinned wires do not hold
tight in the captive screws and can break
easily after several bends.
•
See the CS 26T and CS 120P User Guide for
detailed information on wiring configurations.
9.
Insert the captive screw plug into the four-pole
receptacle on the speaker crossover board.
10.
Secure the speaker wire to the strain relief
tie-down point, using the included zip tie.
Captive Screw
Connector
Strain Relief Tab
Zip Tie
Secondary
Support Line
11.
Mount the CS 26T.
a.
Insert the CS 26T through the bottom of the hole in
the ceiling tile that was cut in
b.
Tighten the four screws (clockwise) until the
speaker is securely clamped to the ceiling.
ATTENTION: Do not overtighten the screws.
12.
Attach secondary support lines if required (see the
figure in step
10). If using the CS 120P, see the CS 120P
Setup Guide for details.
ATTENTION: Do not allow any slack in the
secondary support line.
13.
Replace the adjacent tile that was removed in
14.
Set the rotary tap selector switch to the appropriate
setting, using a small screwdriver.
8W
16W
100
V
70
V
4W
2W
4W
2W
1W
8W
8Ω
8Ω
16W
15.
Install the grille. Position the outer perimeter of the
grille into the groove of the speaker baffle. Six magnets
pull the grille securely into place.
Speaker Grille
NOTE: Grille hooks are provided for removal of the
grille after installation.
