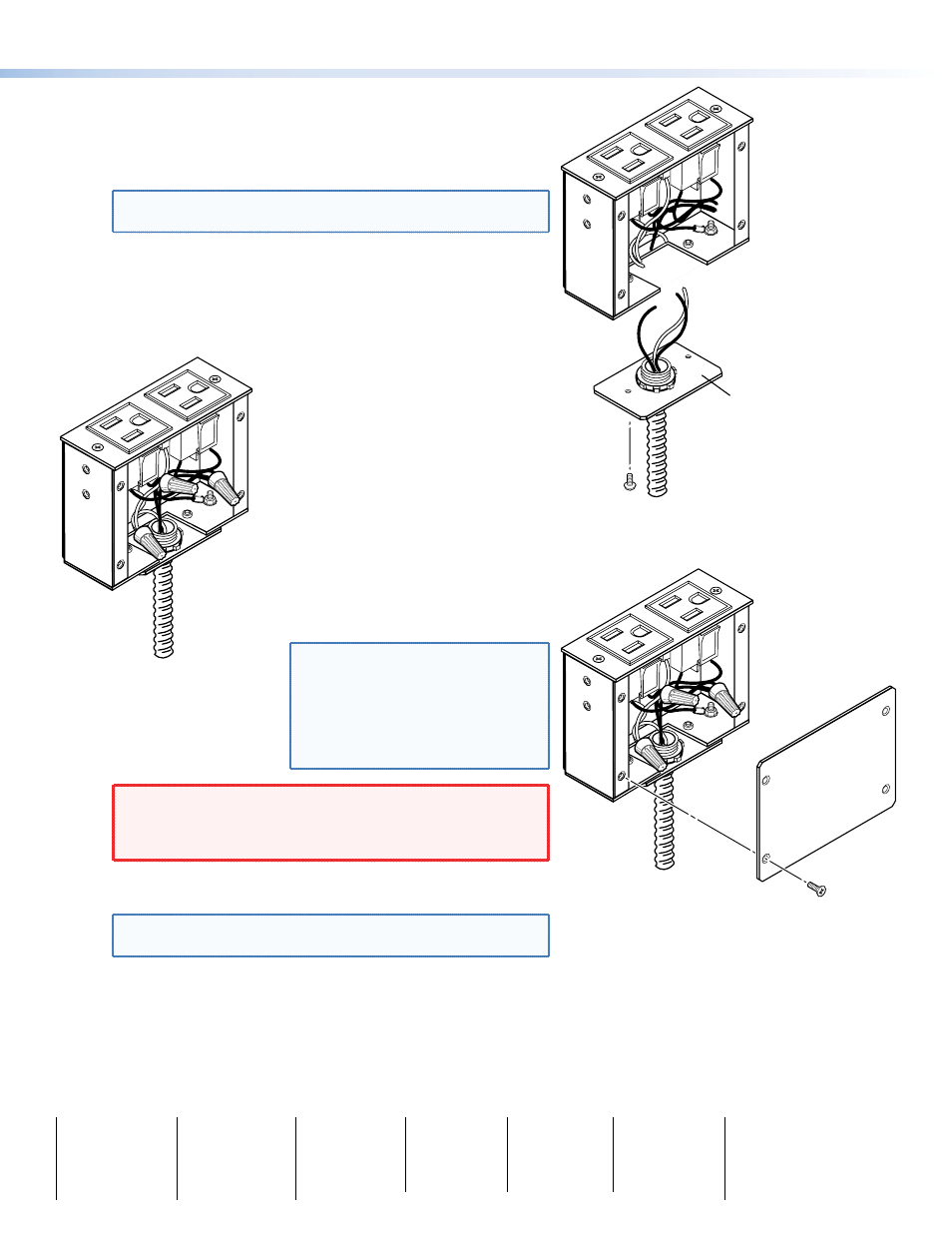

Installing the Replacement Cable

1.

Place the conduit plate from the Flexible Conduit Kit on the bottom side
of the power box. Insert the provided Philips head screws through the
conduit plate and engage the threads on the screws with the threaded
holes in the power box.

NOTE:

If necessary, reorient the conduit nut and wires for the best

fit.

2.

Tighten the screws to secure the conduit plate in place.

3.

Twist together the two supply (blue) wires (one from the power outlets
and one from the conduit assembly), the two return (brown) wires, and
the two ground (green/yellow) wires in the power box. Twist one of
the provided wire nuts onto each twisted pair.

4.

Use the provided tie wrap to bundle the
power cables.

5.

Gently tuck the power cables and wire
nuts into the power box.

6.

Place the side plate on the power box and
secure it in place with the Phillips head
screws removed in

Removing the Old

Cable

, step 2, on the previous page.

NOTE:

If the power box was installed

in a Cable Cubby, reinstall
the power box into the Cable
Cubby and, if necessary,
reinstall the Cable Cubby in the
table. See the applicable Cable
Cubby User’s Manual
.

WARNING

:

Ensure power is removed from the UL-listed AC

distribution box before connecting the power cable
and conduit. Lethal voltages are present in the AC
distribution box.

7.

Remove power from the AC distribution box.

NOTE:

Ensure the AC distribution box is rated for and equipped with

a 15-amp circuit breaker.

8.

Wire the free end of the AC power cable and conduit into the AC distribution box.
