BB 1 • Setup Guide (Continued)
14. Tighten the locking nut to secure the flexible conduit attached to the end plate in step 9.
15. Install the TouchLink panel (see Mounting the Touchpanel below).
New Construction Installation
To install the BB 1 at a new construction site, before the drywall is
secured to the studs:
1. If necessary, secure the end plates to the U-plate (see
steps 10 - 13 on the previous page)
2. Place the wall box in a suitable place with the tabs on the sides
of the box flat against a vertical stud (see figure 5).
3. Secure the wall box to the stud (metal or wooden) using two
nails or screws (see figure 5).
4. Run the flexible cable conduits to the box. Leave enough cable
to provide slack for installing the TouchLink panel.
The BB 1 accepts both 0.5 inch and 0.75 inch conduit.
5. Attach the flexible conduit to one of the end plates or to the free
side of the U-plate (see step 9 on the previous page).
6. Measure the position of the back box, and mark and cut a hole
in the drywall where the box is placed.
NOTES:
• The hole is 5.67 inches (14.4 cm) wide x 3.8 inches (9.7 cm) high.
• The tabs of the wall box must be in contact with the front surface of the stud and the inner surface of the drywall.
7. Secure the drywall to the studs.
Mounting the Touchpanel
For complete instructions about installing and calibrating the
TLP Pro 320M or TLP Pro 520M, see the TLP Pro 320M User
Guide or the TLP Pro 520M User Guide, at
www.extron.com .
1. Connect the cables to the back of the touchpanel (see the
user guide). Feed excess cable back into the conduit.
2. Test the connections and configure the touchpanel (see the
user guide).
3. Fold the locking arms into their recesses on the side of the
touchpanel and slide the unit into the back box.
4. Tighten the screws on the front of the wallplate adapter
to rotate and tighten the locking arms behind the top and
bottom plates of the back box and hold the wallplate adapter
in place (see figure 6). Do not overtighten the screws.
NOTE: As the locking arms tighten, they secure the
endplates of the BB 1 in place by clamping them
against the dry wall.
5. Snap the touchpanel into position (see figure 6).

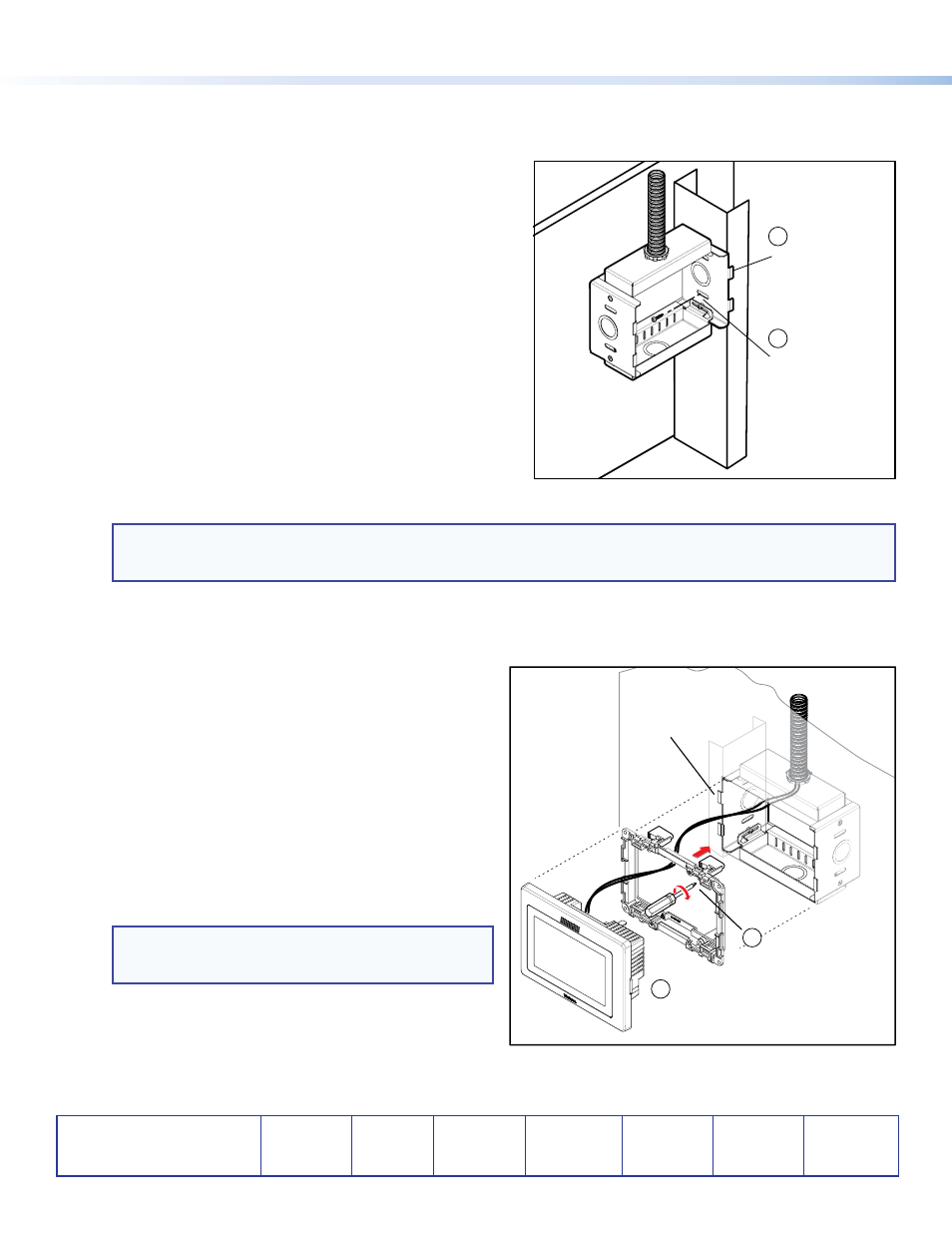

Mounting Screws (2)
3
2
Tabs are in contact
with the wall stud.
Extron BB 1
Wall Box
Figure 5.
Figure 6.
TLP Pro 520M snaps to wallplate adapter
(2 places on each side).
5
Tabs are against
outside surface
of wall stud.
4 Tighten screws to
rotate locking arms
and secure wallplate
adapter.
