Extron

®

AVTrac

®

Wall Trim Plate • User Guide

68‑1603‑01
Rev.

B

12 10

Extron USA - West
Headquarters

+800.633.9876
Inside USA and
Canada Only

+1.714.491.1500
+1.714.491.1517 FA

X

Extron USA - East

+800.633.9876
Inside USA and
Canada Only

+1.919.863.1794
+1.919.863.1797

FAX

Extron Europe

+800.3987.6673
Inside Europe Only

+31.33.453.4040
+31.33.453.4050 FAX

Extron Asia

+800.7339.8766
Inside Asia Only

+65.6383.4400
+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655
+81.3.3511.7656

FAX

Extron China

+400.883.1568
Inside China Only

+86.21.3760.1568
+86.21.3760.1566

FAX

Extron Middle East

+971.4.2991800
+971.4.2991880

FAX

© 2010 Extron Electronics All rights reserved.

www.extron.com

The wall trim plate is a finishing plate that compensates for any overcuts to the existing
gypsum wall during AVTrac installation. For complete information about installing AVTrac,
see the AVTrac User Guide, which is available online at

www.extron.com

.

Install the trim ring in place of, or behind, existing wall base trimmings as follows:

1.

Install the AVTrac system, as described in the AVTrac User Guide.

2.

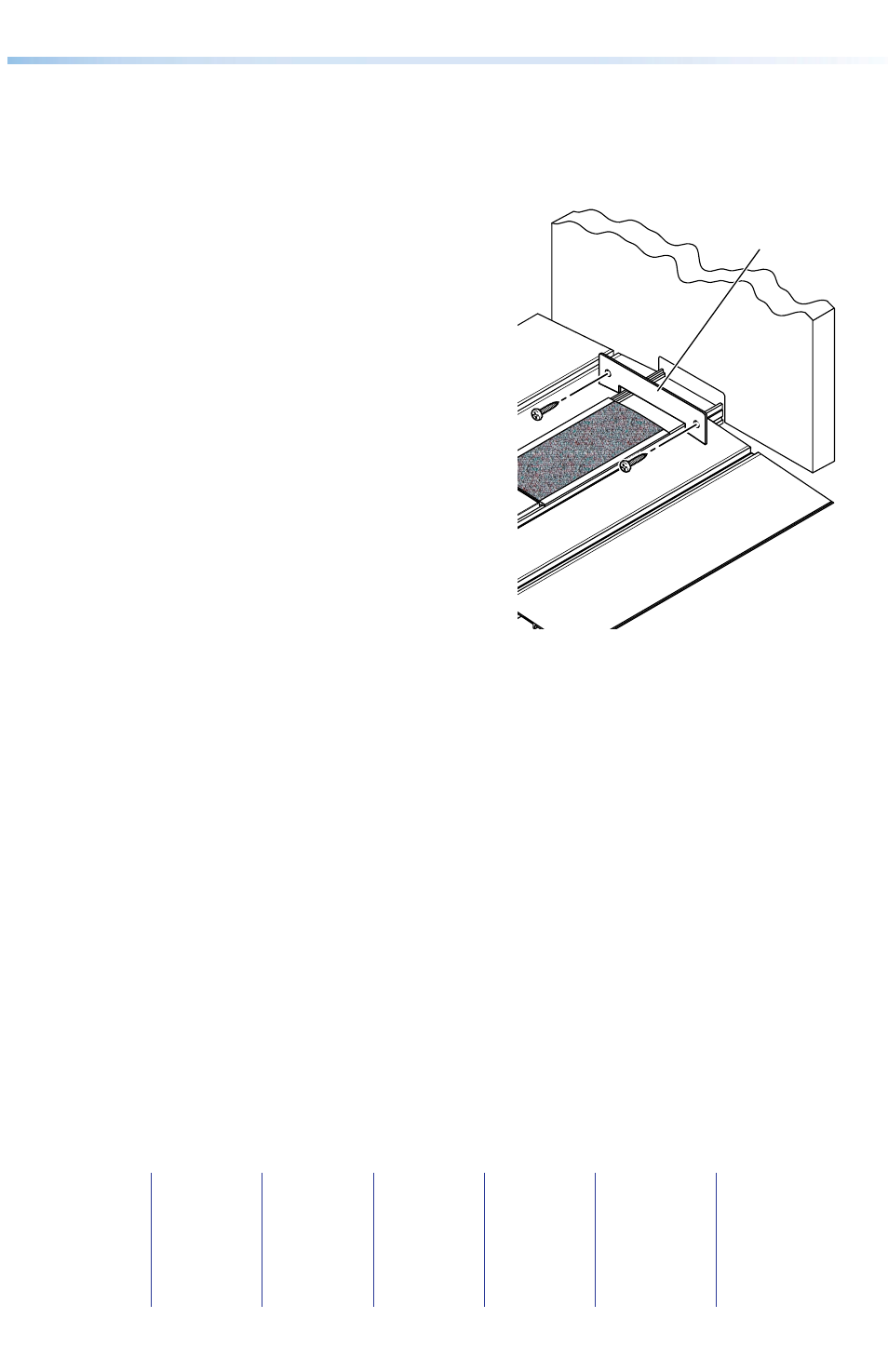

Before snapping the cover track in place and
covering the track with a carpet or rubber
strip, place the trim plate against the wall so
that it is seated on the AVTrac, covering the
overcut hole in the wall.

3.

Mark the position of the two holes in the
trim ring on the wall and, using the screws
provided, secure the trim plate to the wall.

4.

Snap the cover track in place and cover the
track and ramps with carpet, as described in
the AVTrac User Guide. If required, trim the
wall baseboard to fit snugly around the track
and attach it to the wall, over the trim plate.

Wall Trim Plate
