Extron Electronics AVTrac Extra Channel Kit User Manual
Page 2
68-1667-01
Rev. B
02 13
2
© 2013 Extron Electronics All rights reserved.
If the Extra Channel Track is Being Added to an Existing Installation

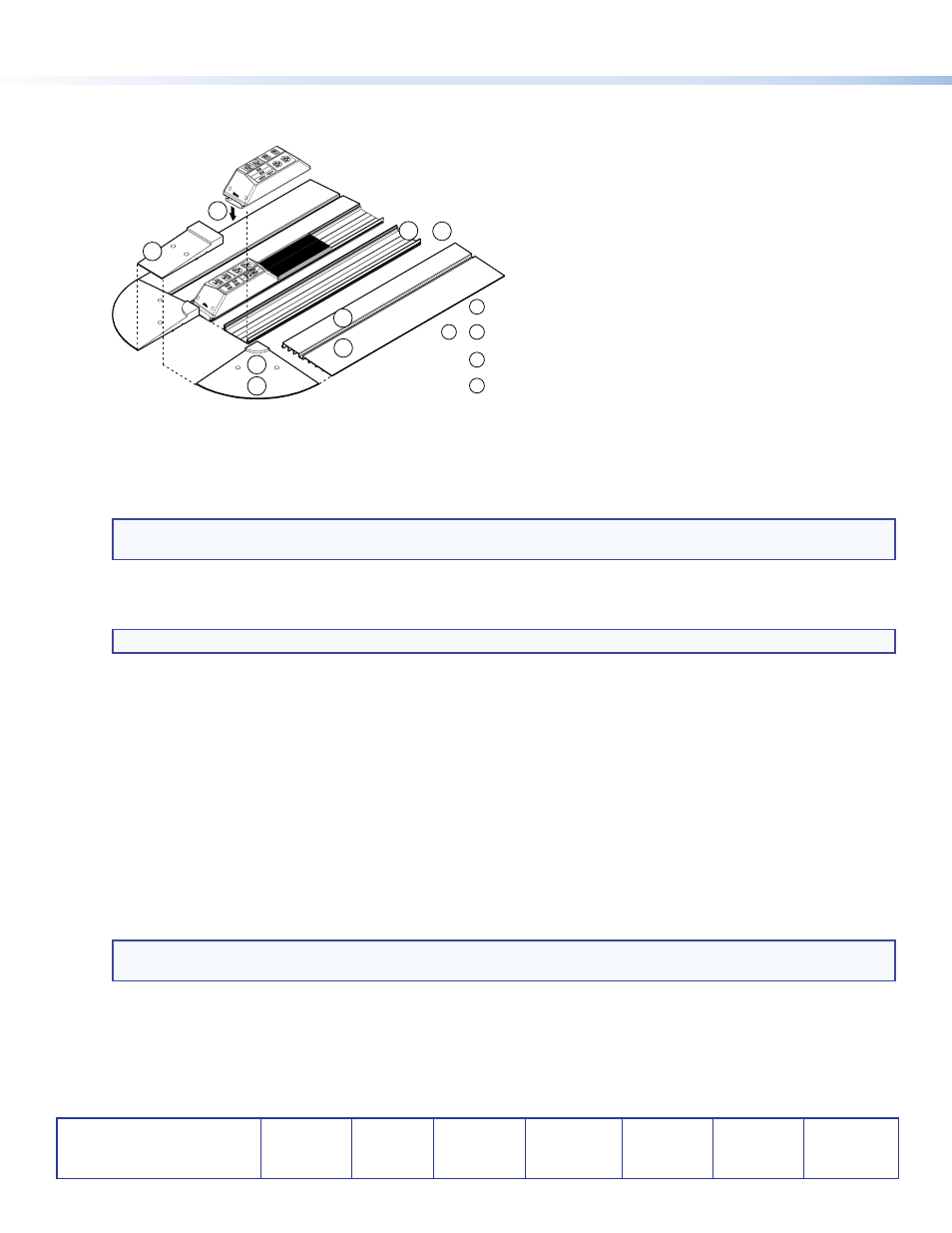

Follow these instructions to add an extra channel track to an existing AVTrac installation:
3
3
5
14
13
13
13
Remove side and end ramps from old installation.
Install second base track.
Install end filler ramp and replace side and end ramps.
Install the connectivity box.
3
5
11
13
14
to
to
11
1.
Decide which side of the existing track the extra channel will be added.
2.
Remove the carpet or carpet tiles from the end transition ramp and the ramps on the side where the extra channel will be
added.
3.
Remove the side ramps and the end transition ramp adjacent to the side ramps. Scrape away any residual adhesive from the
bottom of the ramps and from the concrete surface.
NOTE:
Remove the ramps and scrape away residual adhesive by following the instructions provided by the
manufacturer of the adhesive that was originally used to install the AVTrac.
4.
If necessary, widen the hole where the track meets the wall, for running cables.
5.
Lay the second track on the floor next to the first.
NOTE:
The tracks do not lock together; they sit side-by-side with no gap between them.
6.
Mark the position of the screws securing the base to the floor. See the AVTrac User Guide for information about spacing the
mounting holes (with or without accessories).
7.
Remove the base from the floor and use a 1/4 inch bit for drilling metal (not provided) to drill guide holes in the shallow
grooves in the base track, including those for any accessories.
8.
Place the track on the floor. Use the guide holes to mark where the holes will be drilled into the floor.
9.
Remove the track. Use the provided 5/32 inch masonry bit to drill holes 1¼ inches deep into the concrete floor. At this time,
also drill the holes for accessories.
10.
Remove any dust, using a vacuum cleaner.
11.
Secure the track to the floor, using the provided masonry screws. At this time, do not use the holes for the accessories.
12.
If the installation requires more than 4 feet of track, repeat steps 5-11 to extend the second channel of base track.
13.
Secure the side ramps, the end filler ramp, and the end transition ramps to the concrete floor.
14.
If required, install the connectivity box (see the AVTrac Connectivity Box User Guide
).
NOTE:
If you are installing a connectivity box at the end of each track, the horizontal top surface of each box (next to the
double AAP slot) must face the center and the angled surface (next to the triple AAP slot) must face outwards.
15.
Complete the installation as described in the AVTrac User Guide.
