Page 18

WARNING:
Make certain that the internal pressure is relieved before you continue.
Failure to follow these instructions can result in serious personal injury
and/or property damage.
11. Remove the volute capscrews and remove the pump assembly from the volute.

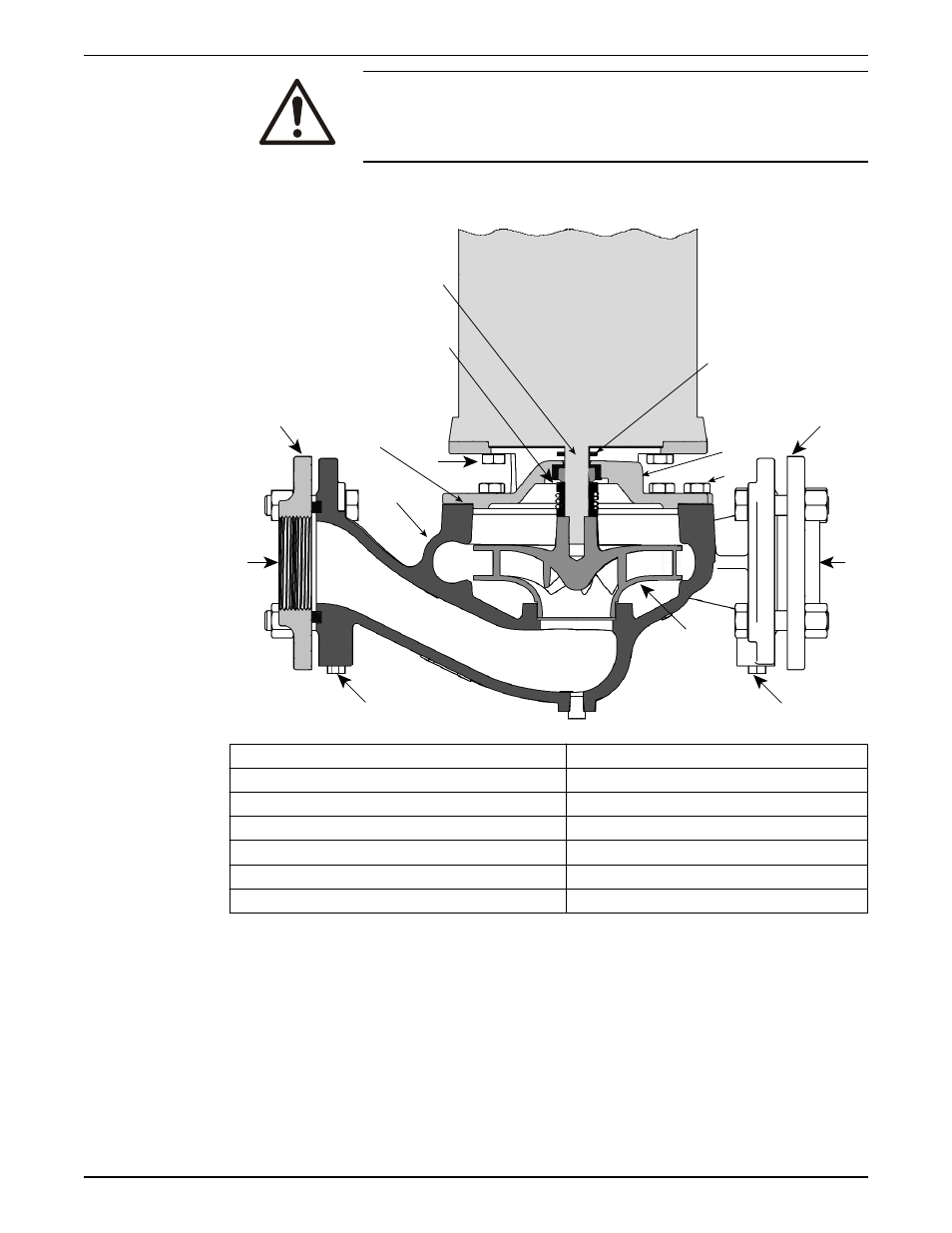

Typical cross section
1
6
5
10
7
8
2
13
9
4
12
11
6
10
3
1. Shaft
8. Volute
2. Slinger
9. Motor capscrew
3. Bracket coverplate
10. Gauge tapping
4. Volute capscrew
11. Suction
5. Discharge
12. Volute gasket
6. Companion flange
13. Seal assembly
7. Impeller
Figure 2: Typical cross section
Remove the seal assembly for all sizes
1. Remove the motor assembly from the system.
2. Remove the plug or cover from the motor rear end plate. This will allow access to the
end of the motor shaft. A slot or wrench flats are provided on the end of the shaft to
retain the shaft during assembly and disassembly.
3. Using a large screwdriver or an end wrench to hold the shaft and a strap wrench on
the impeller, turn the impeller counterclockwise to remove it from the motor shaft.
The impeller is held in place with Loctite and torque.
Maintenance
16
Series e-90 Close-Coupled In-Line Centrifugal Pumps Installation, Operation, and Maintenance Manual
