2.1.5.3 Three Connected Units and One Common Display
This example illustrates connection and ID configuration of for example three
MagFlux units without display, one common, remote display unit with a com-
munication module and a PLC unit.
GND
B
A
GND
GND RS485
Termination OFF ON GND GNDB
PCB no.: 510327-xxx
Communication RS485
3V3 5V5
5V
RTS
Rx Tx 3V3
GND
B
A
GND
GND
RS485
Termination OFF
ON
B
A
GND
PE
PLC
MagFlux #1
MagFlux #3
MagFlux #2
Display unit
with COM module

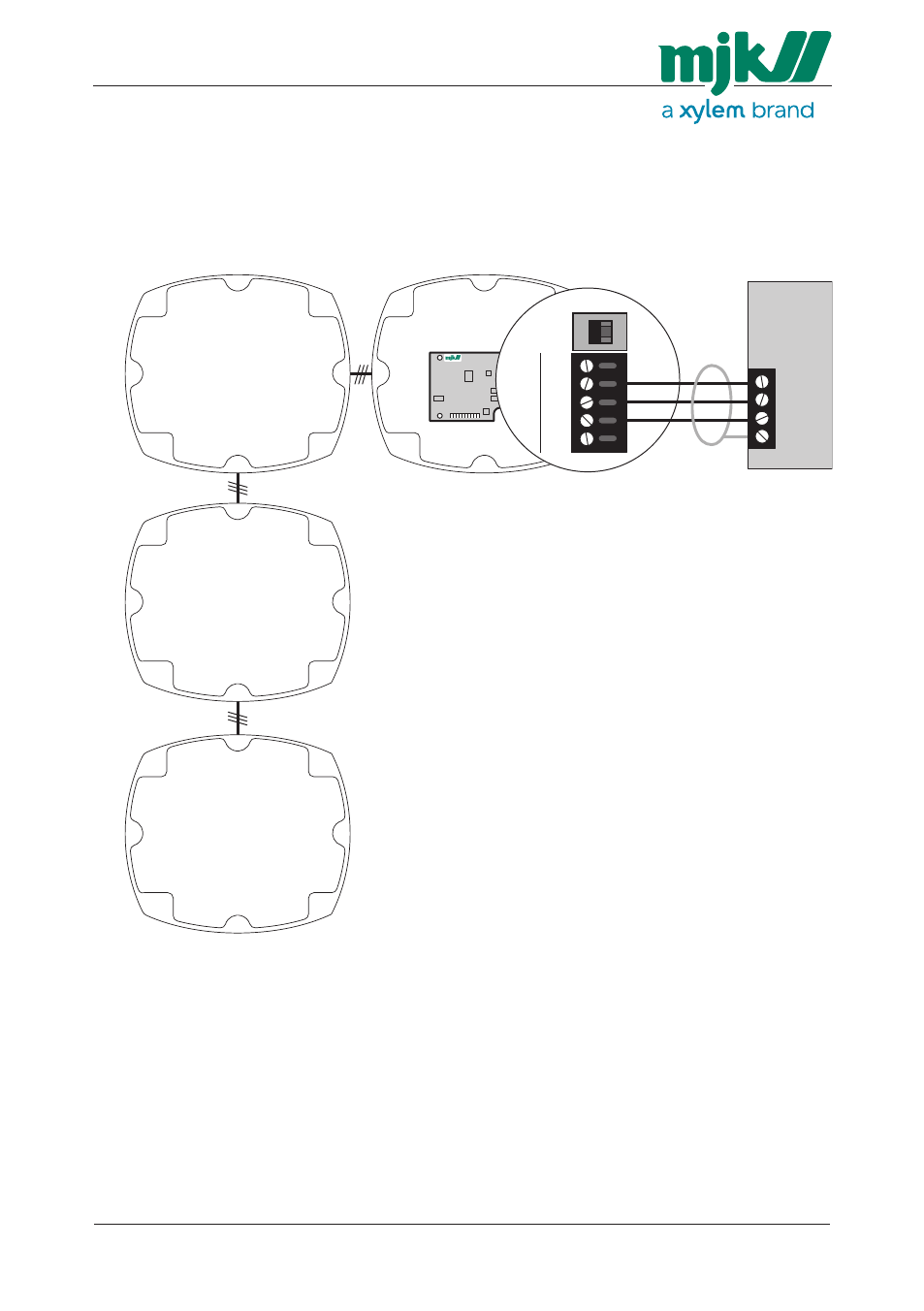

Figure 5. Three Connected Units and One Common Display Unit
Exampe ID settings
If Magflux #1 has ID=1 (seen from the com module), and the com module has
ID offset=100, the SRO Modbus ID is 101 (100 + 1) seen from the PLC.
Likewise the other MagFlux units with ID=2 and ID=3 would have the SRO
Modbus IDs 102 and 103.
