- 6 -
Mounting
Make panel cutout to dimension shown in Figure 2.0.
Install both mounting clamps and insert the case into panel cutout.

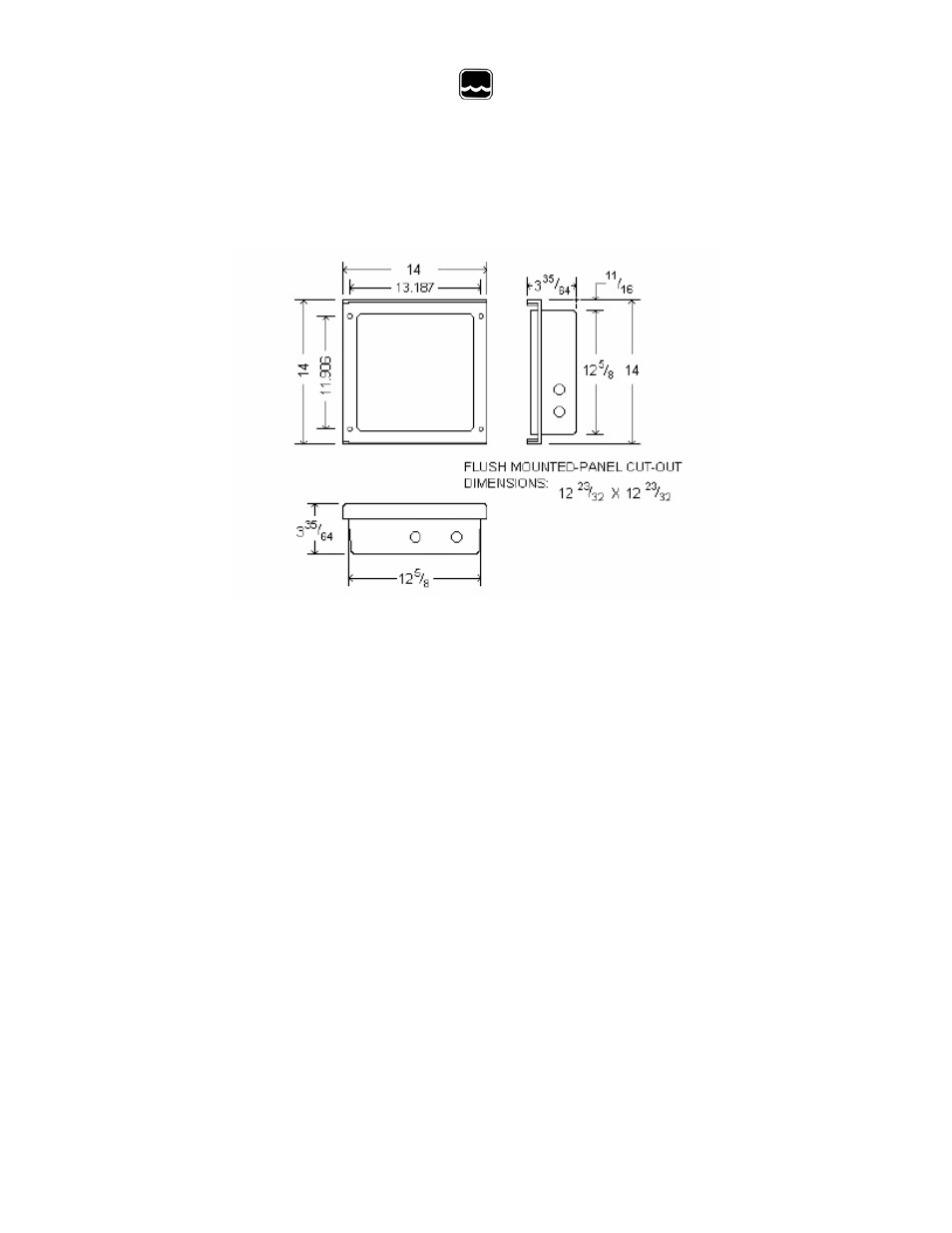

Figure 2.0 Mounting Diagram
Case Location
Upon unpacking, find a suitable location to mount the recorder before wiring power to
the unit. Refer to Wiring Precautions (Page 8). After the recorder has been connected to
the main AC power supply, connect the battery (optional) to the battery strap and place
the battery in its holder.
Select a location that is well lighted, free from dust, dirt, or corrosive fumes. The
instrument should not be located near any sources of heat or be subject to sudden or
extreme temperature changes. It should be mounted on a rigid support that is not subject
to vibration. Refer to Figure 2.0 for recorder case dimensions.
