Simple RS-232 Menu Interface 4-7

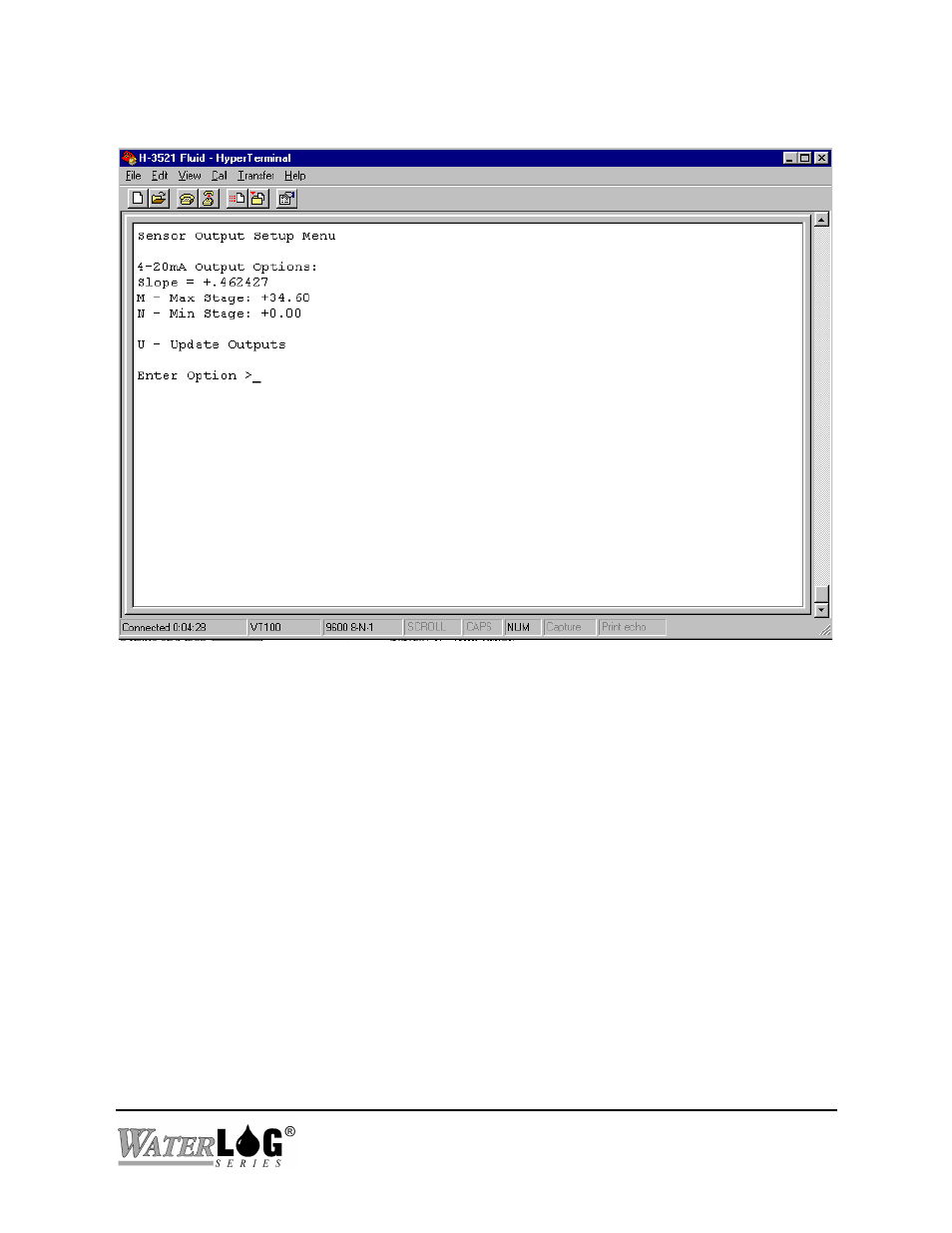

4.5 Sensor Output Options Menu
This setup menu is for viewing and editing the current settings of the 4-20mA output.
4.5.1 Slope
This is the current slope that the H-3521 has calculated based on the max and min stage
values.
4.5.2 M - Max Stage
This setting is the stage value (high) that corresponds to a 20mA output. The following
message is displayed.
Enter 4-20mA Max Stage[ ]
Enter the desired Stage value which corresponds to a 20.00mA output and press ENTER
to submit the value. Refer to Chapter-5 for more details about this setting
4.5.3 N - Min Stage
This setting is the stage value (low) that corresponds to a 4.0mA output. The following
message is displayed.
Enter 4-20mA Min Stage[ ]
