16

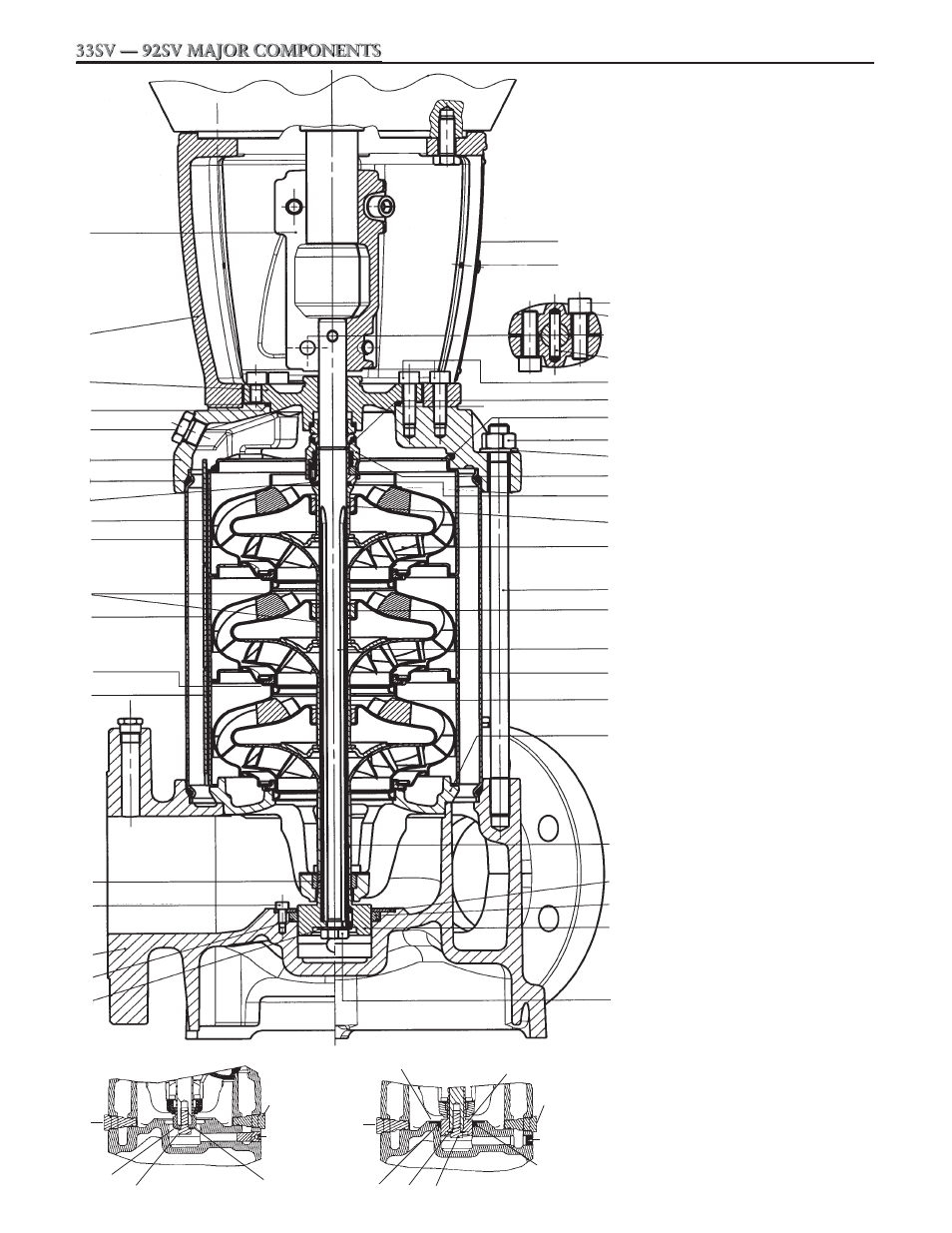

1 O-Ring, Piston Seal
2 O-Ring, Mechanical Seal
3 O-Ring, Seal housing
4 O-Ring, Sleeve
5 Mechanical Seal
5A Cartridge Seal (not shown)
6 Screw, Guard
7 Screw, Piston Holding Disc
8 Screw, Coupling
9 Screw, MA and Seal Housing
10 Screw, Impeller
11 Washer, Coupling
12 Washer, Impeller
13 Pin, Coupling
14 Plug, with Piston
15 Plug, without Piston
16 Plug, Fill
17 Plug, Vent (not shown)
18 Plug, Drain
19 Pump Head
20 Impeller, Full Diameter
21 Impeller, Reduced Diameter
22 Lower Bearing Assembly
23 Piston
24 Diffuser, Final
25 Diffuser with Carbon Bushing
26 Diffuser with Tungsten Bushing
27 Outer Sleeve, 25 Bar
27A Outer Sleeve, 40 Bar
28 Holding Disc, Piston Seal
29 Seal Housing
30 Spacer, Impeller Final
31 Spacer, Shaft Bushing
32 Spacer, Impeller
33 Spacer, Impeller Lower (66-92SV)
34 Bushing, Non-Piston
35 Tungsten Carbide Bushing
36 Coupling Guard
37 Shaft
38 Mechanical Seal Shaft Sleeve
39 Wear Ring, Impeller
40 Piston Seal
41 Stop Ring, Impeller
42 Pump Body
43 Motor Adapter Plate (not shown)
44 Motor Adapter
45 Coupling, Half
46 Nut, Tie-Rod
47 Tie-Rod
48 Washer, Tie-Rod
49 Spring, Final Diffuser
45
44
29
3
19
4
38
24
31
26
25
36
6
11
13
9
41
49
46
48
5
2
30
20
35
37
32
22
21
47
28
40
23
10
33
35
7
42
1
12
30
16
39
27
27A
3
8
18
12
10
34
15
18
LESS PISTON
18
12 10
40
14
18
28 23
1
WITH PISTON
