14
Key Description Key Description Key Description
1 Casing 37 Key, Impeller 96 Gasket, Diecut
2 Pipe Plug 38 Shaft 106 Ring, Retaining
4 Locknut, Impeller 39 Key, Coupling 107 Shim, Bearing
5 Washer, Curved, Impeller 42 Lip Seal 108 Ring, Retaining
7 O-Ring 44 Lockwasher 109 O-Ring, Molded
8 Gasket, Diecut 45 Capscrew 110 Carrier, Bearing
10 Seal Housing 46 Diffuser 111 Hexnut, Jam
17 Seal, Single Mechanical 49 Gasket, Diecut 112 Jackscrew
27 Pipe Plug 50 Inlet, Suction 117 Bearing, Rear
28 Pipe Plug 51 Valve, Check 118 Screw, Shouldered
29 Oiler, Optional 53 Keeper 130 Adaptor, Plate
30 Vent, Filter 63 Slinger 132 Cover, Casing
31 Housing, Bearing 67 Bracket 133 Capscrew
35 Foot, Mounting 92 Impeller, Open 134 Lockwasher
36 Bearing, Front 93 Gasket, Diecut
* Recommended Spare parts
• Recommended Distributor Stock, Export Spares and Critical Service.
50 51 53 118 93 132
111
112
42
38
39
27
108
107
45
44
35
7 46 37 91 10 1 96 67 42 27 36 30 31 130 117 109 110 106
2 4 133 134 8 5 49 63 27 29, 27 28 28 17
Repair Parts (Continued)

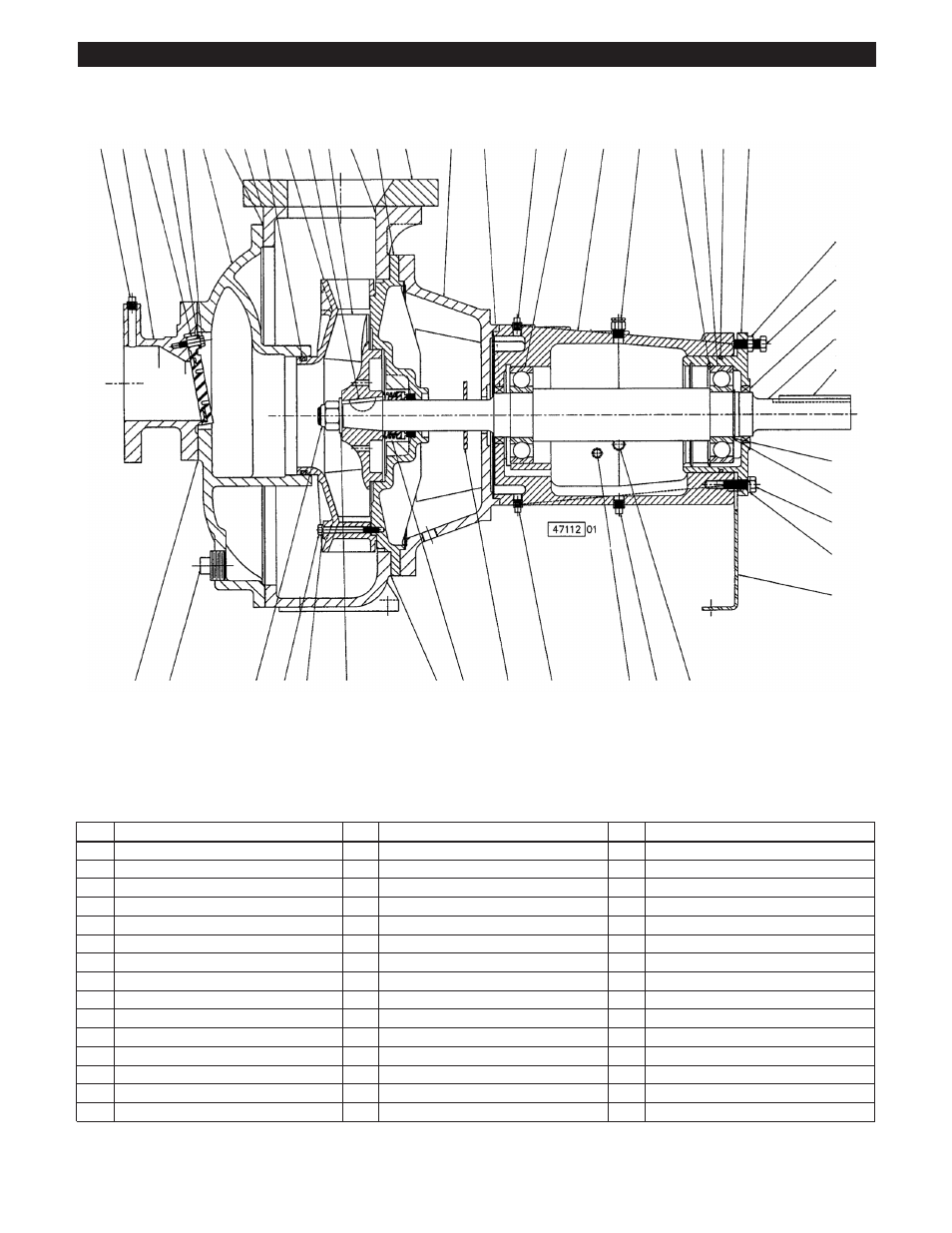

PRIME LINE CROSS SECTION – 4E, 6E
