Xylem IM191 R03 Marlow Series Prime Line Self-Priming Centrifugal Pumps - Manual (Page 11)

11
Repair Parts

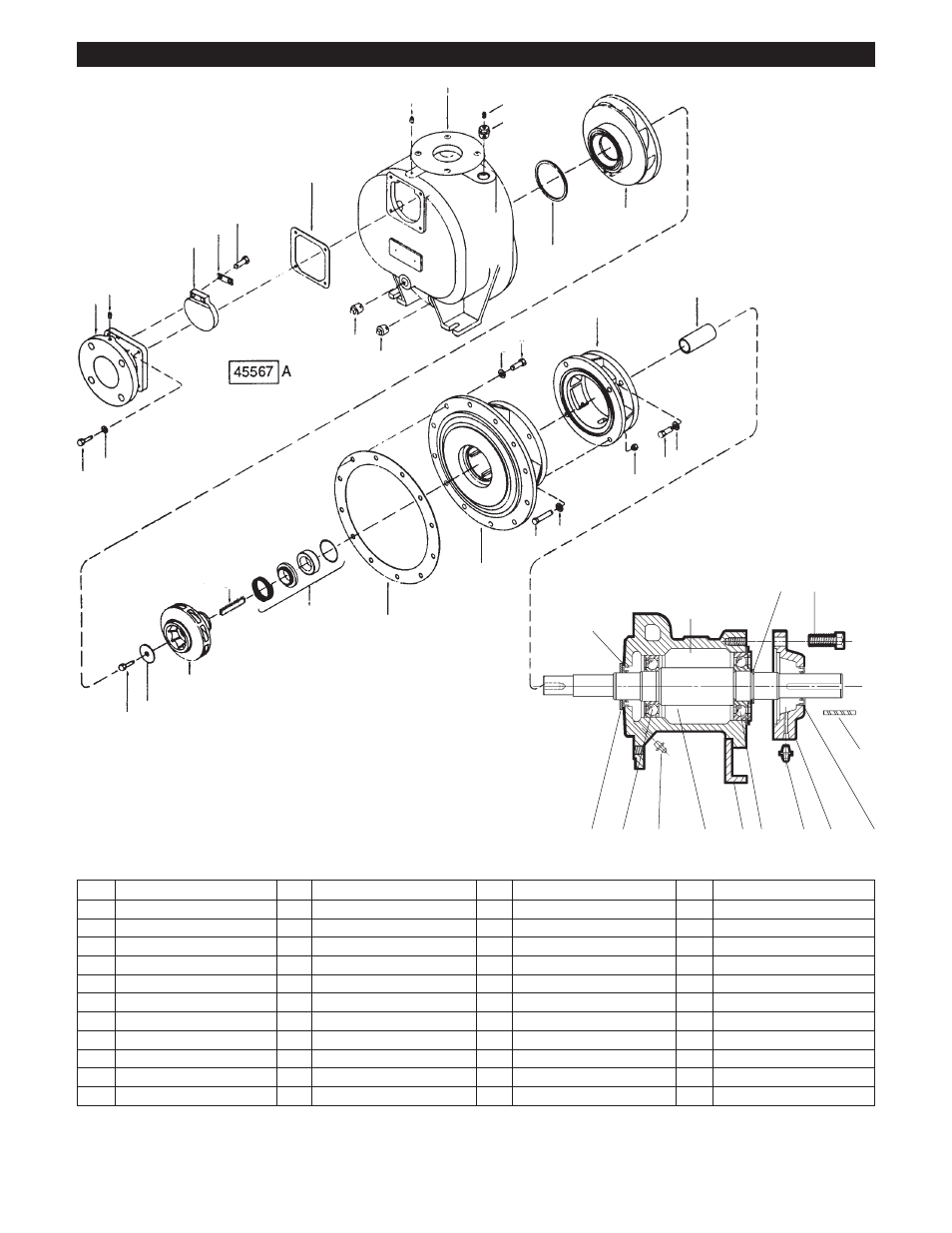

PRIME LINE FRAME MOUNT REPAIR PARTS – 2P, 3P, 4P
Key Description Key Description Key Description Key Description
1 Casing 32 Lockwasher 57 Capscrew 129 Bushing
2 Pipe Plug 33 Capscrew 58 Lockwasher 74 Ball Bearing
4 Bolt, Impeller *37 Key, Impeller 64 Hexnut 75 Grease Fitting (ML)
5 Washer, Impeller 46 Diffuser 65 Capscrew 76 Shaft
•6 Impeller 47 Capscrew 66 Lockwasher 77 Foot
*7 O-Ring 48 Lockwasher 67 Adapter, Motor 78 Ball Bearing
*8 Gasket, Diecut *49 Gasket, Diecut 68 Stud 79 Grease Fitting (ML)
10 Seal Housing 50 Inlet, Suction 69 Lip Seal 80 Bearing Cover
•17 Seal, Single Mech •51 Valve, Check 70 Bearing Frame 81 Lip Seal
*24 Sleeve, Shaft 53 Keeper 71 Retaining Ring 82 Key
27 Pipe Plug 54 Shoulder Bolt 72 Hex Head Cap Screw
* Recommended Spare parts
• Recommended Distributor Stock, Export Spares and Critical Service.
69
70
71 72
63 74 75 77 78 79 80 76 81
82
66
65
64
32
33
10
17
8
6
5
4
57
58
2
2
48
47
67
24
46
7
129
27
27
49
54
53
51
27
50
37
