Operating Lights and Fault Overview
Ready for operation = Steady green light
Fault = Red light
Pump running = Flashing green light
The alarm output is opened when a fault occurs.
Operating Green Lamp Red Cause Solution
Off Off Mains plug not plugged in Insert plug
Power failure Check mains and fuse
Flashing Flashing Dry-run (Poss. air in tank) Pump restarts automatically after one minute
On Flashing Pump blocked Visual inspection of the pump inlet in the
tank and removal or rinsing of dirt or foreign
bodies
On On Level exceeds alarm level Pressure hose / non-return valve blocked
(clean or remove kink if applicable)
Off Flashing Pump blocked and alarm level Visual inspection of the pump inlet alarm
exceeded level exceeded in the tank and removal
or rinsing of dirt or foreign bodies;
WARNING: Work on electrical parts of the LS Condensate
Pump may only be performed by qualified electrical
professionals.
Warranty
WARNING: The LS Condensate Pump must be disconnected from the mains power supply before maintenance
or disassembly!
Malfunctioning condensate pumps can be returned to the manufacturer’s address. The manufacturer will refuse to
accept packages with unpaid shipping or invoices for repair. The manufacturer guarantees the LS condensate pump for
two years subject to correct installation and proper use of the device.
Product Disposal
This product and parts thereof must be disposed of in an environmentally friendly way. Corresponding local regulations
must be observed.

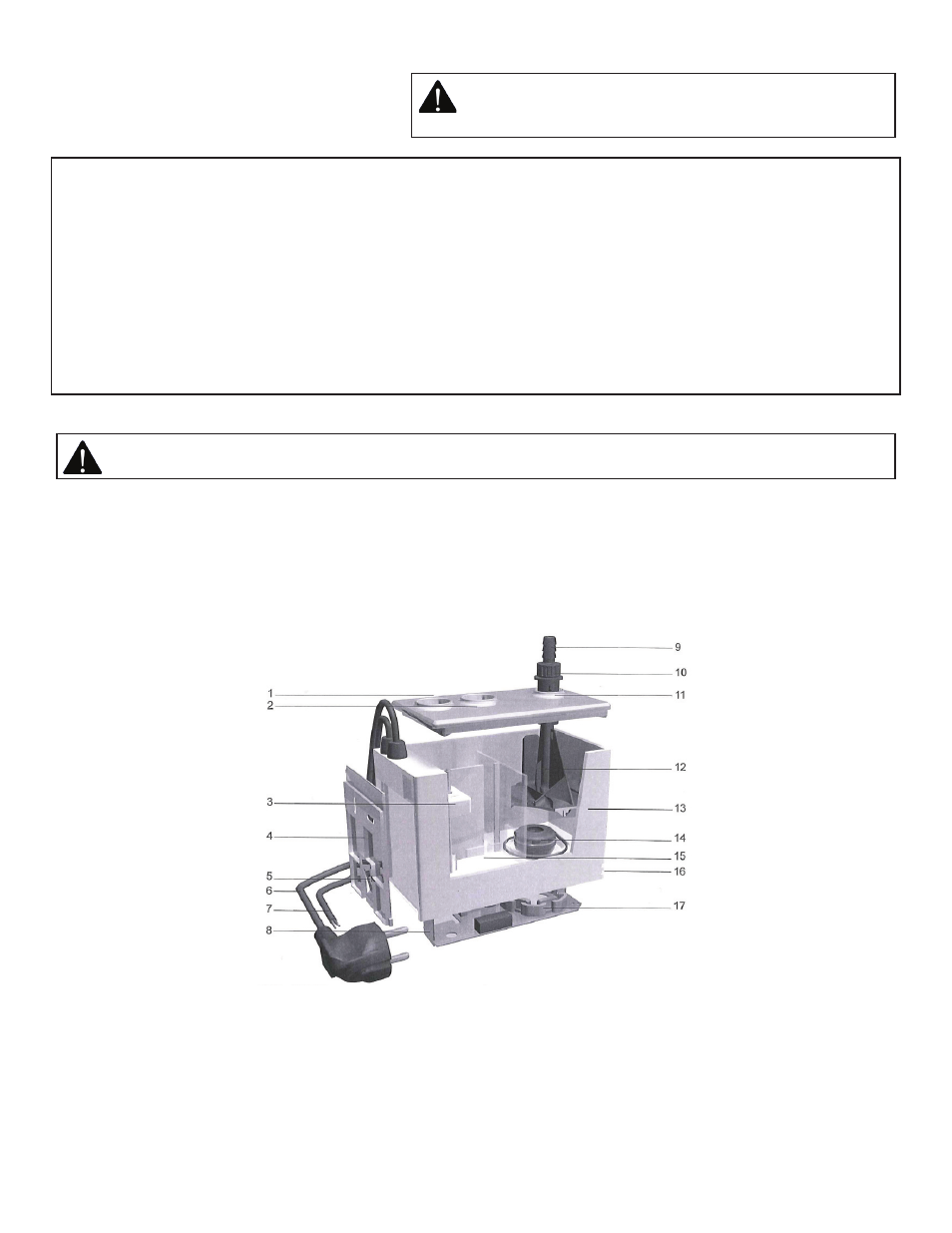

Product Breakdown
1. Condensate inlet (.95” 24mm)
2. Additional inlet opening (6.95” 24mm)
3. Magnet float
4. Mounting bracket (for rear wall or left side wall)
5. Clip
6. Main cable (6.5ft 2m) with shock-proof plug
7. Alarm connection cable (floating, 6.5ft 2m)
8. Non-contact electronic fill level detection with echo sensors
9. Connection for pressure hose (.55”x .08”, 19ft)
10. Non-return valve with bayonet connection
11. Opening for non-return valve
12. Pressure nozzle
13. Tank (0.7l; usable volume 0.5l)
14. Permanent magnetic rotor/impeller
15. Pump sump
16. Operating LEDs
17. Stator of the high-efficiency spherical motor pump
