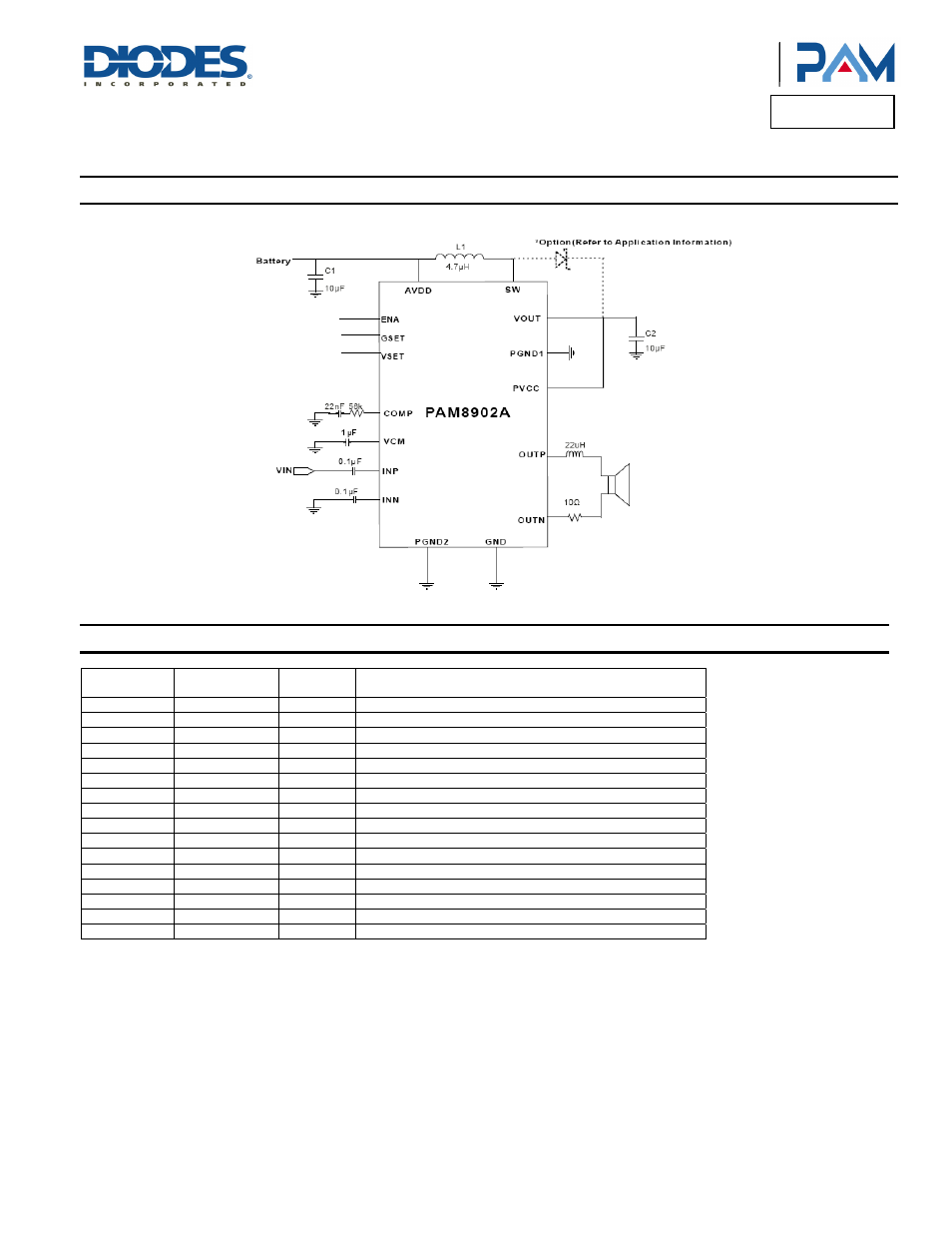

Typical Applications Circuit
Pin Descriptions
Bump
(CSP)
Pin Number
(QFN)
Pin
Name
Function
A1 13 PVCC Audio Amplifier Power Supply
A2 1 VOUT Boost Convertor Output
A3 2 SW Boost Convertor Switching Node
A4 4 PGND1 Boost Convertor Power Ground
B1 15 OUTP Positive Differential Audio Output
B2 3 VSET Boost Convertor Output Voltage Setting(8V,12V,17.5V)
B3 5 COMP Boost Convertor Compensation
B4 6 AVDD Power Supply
C1 14 OUTN Negative Differential Audio Output
C2 11 GSET AmplifierGain Setting. (Refer to "Application Notes")
C3 7 VCM Common Mode Bypass Cap
C4 8 AGND Analog Ground
D1 13 PGND2 Class D PowerGround
D2 12 ENA Whole Chip Enable
D3 10 INN Negative Differential Audio Input
D4 9 INP Positive Differential Audio Input
