PAM8303C
Document number: DSxxxxx Rev. 1 - 2
2 of 17
www.diodes.com
June 2013
© Diodes Incorporated
PAM8303C
A Product Line of
Diodes Incorporated

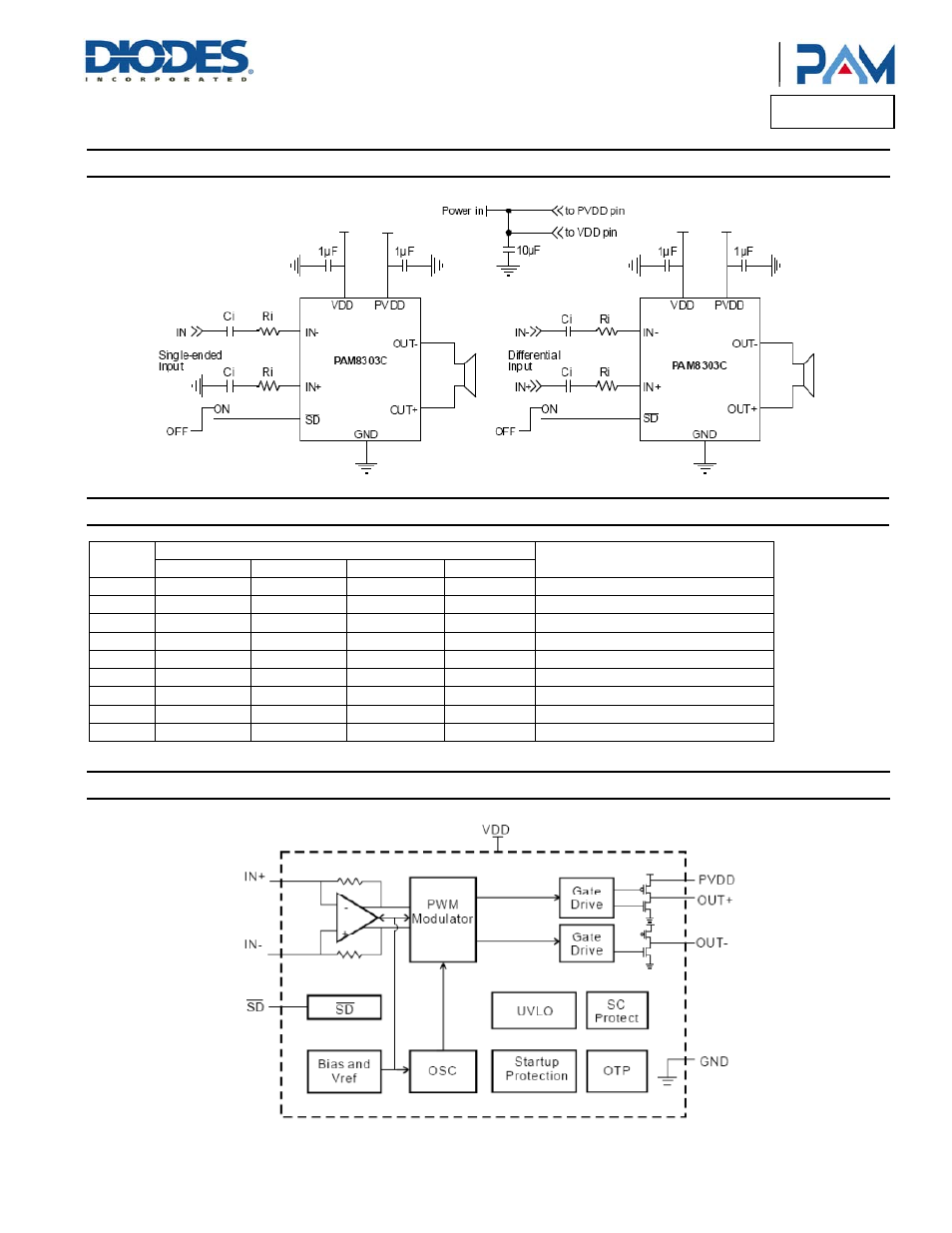

Typical Applications Circuit
Pin Descriptions
Pin
Name
Pin Name
Function
WCSP(A) DFN3X3-8 (B) DFN3X3-8 (C) MSOP-8 (B)
OUT+ C3 1 5 1 Positive BTL Output
PVDD B2 2 — 2 Power Supply
VDD B1 3 6 3 Analog Power Supply
IN- C1 4 4 4 Negative Differential Input
IN+ A1 5 3 5 Positive Differential Input
SD C2 6 1 6 Shutdown Terminal (active low)
GND A2, B3 7 7 7 Ground
OUT- A3 8 8 8 Negative BTL Output
NC — — 2 —
Functional Block Diagram
