PAM8303C
A Product Line of
Diodes Incorporated
ULTRA LOW EMI, 3W FILTERLESS
MONO CLASS-D AUDIO POWER AMPLIFIER
Description
The PAM8303C is a 3W mono filterless Class-D amplifier with high
PSRR and differential input that eliminate noise and RF rectification.
Features like 90% efficiency and small PCB area make the
PAM8303C Class-D amplifier ideal for cellular handsets. The filterless
architecture requires no external output filter, fewer external
components, less PCB area and lower system costs, and simplifies
application design.
The PAM8303C features short circuit protection and thermal
shutdown.
The PAM8303C is available in 9-ball WCSP, MSOP-8 and DFN 3x3
8-pin packages.
Features

Ultra Low EMI, -20dB Better Than FCC Class-B @ 300MHz

High Efficiency up to 90% @1W with an 8 Ω Speaker
 Shutdown Current <1µA

3W@10% THD Output with a 4 Ω Load at 5V Supply

Demanding Few External Components
 Superior Low Noise without Input

Supply Voltage from 2.8V to 5.5V

Short Circuit Protection
 Thermal Shutdown
 Available in Space Saving Packages: 1.45mmx1.45mm
WCSP9, MSOP-8, DFN3x3-8
 Pb-Free
Package
Applications
 Cellular Phones/Smart Phones
 MP4/MP3
 GPS

Digital Photo Frame
 Electronic
Dictionary
 Portable
Game Machines

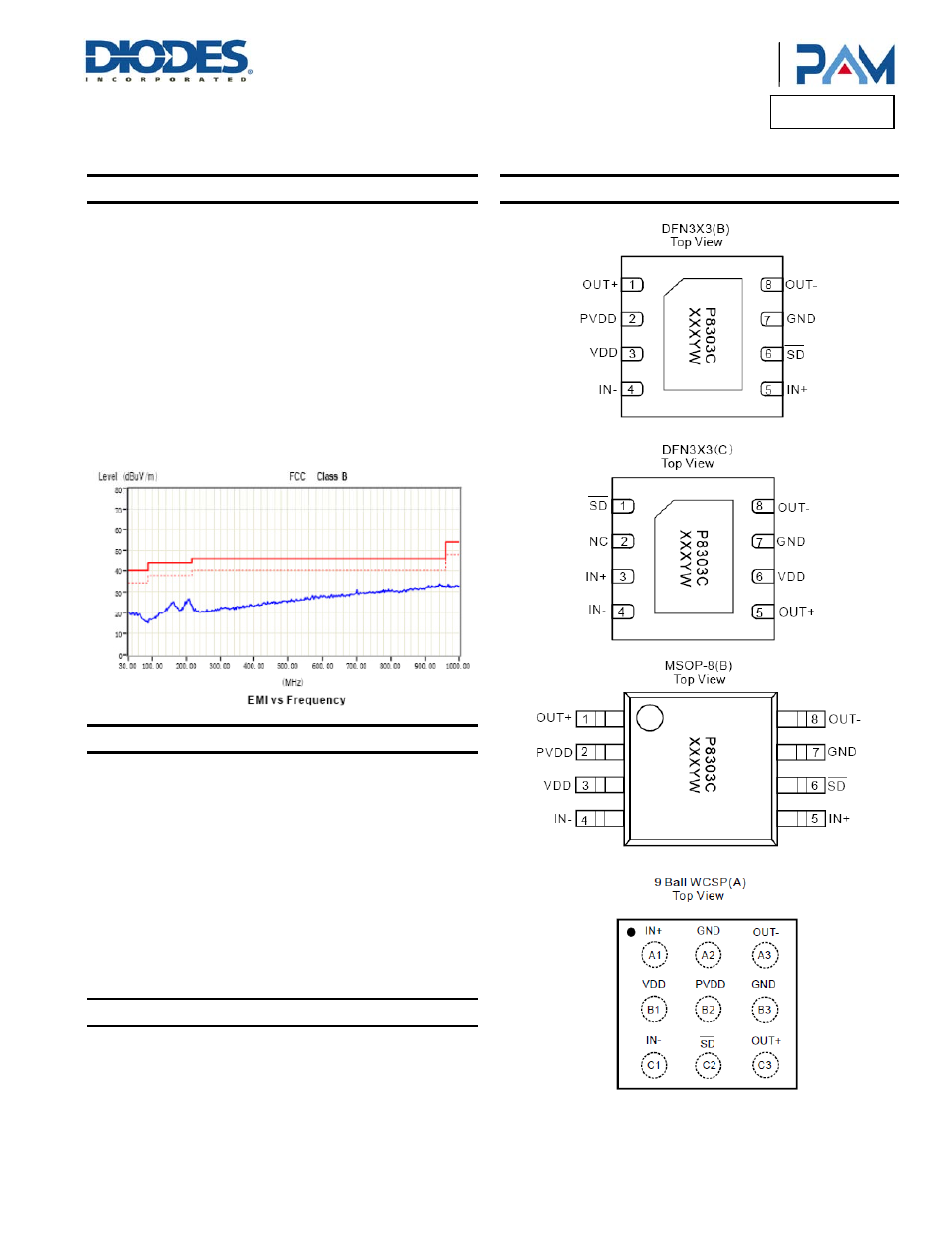

Pin Assignments
