Performance Characteristics
(@ TA=25°C, VDD=5V, Gain=18dB, RL=L(33μH)+R+L(33μH), unless otherwise noted. )

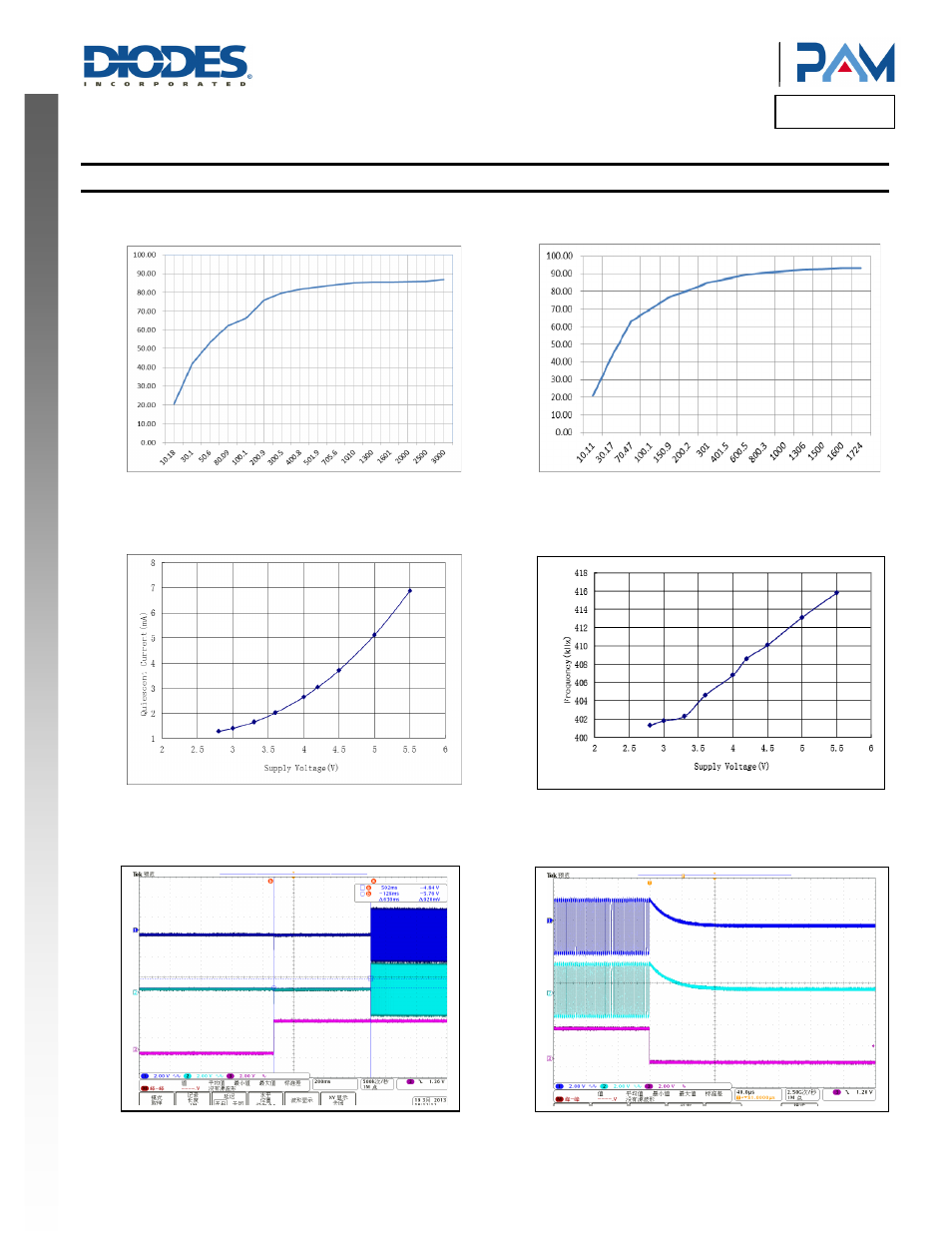

Efficiency Vs. Output Power (RL=4 Ω) Efficiency Vs. Output Power (RL=8Ω)
Quiescent Current Vs. Supply Voltage OSC Frequency Vs. Supply Voltage
Start-up Response Shutdown Response
