PAM8013/PAM8015
Document number: DS36979 Rev. 2 - 2
8 of 9
www.diodes.com
May 2014
© Diodes Incorporated
PAM8013/PAM8015
NEW PROD
UC
T
A PRODUCT LINE OF
DIODES INCORPORATED

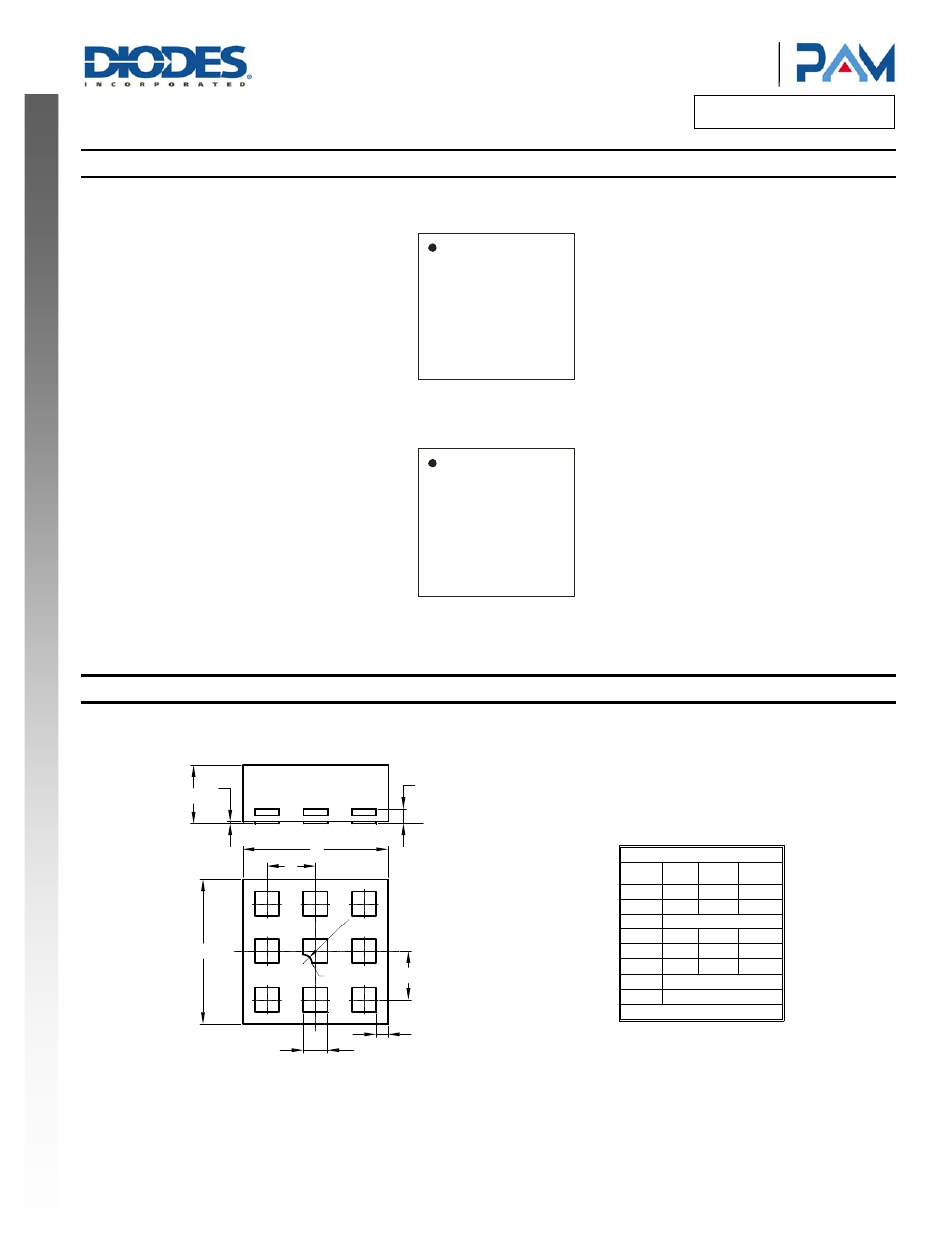

Marking Information
PAM8013- U-FLGA1515-9
BU
YW
PAM8015- U-FLGA1515-9
BV
YW
Package Outline Dimensions (All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
U-FLGA1515-9
Dim Min Max Typ
A 0.55 0.65 0.60
A1 0 0.05 0.02
A3 0.13 BSC
b 0.20 0.30 0.25
D 1.45 1.55 1.50
E 1.45 1.55 1.50
e 0.50 BSC
Z 0.125 BSC
All Dimensions in mm
︵P i n # 1 I D ︶
A
A 1 A 3
S e a t i n g P l a n e
D
E
b S Q .
Z
e
R 0
.1
e
BU: PAM8013 Product Code
Y: Year
W: Week
BV: PAM8015 Product Code
Y: Year
W: Week
