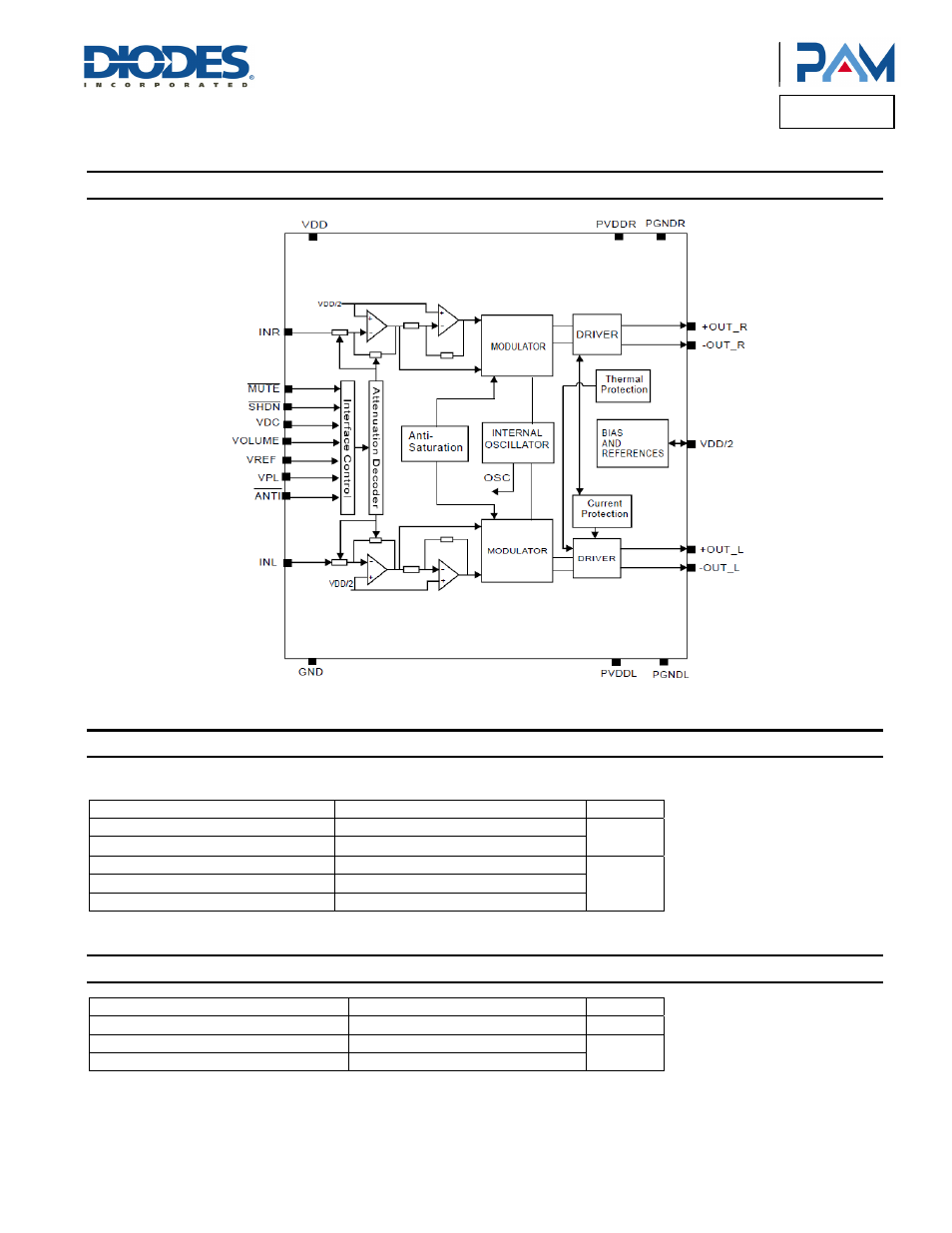

Functional Block Diagram
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating
Unit
Supply Voltage
6.0
V
Input Voltage
-0.3 to V
DD
+0.3
Operation Junction Temperature
-40 to +125
°C
Storage Temperature
-65 to +150
Soldering Temperature
300, 5sec
Recommended Operating Conditions
(@T
A
= +25°C, unless otherwise specified.)
Parameter Rating
Unit
Supply Voltage Range
2.5 to 5.5
V
Junction Temperature Range
-40 to +125
°C
Ambient Operation Temperature Range
-20 to +85
