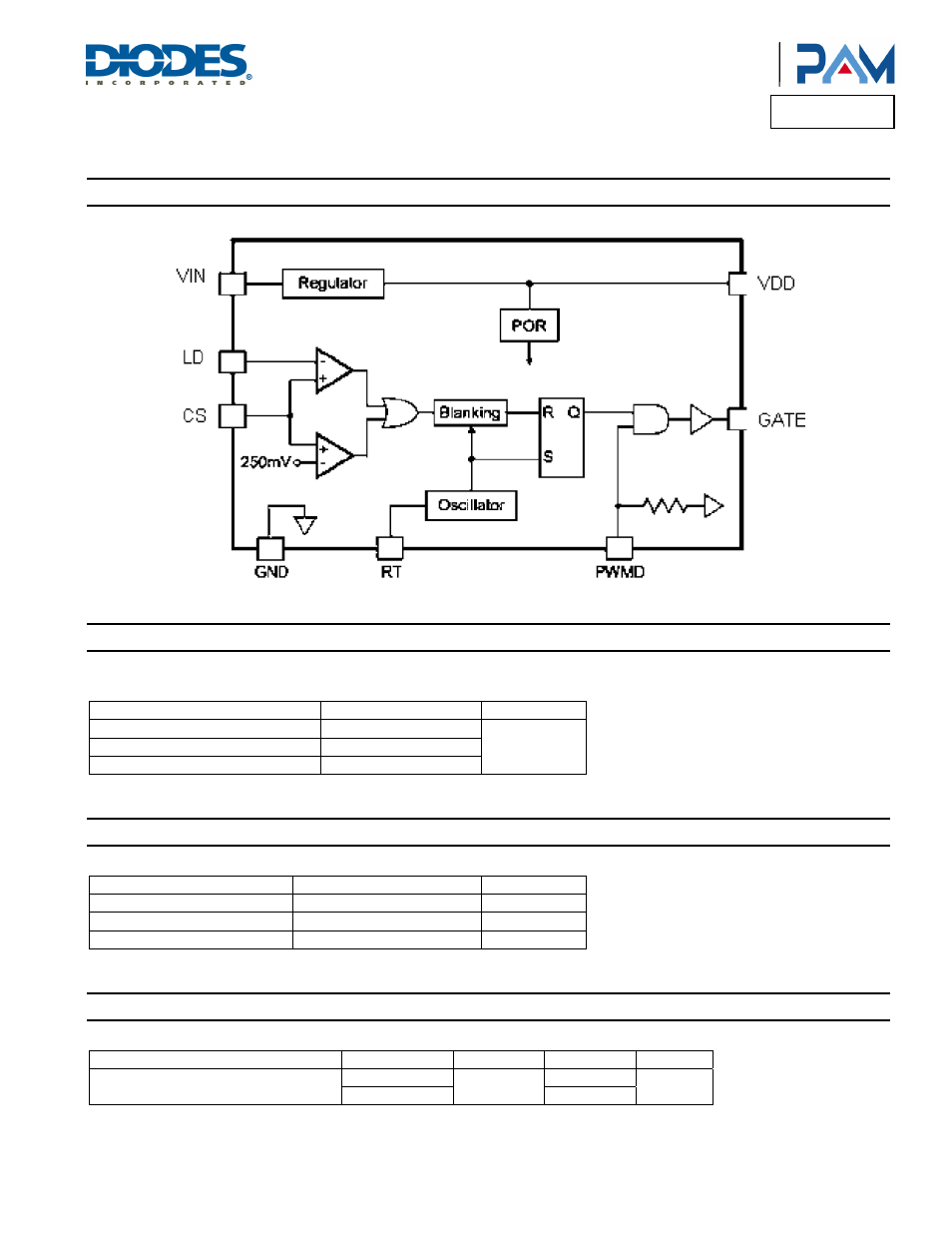

Functional Block Diagram
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating Unit
Maximum Junction Temperature 150
°C Storage Temperature -65 to +150
Soldering Temperature 300, 5sec
Recommended Operating Conditions
(@T
A
= +25°C, unless otherwise specified.)
Parameter Rating Unit
Supply Voltage 12 to 500 V
Ambient Temperature Range -40 to +85 °C
Junction Temperature Range -40 to +125 °C
Thermal Information
Parameter Package Symbol Max Unit
Thermal Resistance (Junction to Ambient)
SOP-8
θ
JA
115
°C/W
SOP-16 110
