PAM3101

Document number: DSxxxxx Rev. 2 - 5

13 of 25

October 2012

PAM3101

A Product Line of

Diodes Incorporated

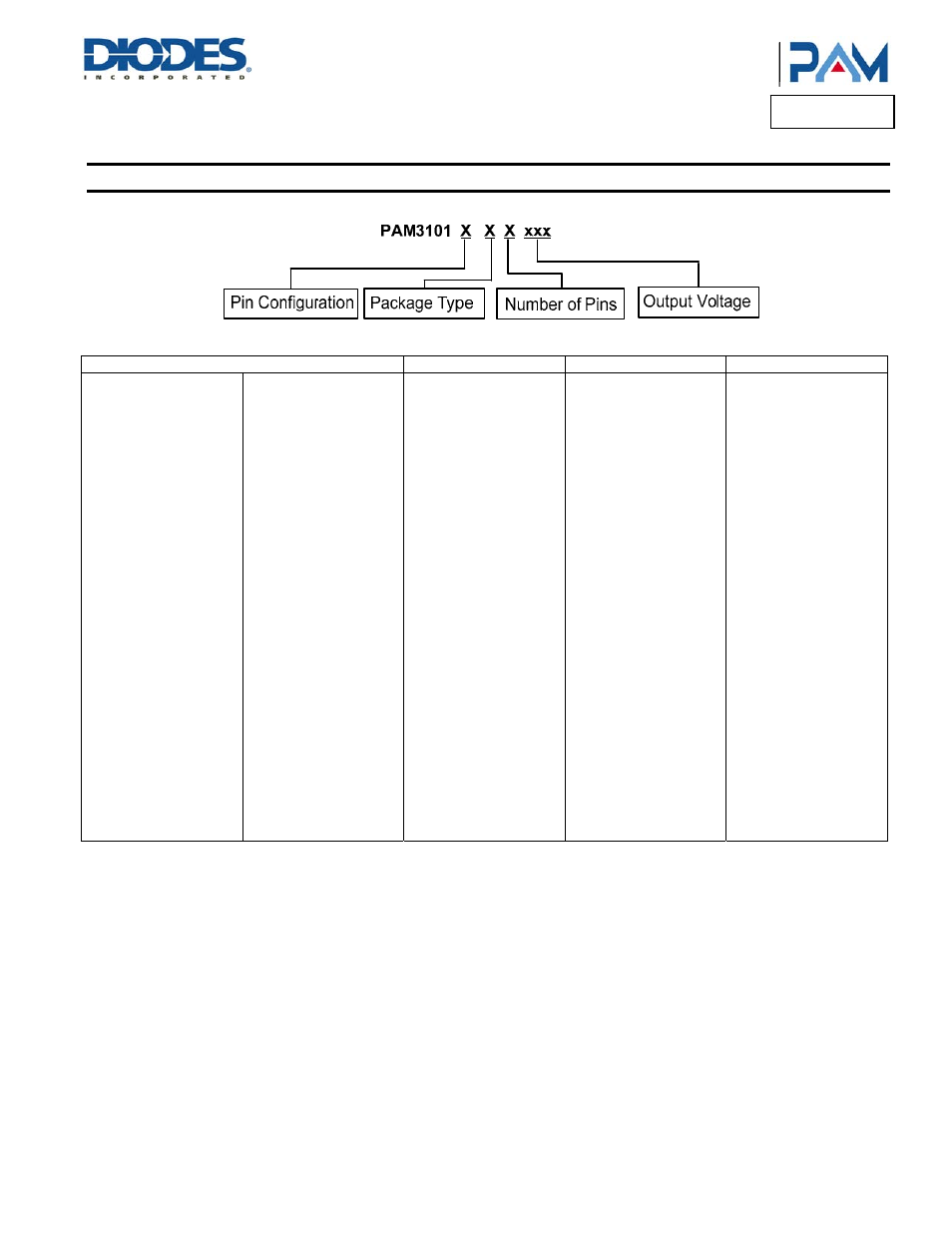

Ordering Information

Pin Configuration

Package Type

Number of Pins

Output Voltage

A Type:

1. GND
2. VOUT
3. VIN

B Type:

1. VIN
2. GND
3. EN
(EN Default
floating
4. NC
5. VOUT

C Type:

1. VOUT
2. GND
3. VIN

D Type:

1. VIN
2.GND
3.EN
(EN Default
pull high
4.BYP
5.VOUT

E Type:

1. VOUT
2. GND
3. NC
4. EN
(EN Default
floating
5. VIN

F Type:

1. EN
(EN Default
floating
2. NC
3. VIN
4. VOUT
5. NC
6. GND

G Type:

1. VIN
2. VOUT
3. GND

H Type:

1. GND
2. VIN
3. VOUT

A: TSOT25/SOT23
C: SOT-89
U: SC70
K: DFN1.6x1.6

A: 3
K: 4
B: 5
F: 6

475: 4.75V
400: 4.0V
380: 3.8V
330: 3.3 V
310: 3.1V
290: 2.9V
285: 2.85V
280: 2.8V
250: 2.5V
200: 2.0V
180: 1.8V
150: 1.5V
