PAM3101
Document number: DSxxxxx Rev. 2 - 5
1 of 25
October 2012
© Diodes Incorporated
PAM3101
A Product Line of
Diodes Incorporated
300mA HIGH PSRR LOW-DROPOUT CMOS LINEAR REGULATOR
Description
The PAM3101 series of positive voltage linear regulators feature low
quiescent current (65µA typ.) and low dropout voltage, making them
ideal for battery powered applications. Their high PSRR make them
useful in applications where AC noise on the input power supply must
be suppressed. Space-saving TSOT25, SOT-23, SOT-89, SC70 and
DFN1.6x1.6-6L packages are attractive for portable and handheld
applications. They have both thermal shutdown and current limit
features to prevernt device failure from extreme operating conditions.
They are stable with an output capacitor of 2.2µF or greater.
Features
Low Dropout Voltage: 180mV@300mA (V
O
= 3.3V)
Output Voltage Accuracy within ±2%
Supply Voltage Range: 2.5V to 5.5V
Quiescent Current: 65µA typ.
High PSRR: 70dB@1kHz
Excellent Line and Regulation
Fast
Discharge
Current
Limiting
Short Circuit Protection
Low Temperature Coefficient
Shutdown Current: 0.5µA
Thermal
Shutdown
Space Saving Packages: TSOT25, SOT-23, SOT-89, SC70 and
DFN1.6x1.6
Pb-Free
Packages
Applications
Cellular
Phones
Bluetooth
Earphones
Digital
Cameras
Portable
Electronics
WLANs
MP3
Players

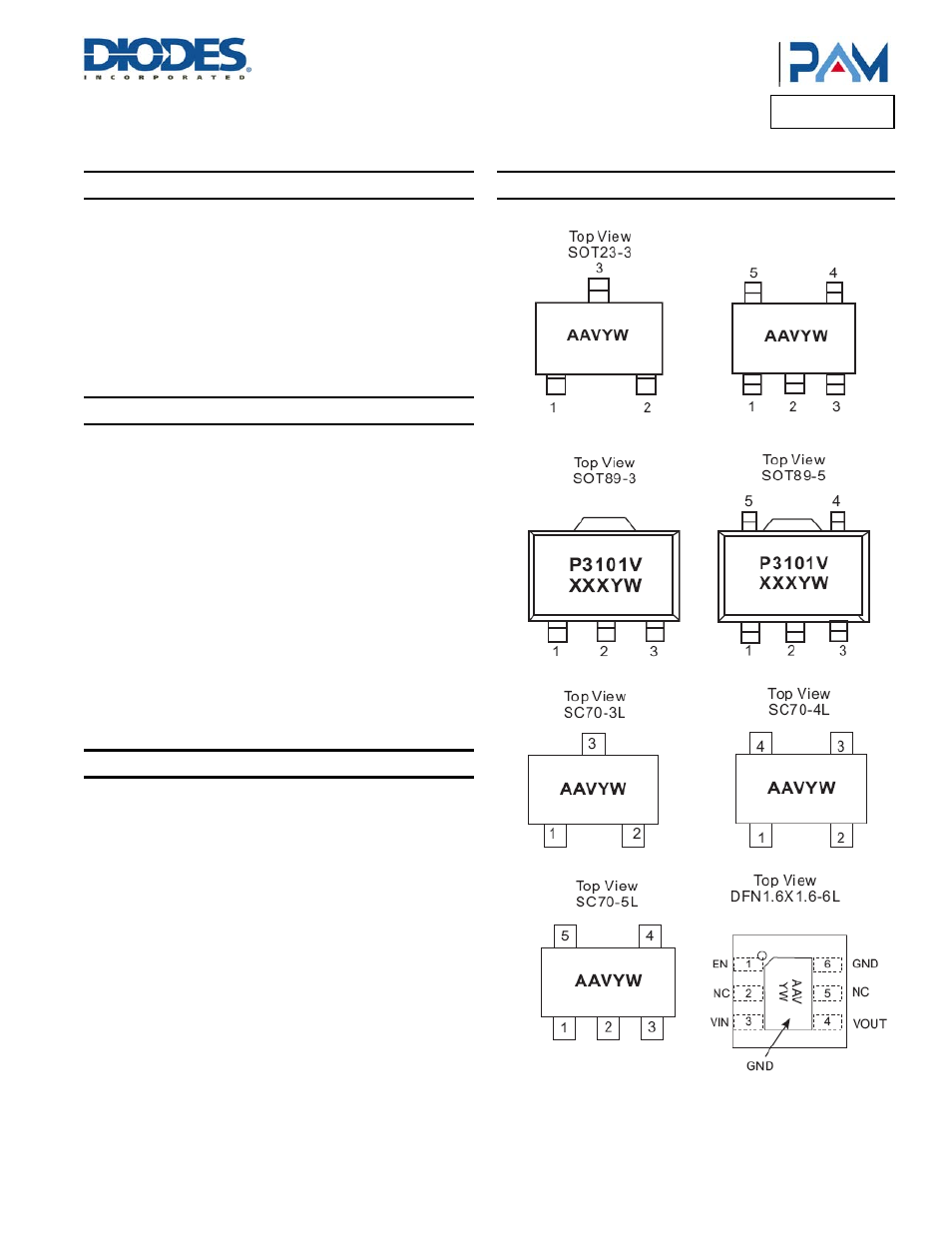

Pin Assignments
Top View
TSOT25
