PAM2319

Document number: DSxxxxx Rev. 1 - 1

3 of 12

www.diodes.com

November 2012

© Diodes Incorporated

PAM2319

A Product Line of

Diodes Incorporated


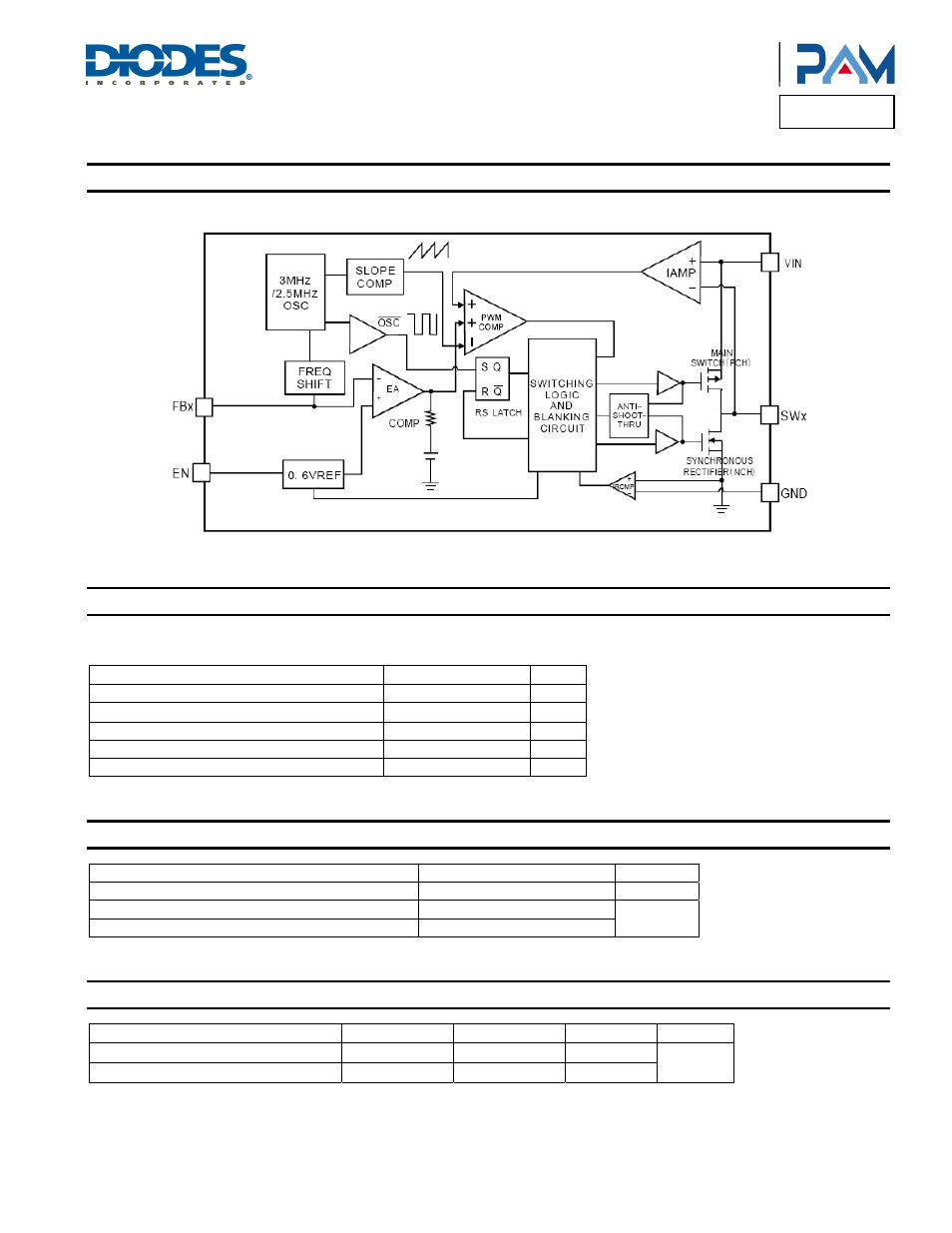

Functional Block Diagram

Note:

1. The diagram above just shows one channel.


Absolute Maximum Ratings

(@T

A

= +25°C, unless otherwise specified.)

These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.

Parameter Rating

Unit

Input Voltage

-0.3 to 6.5

V

EN1, FB1, SW1, EN2, FB2 and SW2 Pin Voltage

-0.3 to (V

IN

+0.3)

V

Maximum Junction Temperature

150

°C

Storage Temperature Range

-65 to +150

°C

Soldering Temperature

260, 10sec

°C



Recommended Operating Conditions

(@T

A

= +25°C, unless otherwise specified.)

Parameter Rating

Unit

Supply Voltage

2.7 to 5.5

V

Ambient Temperature Range

-40 to +85

°C

Junction Temperature Range

-40 to +1255



Thermal Information

Parameter

Symbol Package Max Unit

Thermal Resistance (Junction to Ambient)

θ

JA

W-DFN3x3-12L 60

°C/W

Thermal Resistance (Junction to Case)

θ

JC

W-DFN3x3-12L 8.5
