PAM2305D

Document number: DSxxxxx Rev. 2 - 1

2 of 15

www.diodes.com

January 2013

© Diodes Incorporated

PAM2305D

A Product Line of

Diodes Incorporated


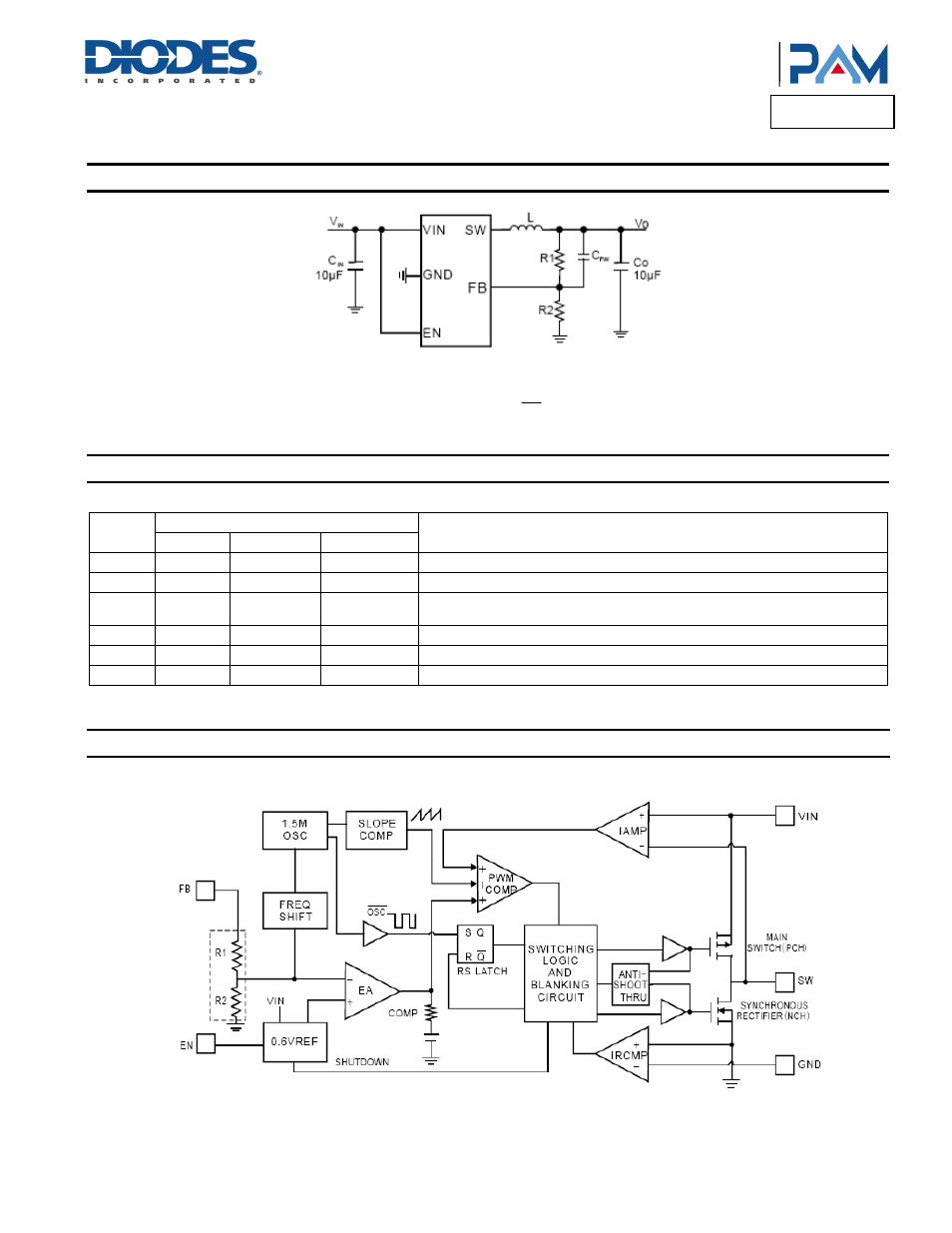

Typical Applications Circuit

⎛ +

×

=

2

R

1

R

1

6

.

0

V

O

Pin Descriptions


Pin

Name

Package Name

Function

TSOT25 DFN2x2-6L QFN3x3-16L

VIN

1

3

9, 10, 11, 12

Chip main power supply pin.

GND

2

5

1, 2, 3, 5

Ground.

EN 3

2

7

Enable Control Input. Force this pin voltage above 1.5V, enables the chip, and
below 0.3V shuts down the device.

FB 4

6

4

Feedback voltage to internal error amplifier, the threshold voltage is 0.6V.

SW

5

4

13, 14, 15

The drains of the internal main and synchronous power MOSFET.

NC

1

6, 8, 16

No connection.



Functional Block Diagram
