MMSTA13/MMSTA14
NPN SURFACE MOUNT DARLINGTON TRANSISTOR
Features
•
Epitaxial Planar Die Construction
• Complementary PNP Type Available
(MMSTA63/MMSTA64)
• Ideal for Low Power Amplification and Switching
• High Current Gain
•
Ultra-Small Surface Mount Package
•
Lead Free/RoHS Compliant (Note 2)
• "Green" Device (Note 3 and 4)
Mechanical Data
•
Case: SOT-323
•
Case Material: Molded Plastic, "Green" Molding
Compound, Note 4. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020C
•
Terminal Connections: See Diagram
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy
42 leadframe).
• MMSTA13 Marking K2D, K3D, See Page 3
•
MMSTA14 Marking K3D, See Page 3
•
Ordering & Date Code Information: See Page 3
•
Weight: 0.006 grams (approximate)

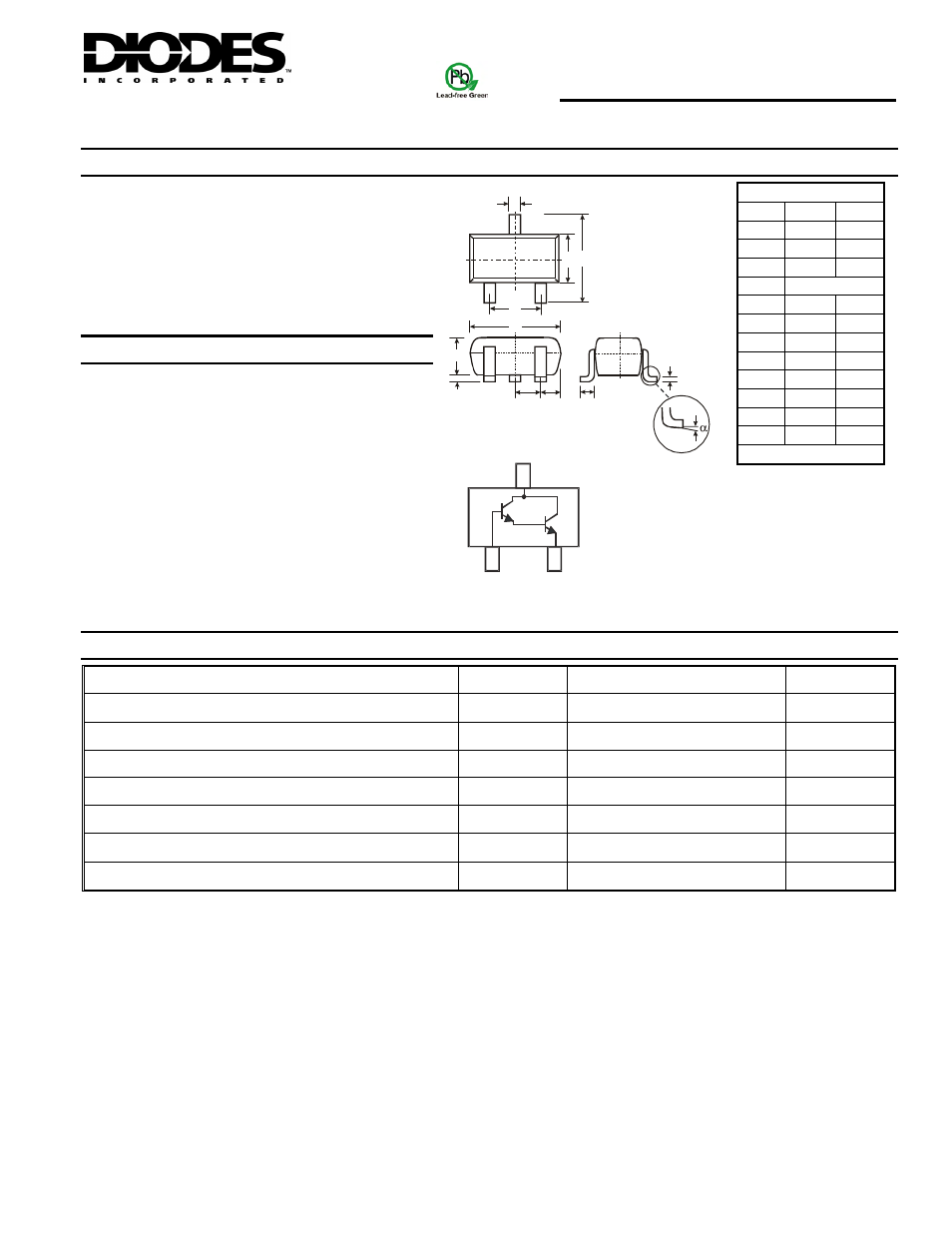

SOT-323
Dim Min Max
A 0.25 0.40
B 1.15 1.35
C 2.00 2.20
D 0.65 Nominal
E 0.30 0.40
G 1.20 1.40
H 1.80 2.20
J 0.0 0.10
K 0.90 1.00
L 0.25 0.40
M 0.10 0.18
α
0
°
8
°
All Dimensi mm ons in
A
M
J
L E D
B C
H
K
G
B E
C
E B
C
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Base Voltage V
CBO
30 V
Collector-Emitter Voltage V
CEO
30 V
Emitter-Base Voltage V
EBO
10 V
Collector Current - Continuous (Note 1) I C
300 mA
Power Dissipation (Note 1) P
d
200 mW
Thermal Resistance, Junction to Ambient (Note 1) R θJA 625 °C/W
Operating and Storage Temperature Range T
j
, T
STG
-55 to +150 °C
Notes: 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001,
which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. No purposefully added lead.
3. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
4. Product manufactured with Date Code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to
Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
DS30165 Rev. 9 - 2 1 of 3
www.diodes.com
MMSTA13/MMSTA14
© Diodes Incorporated
