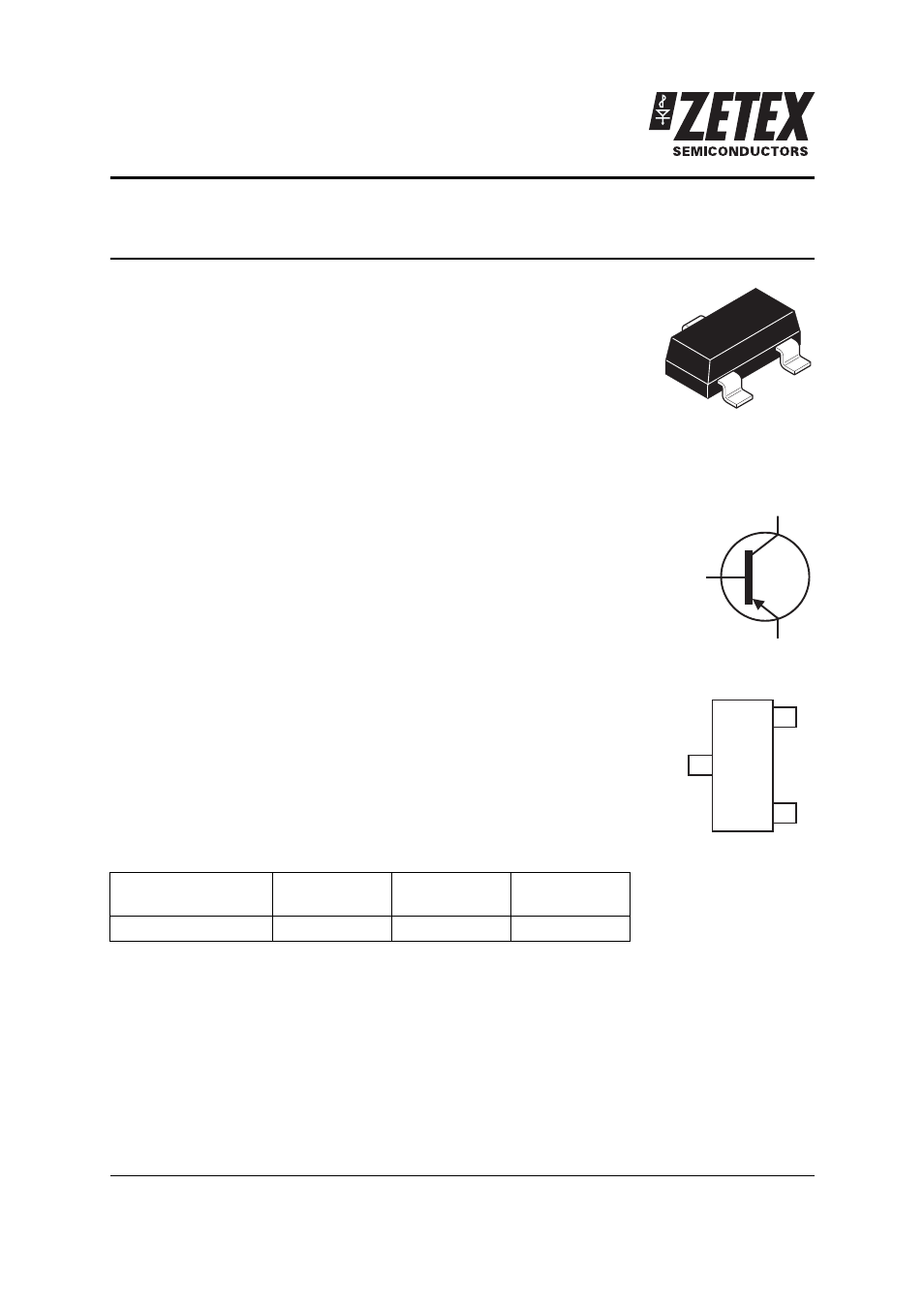

ZXTP08400BFF
400V, SOT23F, PNP medium power high voltage transistor
Summary;
BV
CEO
> -400V
BV
ECO
> -6V
I
C(cont)
= -0.2A
V
CE(sat)
< 220mV @ 100mA
P
D
= 1.5W
Complementary part number ZXTN08400BFF
Description
This PNP transistor has been designed for applications requiring high
blocking voltage. The SOT23F package is pin compatible with the
industry standard SOT23 footprint but offers lower profile and higher
dissipation for applications where power density is of utmost
importance.
Features
•
High voltage
•
Low saturation voltage
Applications
•
Telecoms switching
Ordering information
Device marking
1D6
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP08400BFFTA
7
8
3000
C
E
B
C
E
B
Pinout - top view
