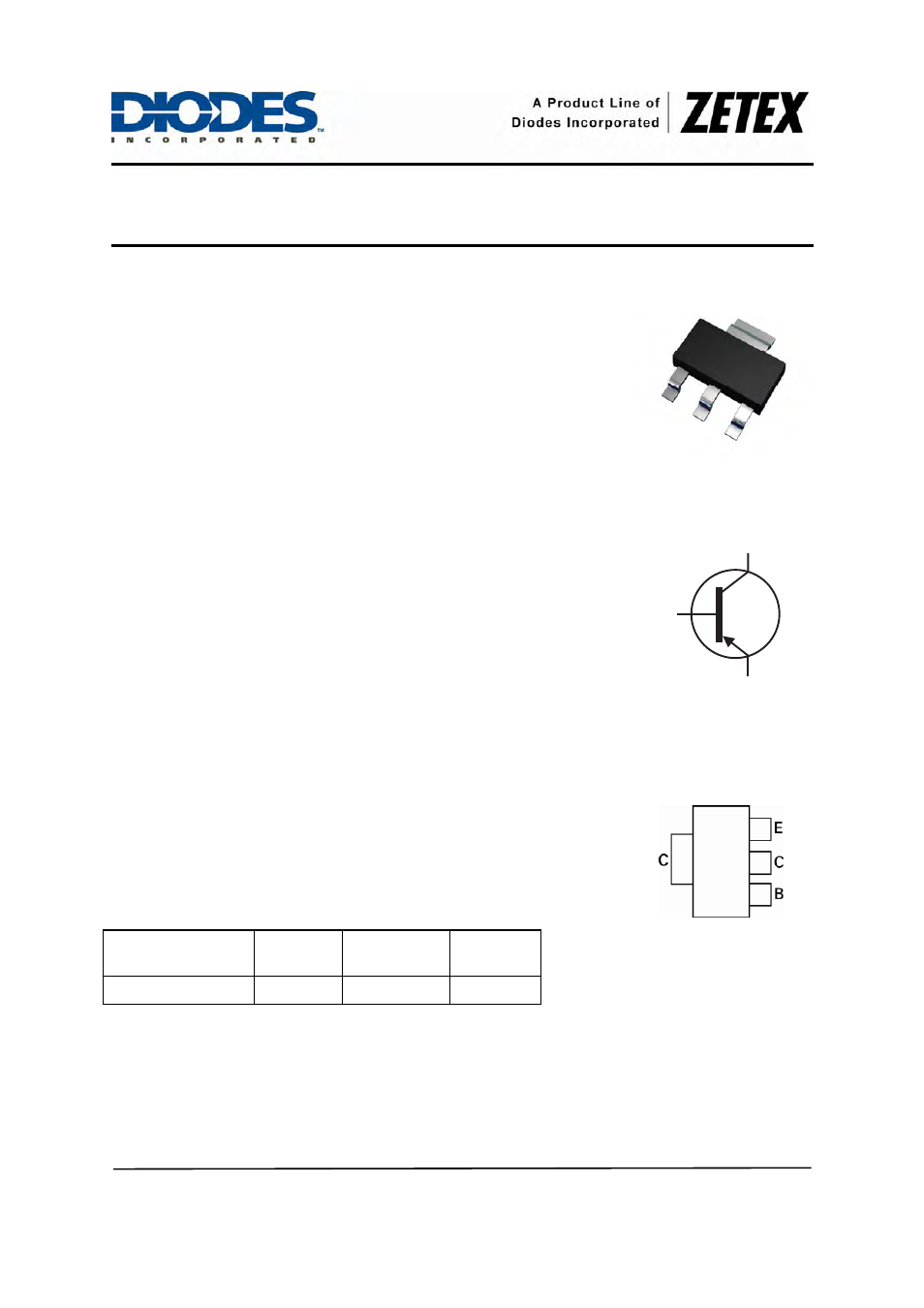

Diodes ZXTP03200BG User Manual
Sat) transistor in sot223

ZXTP03200BG
200V PNP Low V
CE
(sat) transistor in SOT223
Summary
BV
CEO
> -200V
BV
ECO
> -2V
I
C(cont)
= 2A
V
CE(sat)
< -160mV @ -1A
R
CE(sat)
= 135m
Ω
P
D
= 3W
Description
Packaged in the SOT223 outline this new 5
th
generation low
saturation 200V PNP transistor offers extremely low on state
losses making it ideal for use in DC-DC circuits and various
driving and power management functions
Features
•
2 Amps continuous current
•
Up to 5 Amps peak current
•
Very low saturation voltage
•
Enhanced switching performance
Applications
•
DC-DC conversion
Ordering Information
Device Reel
size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP03200BGTA 7
12
1000
C
E
B
Pin out - top view
Device Marking
ZXTP03200BG
