MMBT5401
Document number: DS30057 Rev. 10 - 2
1 of 7
www.diodes.com
December 2013
© Diodes Incorporated
MMBT5401
150V PNP SMALL SIGNAL TRANSISTOR IN SOT23
Features
 Epitaxial Planar Die Construction
 Complementary NPN Type - MMBT5551
 Ideal for Low Power Amplification and Switching
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. "Green" Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP capable (Note 4)
Mechanical Data
 Case: SOT23
 Case material: molded plastic, “Green” molding compound
 UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.008 grams (Approximate)
Ordering Information
(Notes 4 & 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
MMBT5401-7-F AEC-Q101 K4M 7 8 3,000
MMBT5401-13-F AEC-Q101 K4M 13 8 10,000
MMBT5401Q-7-F Automotive K4M 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Code J K L M N P R S T U V W X Y Z A B C
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

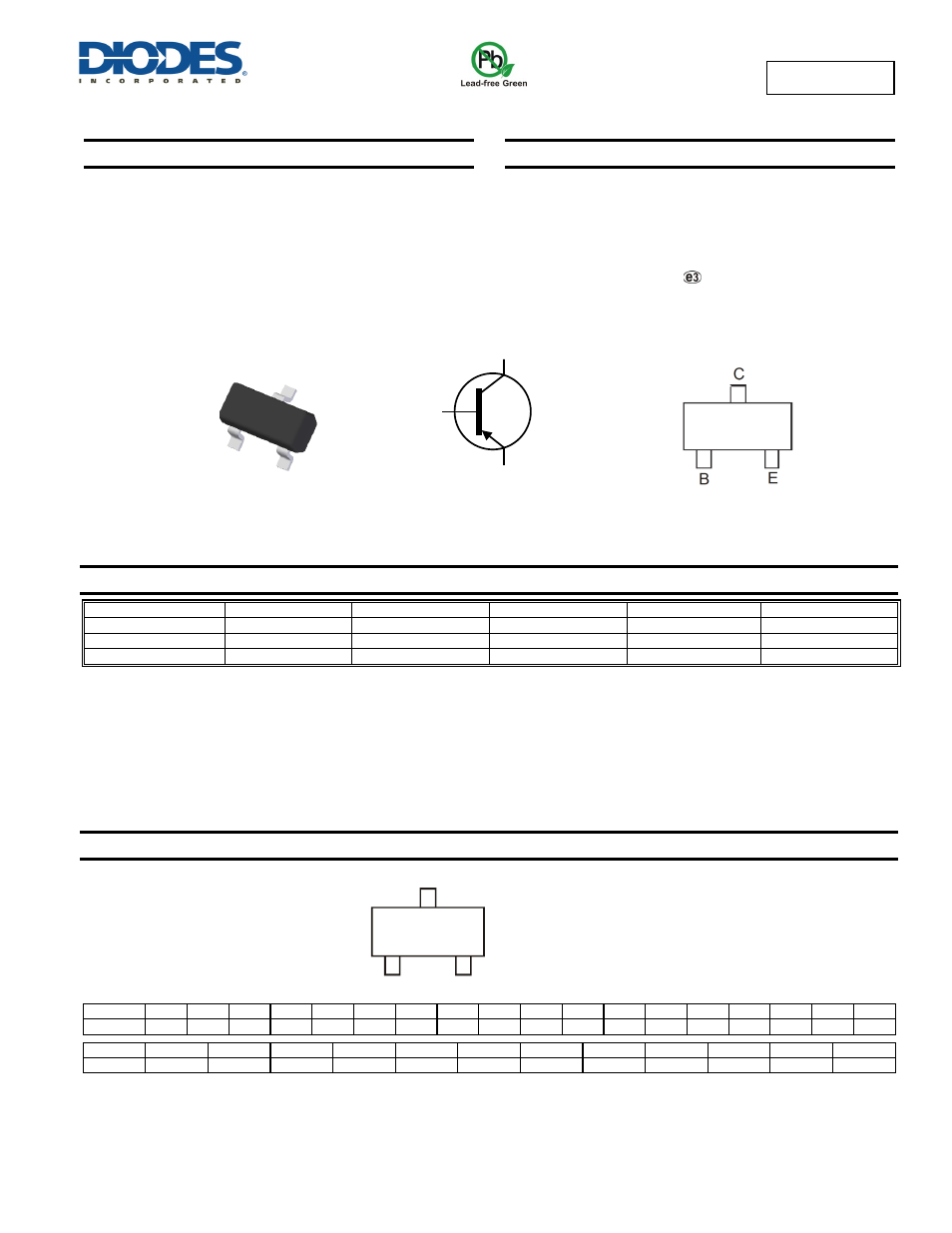

Top View Device Symbol
C
E
B
Top View
Pin-Out
SOT23
K4M = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
K4M
YM
