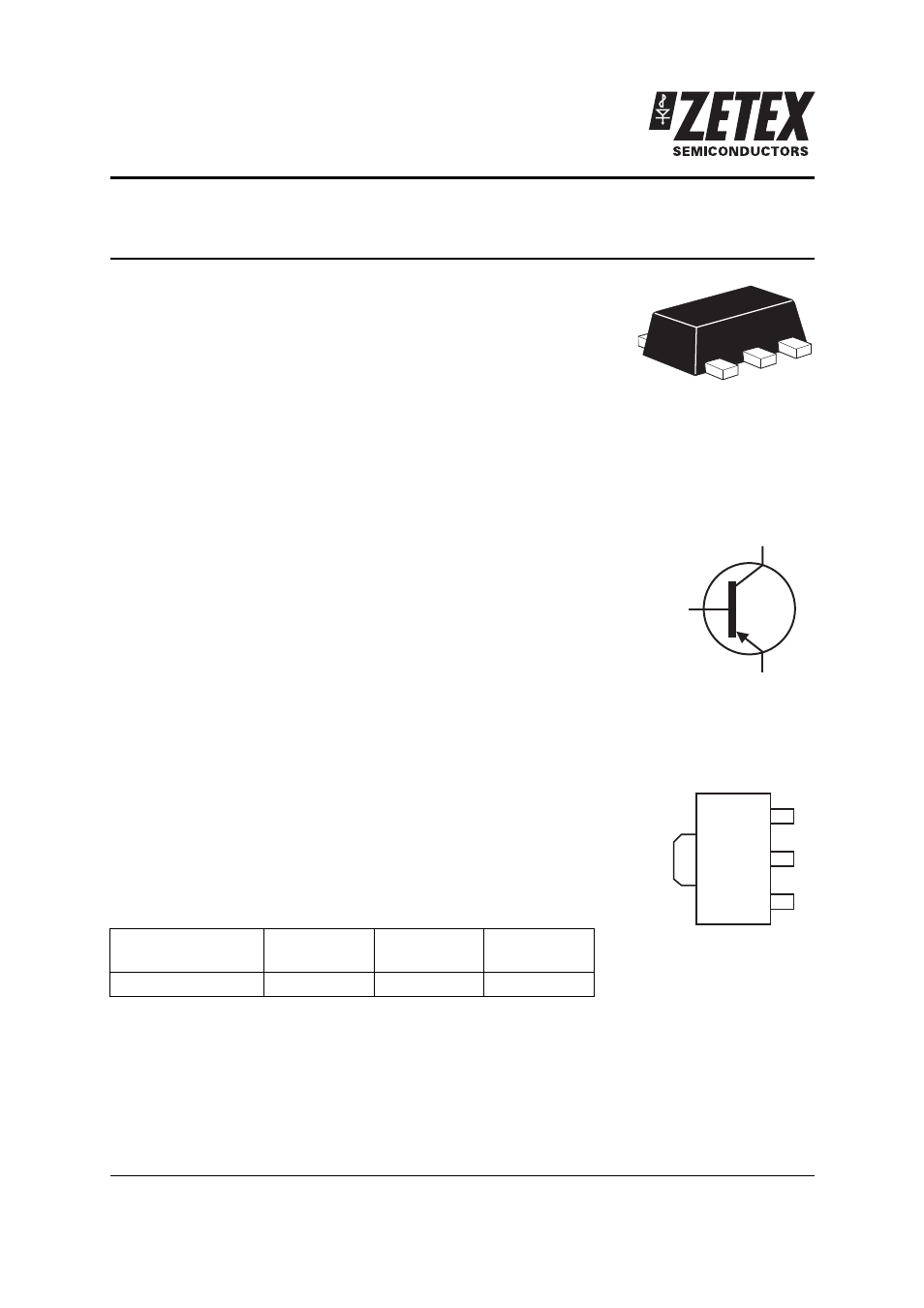

ZXTP25100CZ
100V PNP medium power transistor in SOT89
Summary
BV
CEO
> -100V
BV
ECO
> -7V
I
C(cont)
= 1A
V
CE(sat)
< -225mV @ 1A
R
CE(sat)
= 155m
⍀
P
D
= 2.4W
Complementary part number ZXTN25100DZ
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it
ideally suited to applications where space is at a premium.
Features
•
High power dissipation SOT89 package
•
High peak current
•
Low saturation voltage
•
7V reverse blocking
Applications
•
Motor drive
•
High side driver
•
Load disconnect switch
Ordering information
Device marking
•
IL7
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP25100CZTA
7
12
1000
C
E
B
C
E
Pinout - top view
C
B
