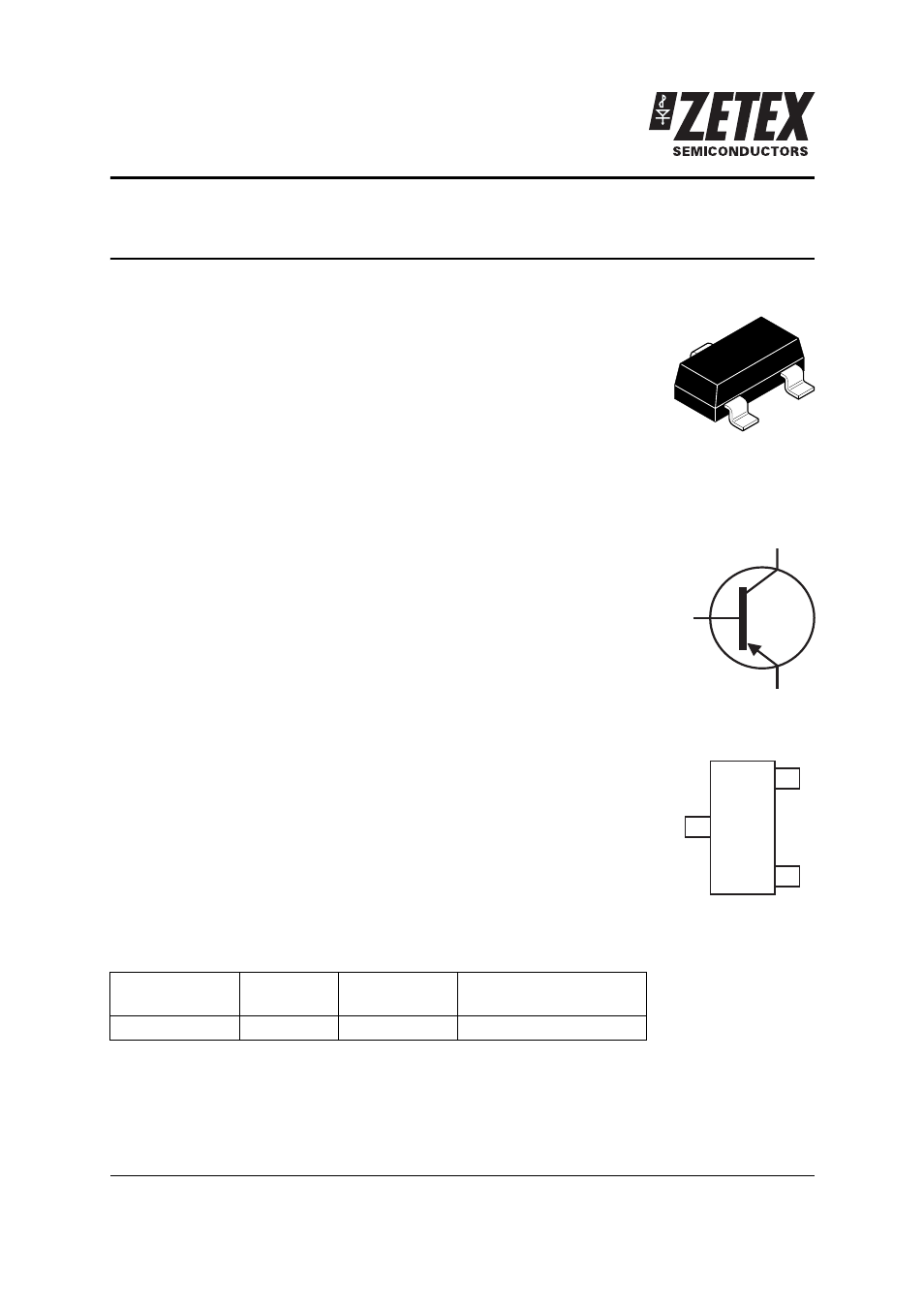

ZXTP2029F
100V, SOT23, PNP medium power transistor
Summary
V
(BR)CEV
> -130V, V
(BR)CEO
> -100V
I
C(cont)
= -3A
R
CE(sat)
= 45m
⍀ typical
V
CE(sat)
< -80mV @ -1A
P
D
= 1.2W
Complementary part number ZXTN2020F
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally suited
to applications where space is at a premium.
Features
•
Higher power dissipation SOT23 package
•
High peak current
•
Low saturation voltage
•
130V forward blocking voltage
Applications
•
MOSFET and IGBT gate driving
•
Motor drive
•
DC-DC converters
•
High side switches
Ordering information
Device marking
953
Device
Reel size
(inches)
Tape width
Quantity per reel
ZXTP2029FTA
7
8mm
3,000
C
E
B
C
E
B
Pinout - top view
