MMDT2907A
Datasheet Number DS30109 Rev.14 - 2
1 of 5
March 2014
© Diodes Incorporated
MMDT2907A
60V DUAL PNP SMALL SIGNAL TRANSISTOR IN SOT363
Features
Ultra-Small Surface Mount Package
Epitaxial Planar Die Construction
Ideal for Low Power Amplification and Switching
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
Case:
SOT363
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals:
Finish
Matte Tin Finish. Solderable per MIL-STD-
202, Method 208
Weight: 0.006 grams (approximate)
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
MMDT2907A-7-F
AEC-Q101 K2F
7
8
3,000
MMDT2907AQ-7-F Automotive
K2F
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2010
2011
2012
2013
2014
2015
2016
2017
Code X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D

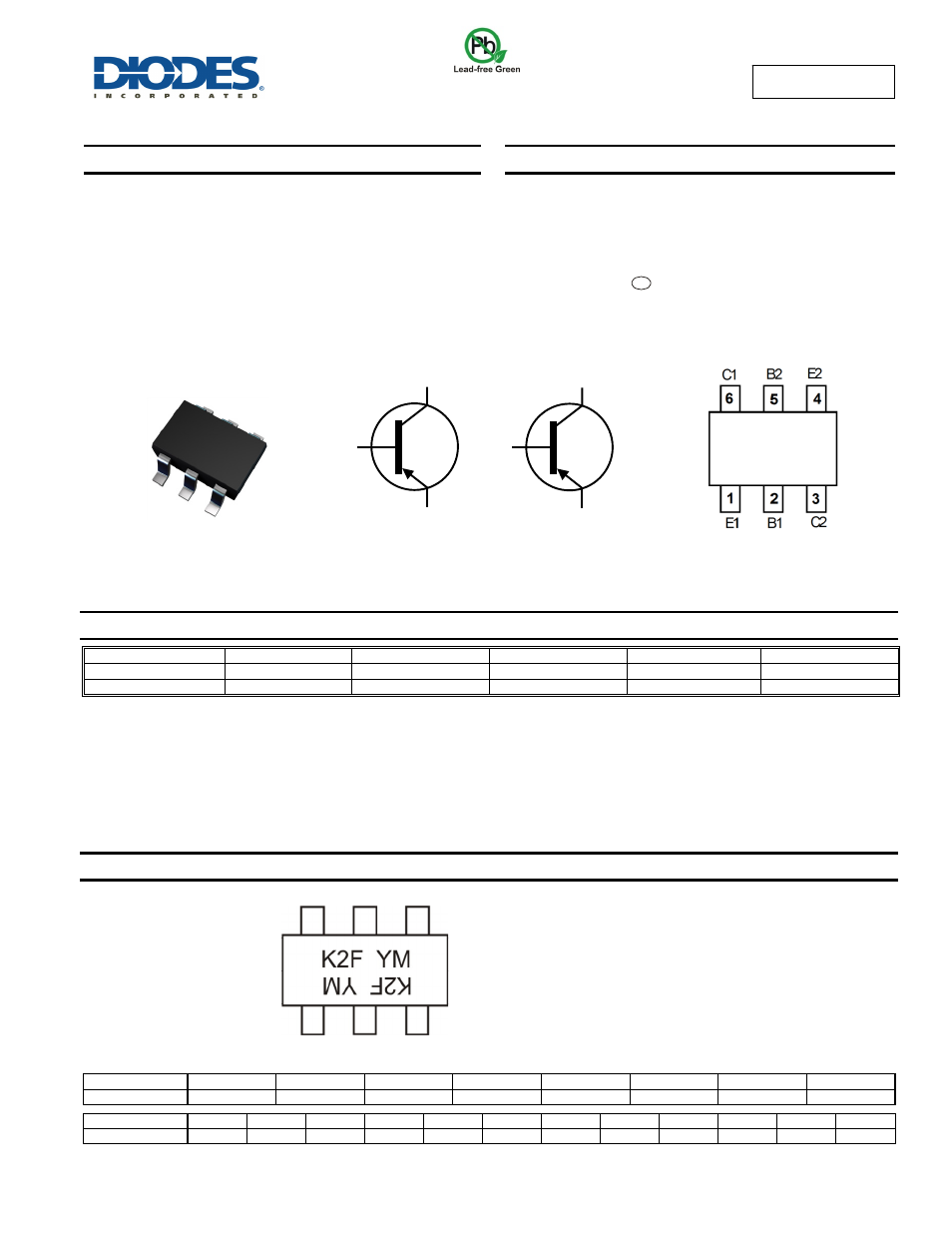

Device Symbol
K2F = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
e3
Top View
SOT363
Top View
Pin-Out
C2
E2
B2
C1
E1
B1
SOT363
