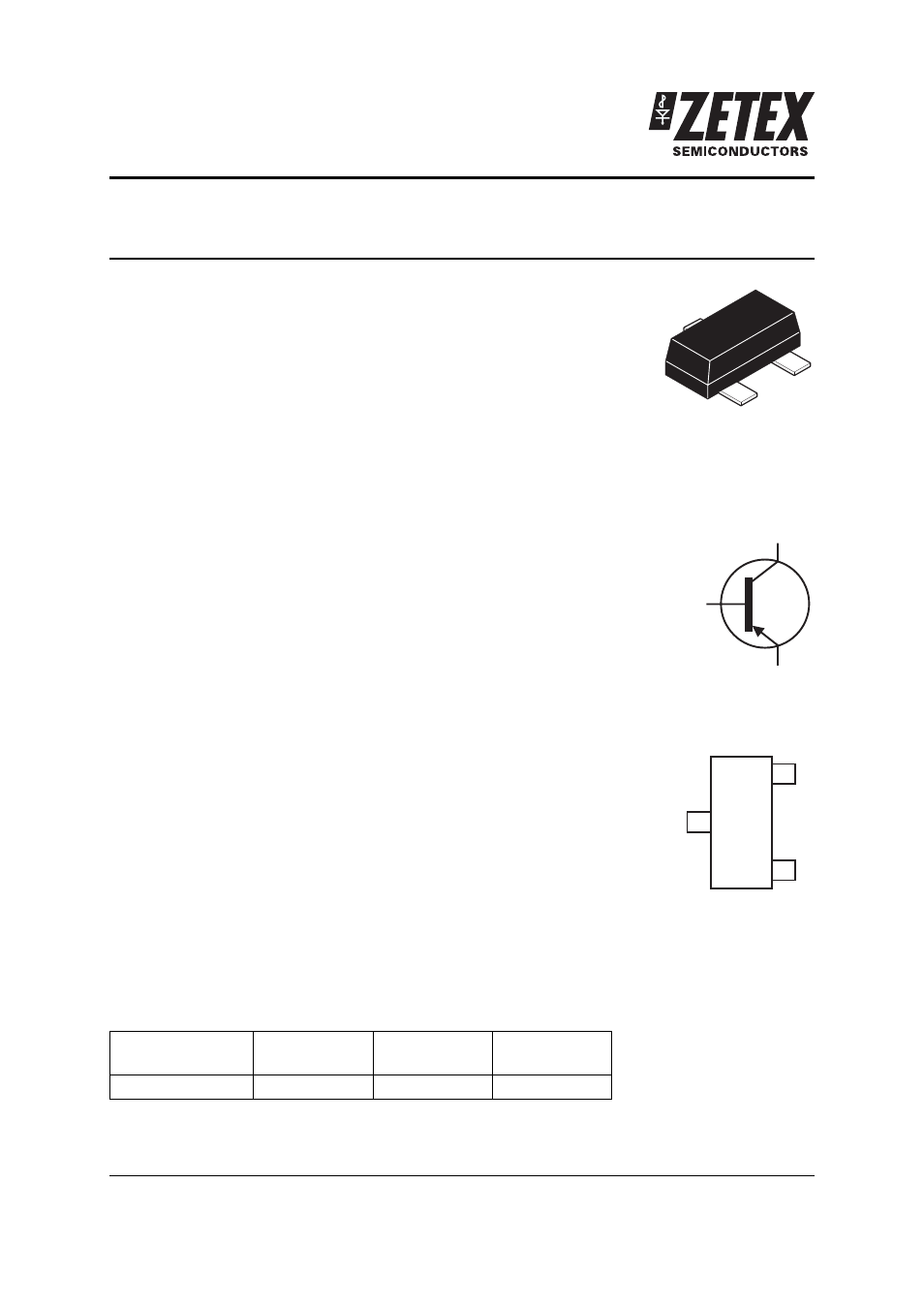

ZXTP07040DFF
40V, SOT23F, PNP medium power transistor
Summary;
BV
CEO
> -40V
BV
ECO
> -3V
I
C(cont)
= -3A
V
CE(sat)
< -100mV @ 1A
R
CE(sat)
= 67m
⍀
P
D
= 1.5W
Complementary part number ZXTN07045EFF
Description
This low voltage PNP transistor has been designed for applications
requiring high gain and very low saturation voltage. The SOT23F
package is pin compatible with the industry standard SOT23 footprint
but offers lower profile and higher dissipation for applications where
power density is of utmost importance.
Features
•
Low profile SOT23F package
•
Low saturation voltage
•
High Gain
•
High power dissipation
Applications
•
Load switches
•
Battery charging
•
Siren driver
•
MOSFET and IGBT gate driver
•
Motor drive
Ordering information
Device marking
1D2
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP07040DFFTA
7
8
3000
C
E
B
C
E
B
Pinout - top view
