ZXTP26020DMF
Document number: DS32101 Rev. 1 - 2
1 of 6
May 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP26020DMF
2 0 V L O W V
C E ( S A T )
P N P S U R F A C E M O U N T E D T R A N S I S T O R
Features
•
Epitaxial Planar Die Construction
•
Complementary NPN Type Available (ZXTN26020DMF)
•
Low Collector-Emitter Saturation Voltage, V
CE(SAT)
•
High Current Gain (h
FE
) at High I
C
•
Surface Mount Package Suited for Automated Assembly
•
Ultra-Small Surface Mount Package
•
Qualified to AEC-Q101 Standards for High Reliability
•
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)
•
“Green” Device (Note 2)
•
ESD rating: 400V-MM, 8KV-HBM
Mechanical Data
• Case:
DFN1411-3
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – NiPdAu over Copper lead frame. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.003 grams (approximate)
Applications
•
MOSFET and IGBT gate driving
•
DC-DC conversion
•
Interface between low voltage IC and Load
•
Load disconnect switch
Ordering Information
Product
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTP26020DMFTA 7
8
3000
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc’s “Green” Policy can be found on our websit
Marking Information
Date Code Key
Year
2009
2010
2011
2012
2013
2014
2015
2016
Code W X Y Z A B C D
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
Z2= Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: W = 2009)
M = Month (ex: 9 = September)

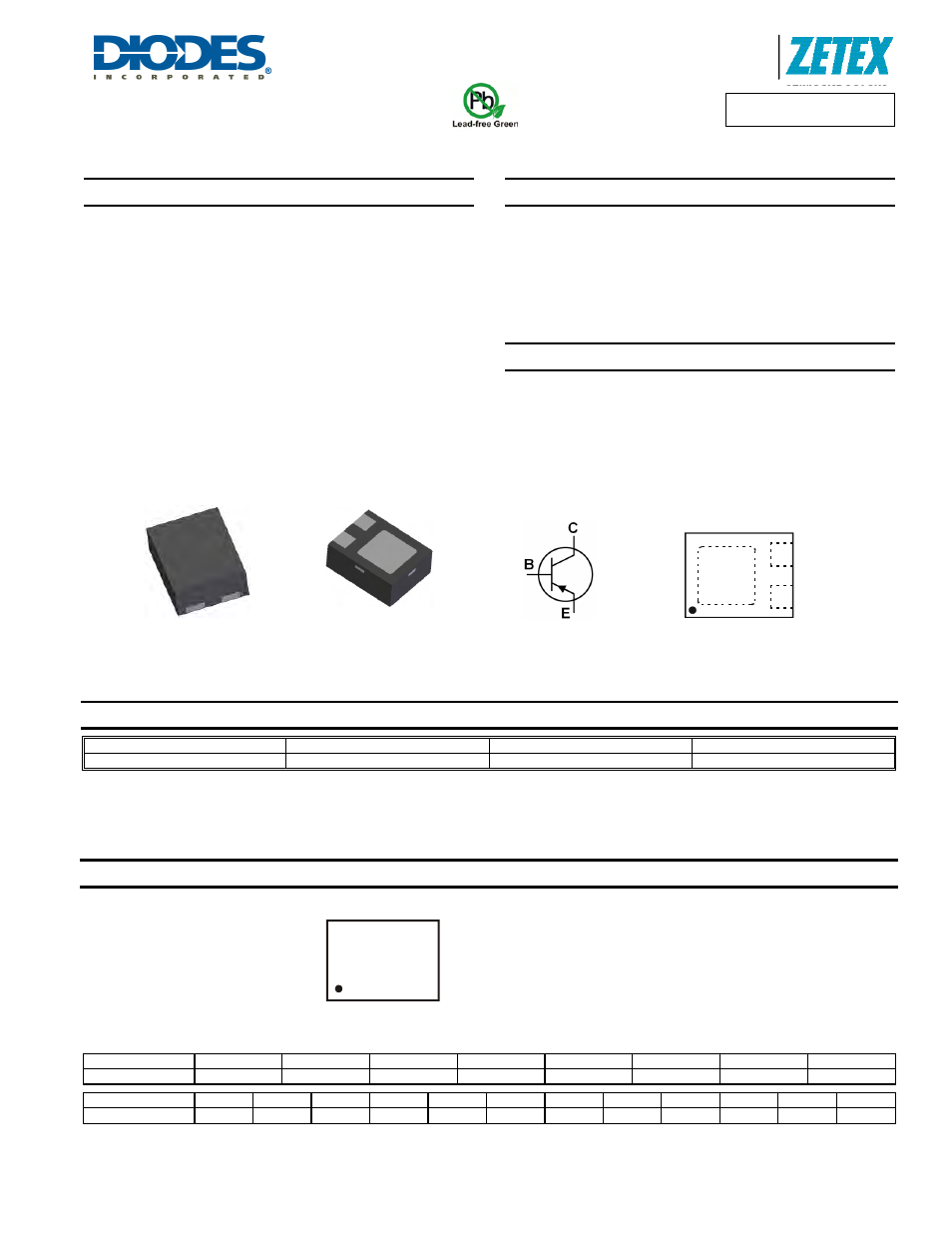

Top view
Device Symbol
Bottom view
Pin-Out Top view
Z2
YM
C
E
B
