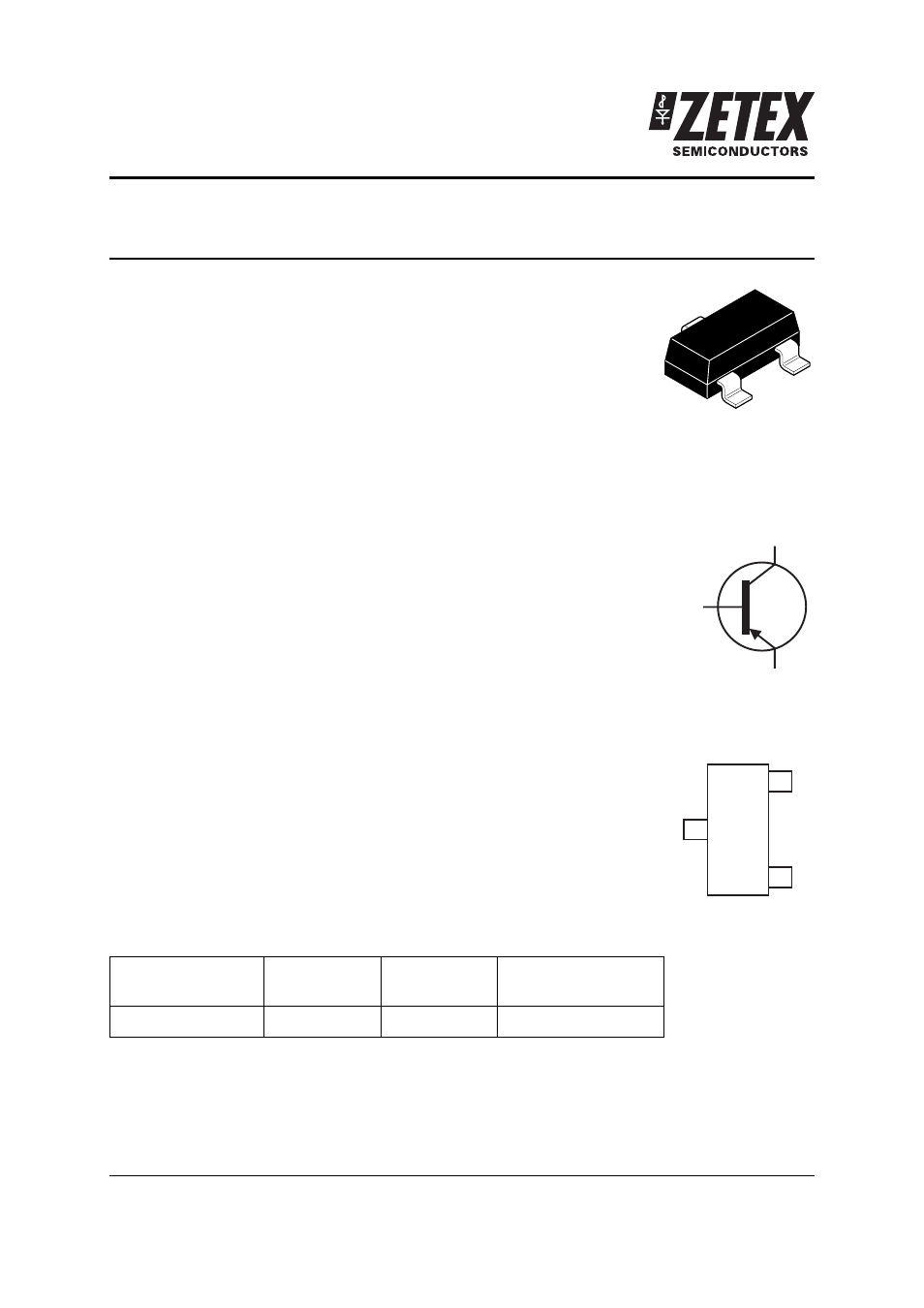

ZXTP25020DFH
20V, SOT23, PNP medium power transistor
Summary
BV
CEO
> -20V
BV
ECO
> -4V
I
C(cont)
= 4A
V
CE(sat)
< 60 mV @ 1A
R
CE(sat)
= 39 m
⍀
P
D
= 1.25W
Complementary part number ZXTN25020DFH
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally
suited to applications where space is at a premium.
Features
• High power dissipation SOT23 package
• High peak current
• High gain
• Low saturation voltage
Applications
• MOSFET gate drivers
• Power switches
• Motor control
Ordering information
Device marking
1A3
Device Reel size
(inches)
Tape width
(mm)
Quantity per reel
ZXTP25020DFHTA 7 8 3000
C
E
B
C
E
B
Pinout - top view
