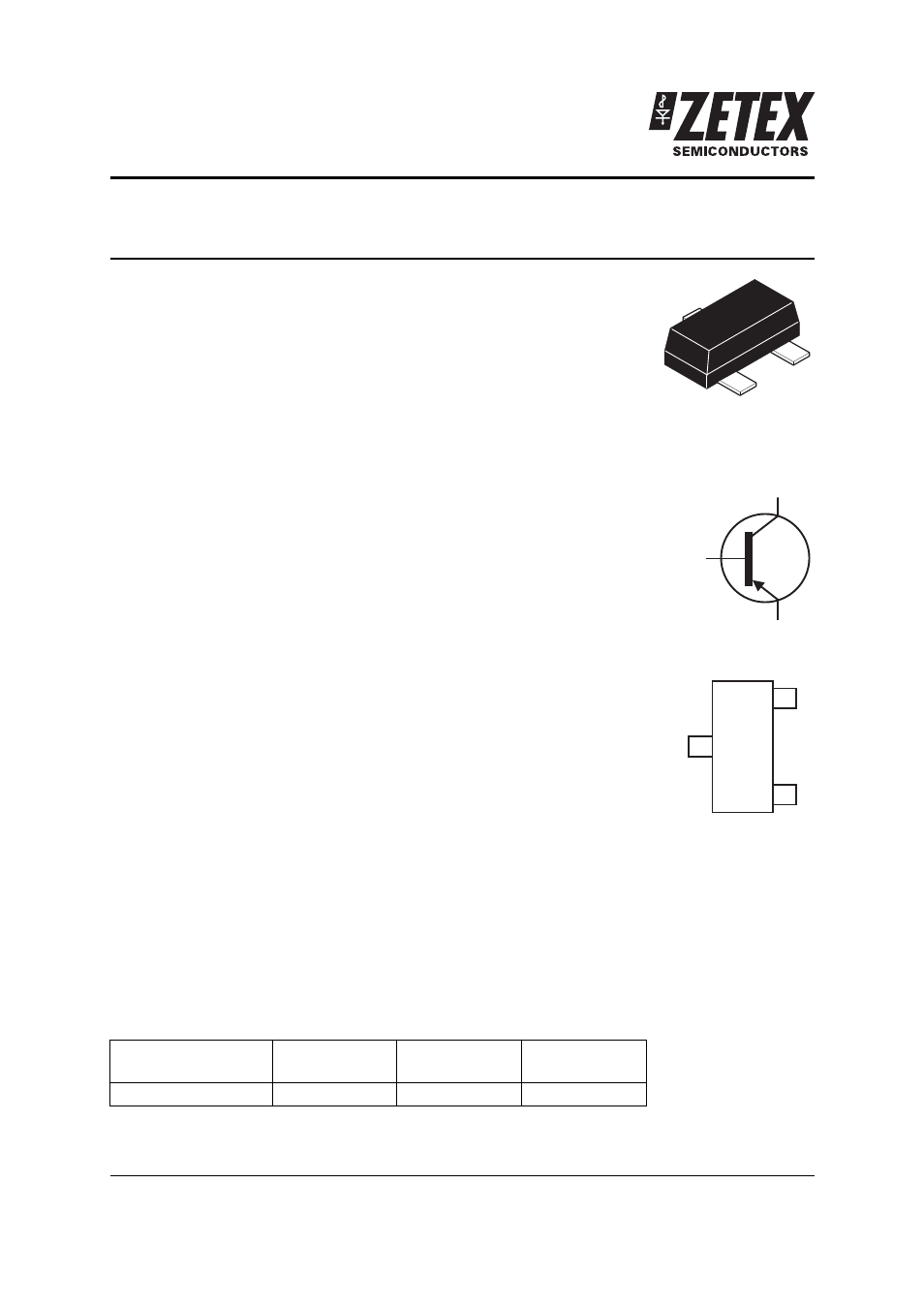

Issue 1 - February 2007

1

www.zetex.com

© Zetex Semiconductors plc 2007

ZXTP25020CFF
20V, SOT23F, PNP medium power transistor

Summary

BV

CEO

> -20V

BV

ECO

> -7V

I

C(cont)

= -4.5A

R

CE(sat)

= 41m

V

CE(sat)

< -65mV @ 1A

P

D

= 1.5W

Description

Advanced process capability and packaging maximise the power
handling and performance of this small outline transistor. The reverse
blocking capability of the transistor can often result in the elimination of
a series connected Schottky diode commonly required with either bipolar
transistors or MOSFETs when used in battery charging applications.

Features

20V PNP

Very low saturation voltage

7V reverse blocking capability

High pulse current

Low profile SOT23F package

Applications

Mobile phone charging circuits

Disconnect switch in portable products

High side driving

Motor control

DC-DC convertors

MOSFET and IGBT gate driving

Ordering information

Device marking

1F4

Device

Reel size

(inches)

Tape width

(mm)

Quantity

per reel

ZXTP25020CFFTA

7

8 3000

C

E

B

C

E

B

Pinout - top view
