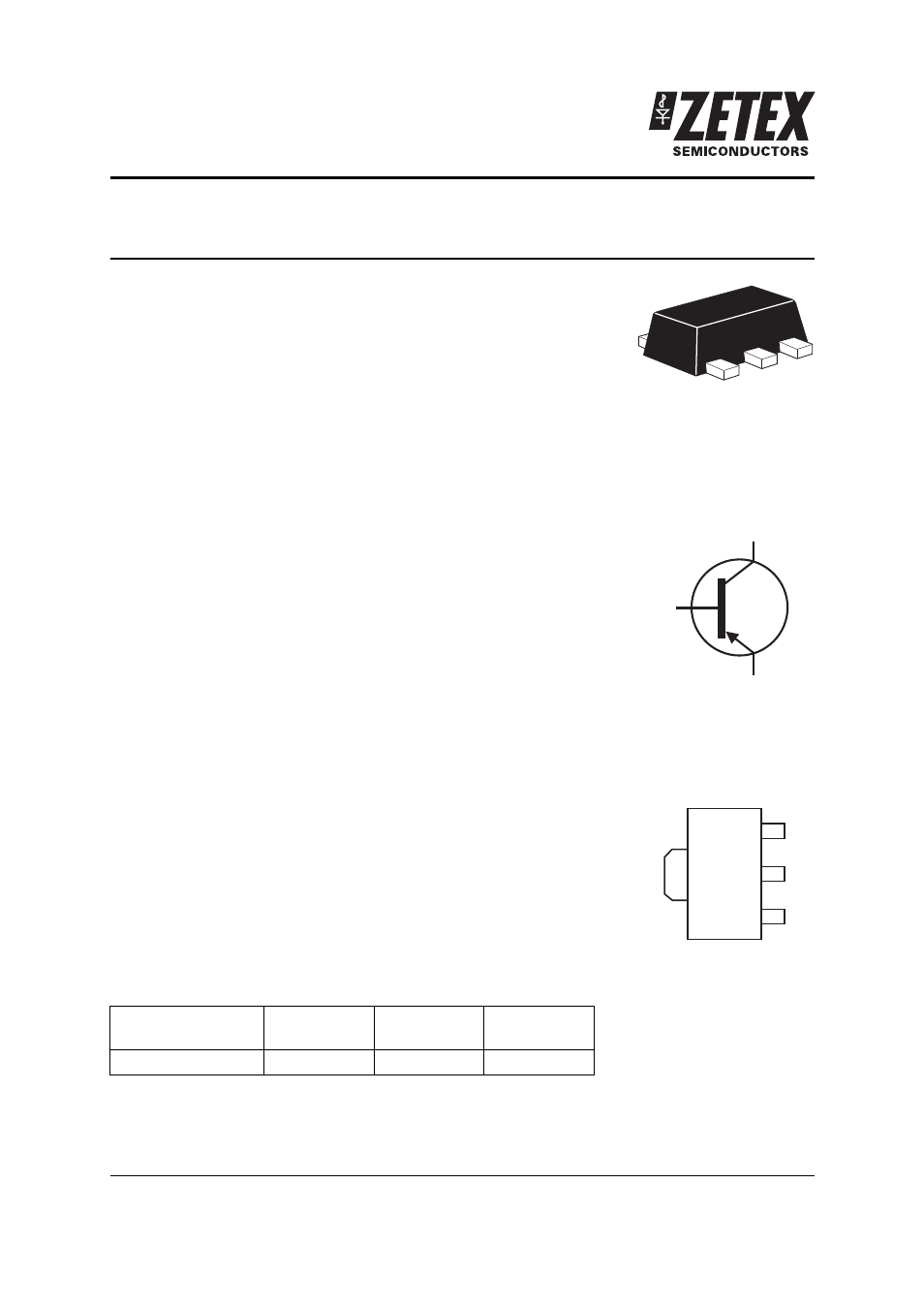

ZXTP25012EZ
20V PNP high gain transistor in SOT89
Summary
BV
CEO
> -12V
h
FE
> 500
I
C(cont)
= 4.5A
V
CE(sat)
< -70mV @ 1A
R
CE(sat)
= 45m
⍀
P
D
= 2.4W
Complementary part number ZXTN25012EZ
Description
Packaged in the SOT89 outline this new low saturation 12V PNP
transistor offers extremely low on state losses making it ideal for use
in DC-DC circuits and various driving and power management
functions.
Features
•
4.5A continuous current
•
Up to 10A peak current
•
Very low saturation voltages
•
High gain
Applications
•
High side switch
•
Battery charging
•
Regulator circuits
•
Buck converters
•
MOSFET gate drivers
Ordering information
Device marking
•
1L4
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP25012EZTA
7
12
1000
C
E
B
C
E
Pinout - top view
C
B
