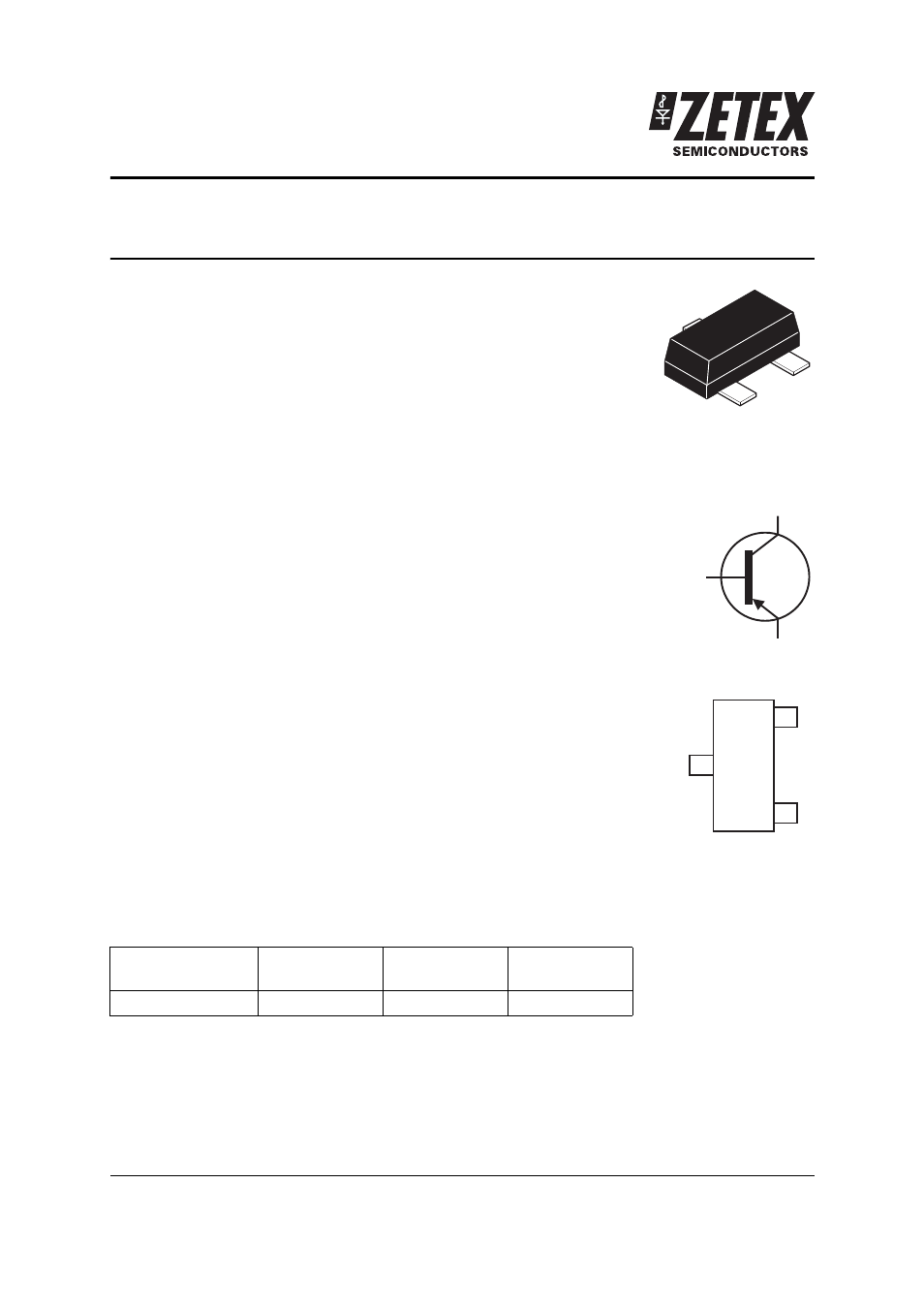

ZXTP07012EFF
12V, SOT23F, PNP medium power transistor
Summary;
BV
CEO
> -12V
I
C(cont)
= -4A
V
CE(sat)
< -75mV @ 1A
R
CE(sat)
= 50m
⍀
P
D
= 1.5W
Complementary part number ZXTN07012EFF
Description
This low voltage PNP transistor has been designed for applications
requiring high gain and very low saturation voltage. The SOT23F
package is pin compatible with the industry standard SOT23 footprint
but offers lower profile and higher dissipation for applications where
power density is of utmost importance.
Features
•
Low profile SOT23F package
•
Low saturation voltage
•
High gain
•
High power dissipation
Applications
•
Load switches
•
Battery charging
•
Motor drive
Ordering information
Device marking
1D1
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP07012EFFTA
7
8
3000
C
E
B
C
E
B
Pinout - top view
