Diodes MMBD5004BRM - Manual (Page 3)

MMBD5004BRM
Document number: DS30714 Rev. 4 - 2
3 of 5
www.diodes.com
December 2009
© Diodes Incorporated
MMBD5004BRM
NEW PROD
UC
T

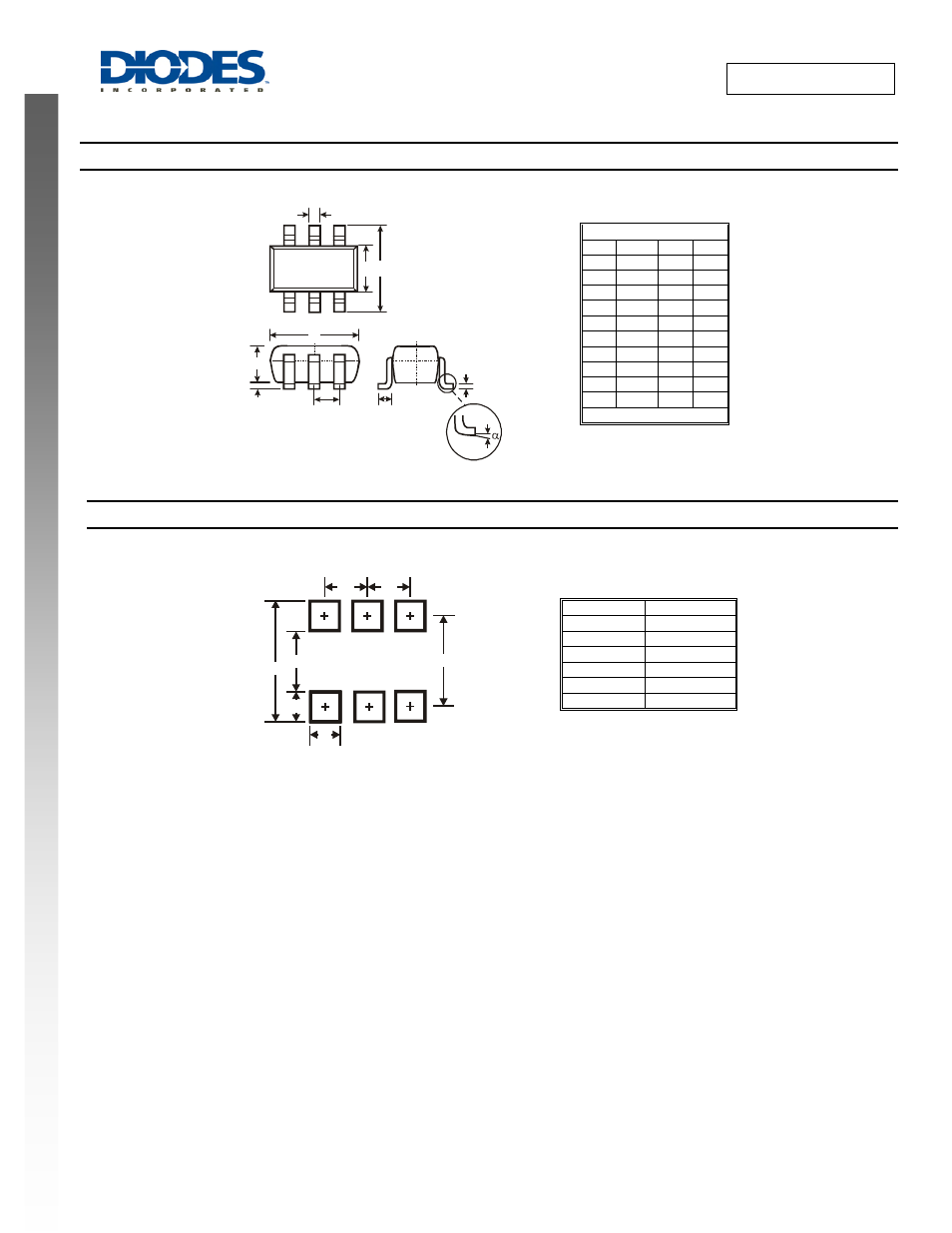

Package Outline Dimensions
Suggested Pad Layout
SOT-26
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D ⎯ ⎯ 0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
α 0° 8° ⎯
All Dimensions in mm
Dimensions Value (in mm)
Z 3.20
G 1.60
X 0.55
Y 0.80
C1 2.40
C2 0.95
A
M
J
L D
B C
H
K
X
Z
Y
C1
C2 C2
G
