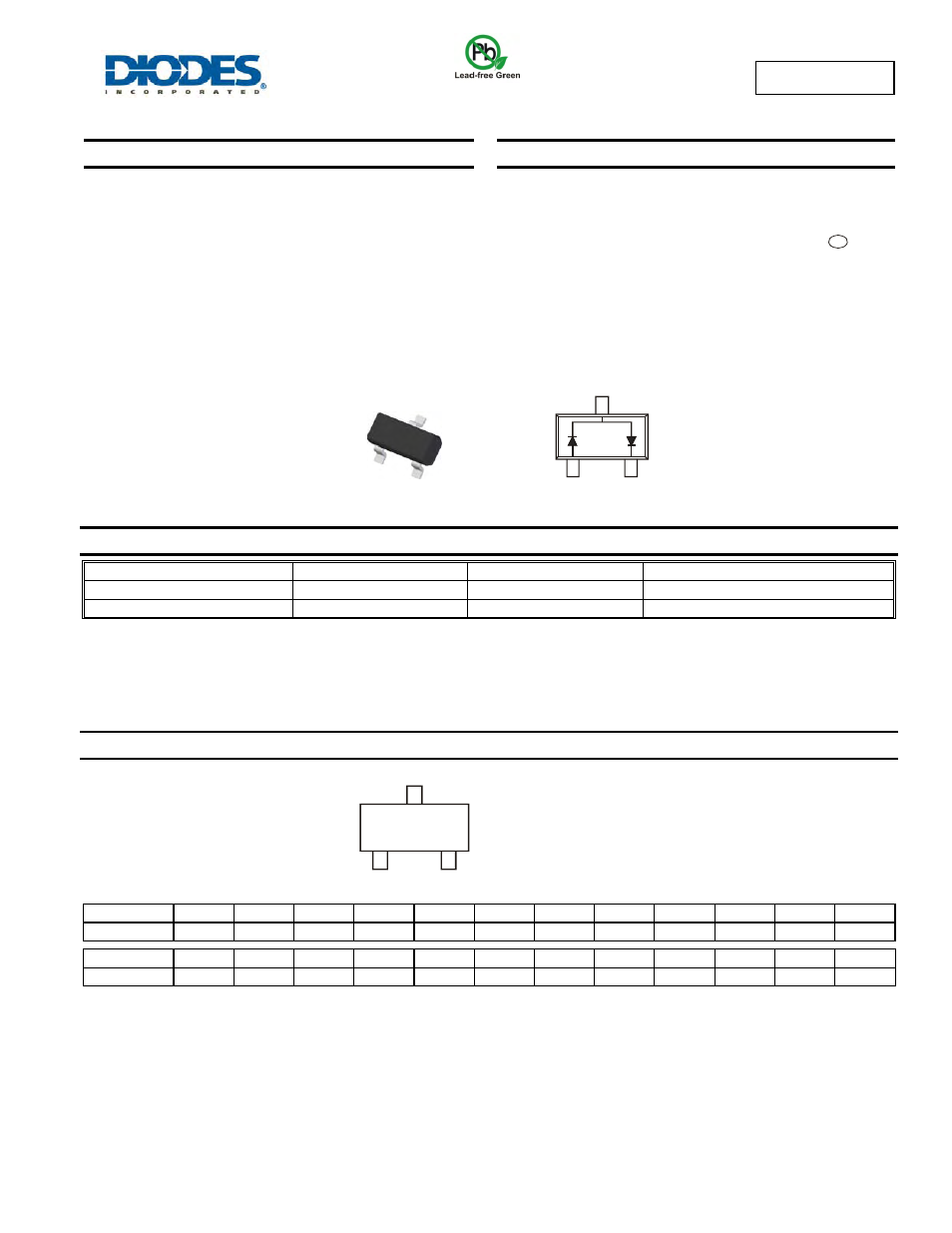

MMBD2004S
HIGH VOLTAGE SURFACE MOUNT DUAL SWITCHING DIODE
Features
•
Fast Switching Speed: Maximum of 50ns
•
High Reverse Breakdown Voltage: 300V
•
Low Leakage Current: Maximum of 100nA when V
R
= 240V at
Room Temperature
•
Surface Mount Package Ideally Suited for Automated Insertion
•
Dual Series Configuration
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals: Solderable per MIL-STD-202, Method 208
•
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
•
Polarity: See Diagram
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Qualification
Case
Packaging
MMBD2004S-7-F
Commercial
SOT23
3000/Tape & Reel
MMBD2004SQ-7-F
Automotive
SOT23
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2001 2002 2003 ….. 2012 2013 2014
2015
2016
2017
2018
2019
Code M N P ….. Z A B C D E F G
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
e3
SOT23
Internal Schematic
Top View
Kxx = Product Type Marking Code (KA9 or KAE)
YM = Date Code Marking
Y = Year ex: Z = 2012
M = Month ex: 9 = September
KXX
YM
