Diodes MMBD3004A/C/S - Manual

MMBD3004A/C/S
Document number: DS30353 Rev. 13 - 2
1 of 4
www.diodes.com
April 2014
© Diodes Incorporated

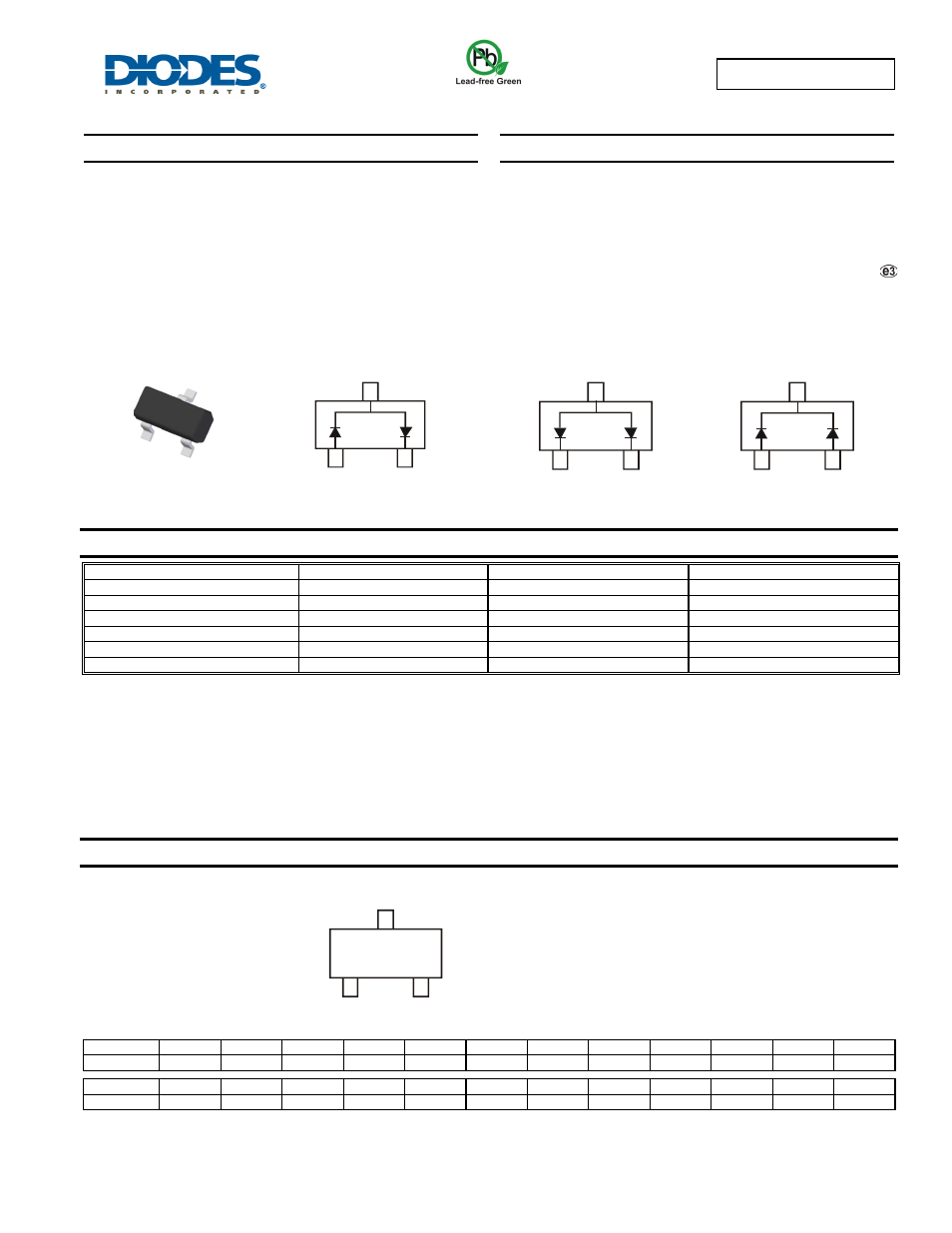

MMBD3004A/C/S
HIGH VOLTAGE SURFACE MOUNT DUAL SWITCHING DIODE
Features
 Fast Switching Speed: Maximum of 50ns
 High Reverse Breakdown Voltage Rating: 350V
 Low Reverse Current: Maximum of 100nA when V
R
= 240V at
Room Temperature
 Surface Mount Package Ideally Suited for Automated Insertion
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3 & 4)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT23
 Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
 Polarity: See Diagram
 Weight: 0.008 grams (approximate)
Ordering Information
(Note 5)
Part Number Qualification Case Packaging
MMBD3004S-7-F AEC-Q101 SOT23 3000/Tape & Reel
MMBD3004SQ-7-F Automotive SOT23 3000/Tape & Reel
MMBD3004S-13-F AEC-Q101 SOT23 10,000/Tape & Reel
MMBD3004A-7-F AEC-Q101 SOT23 3000/Tape & Reel
MMBD3004C-7-F AEC-Q101 SOT23 3000/Tape & Reel
MMBD3004CQ-7-F Automotive SOT23 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Code T U V W X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View MMBD3004S Marking: KAE
SOT23
MMBD3004A Marking: KAD MMBD3004C Marking: KAC
xxx = Product Type Marking Code
KAE = MMBD3004S
KAD = MMBD3004A
KAC = MMBD3004C
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)
xxx
YW
