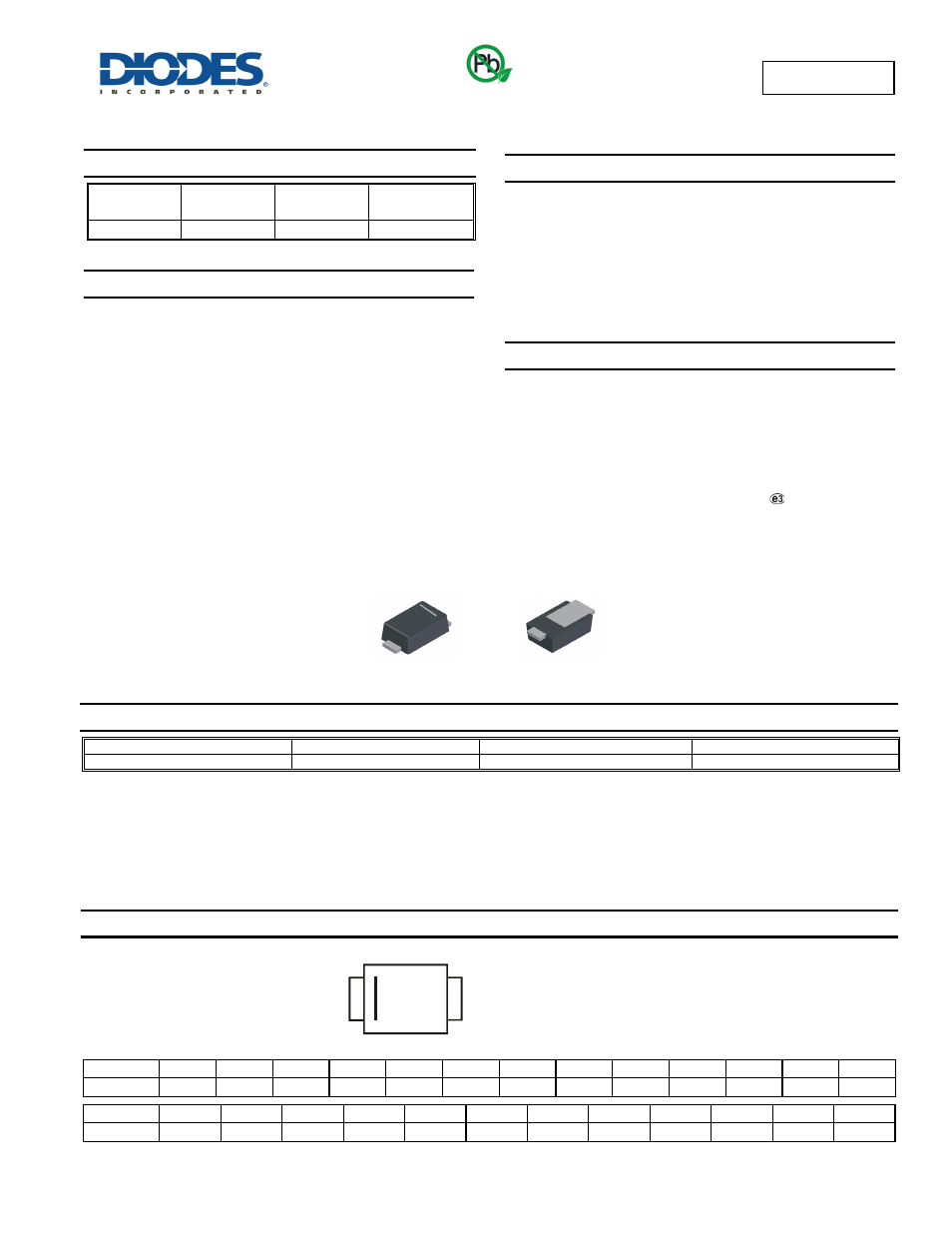

PD3S140Q
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
POWERDI
®
Product Summary
V
R
(V) I
F
(A)
V
F MAX
(V)
@ +25°C
I
R MAX
(mA)
@ +25°C
40 1.0 0.55 0.05
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
stringent requirements of Automotive Applications. It is ideally suited
to use as :
•
Polarity Protection Diode
• Re-circulating
Diode
• Switching
Diode
Features and Benefits
•
Ultra-Small Surface Mount Package
•
Guard Ring Die Construction for Transient Protection
•
High Surge Capability
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP Capable (Note 4)
Mechanical Data
•
Case: POWERDI323
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Polarity: Cathode Band
•
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.006 grams (approximate)
Ordering Information
(Note 5)
Part Number
Compliance Case
Packaging
PD3S140Q-7
Automotive
POWERDI323
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to
Marking Information
Date Code Key
Year
2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026
Code B C D E F G H I J K L M N
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
Bottom View
33 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
33
YM
POWERDI323
Green
