LM2901/ LM2901A/ LM2903/ LM2903A

Document number: DS36779 Rev. 1 - 2

14 of 15

www.diodes.com

March 2014

© Diodes Incorporated

LM2901/ LM2901A/ LM2903/ LM2903A

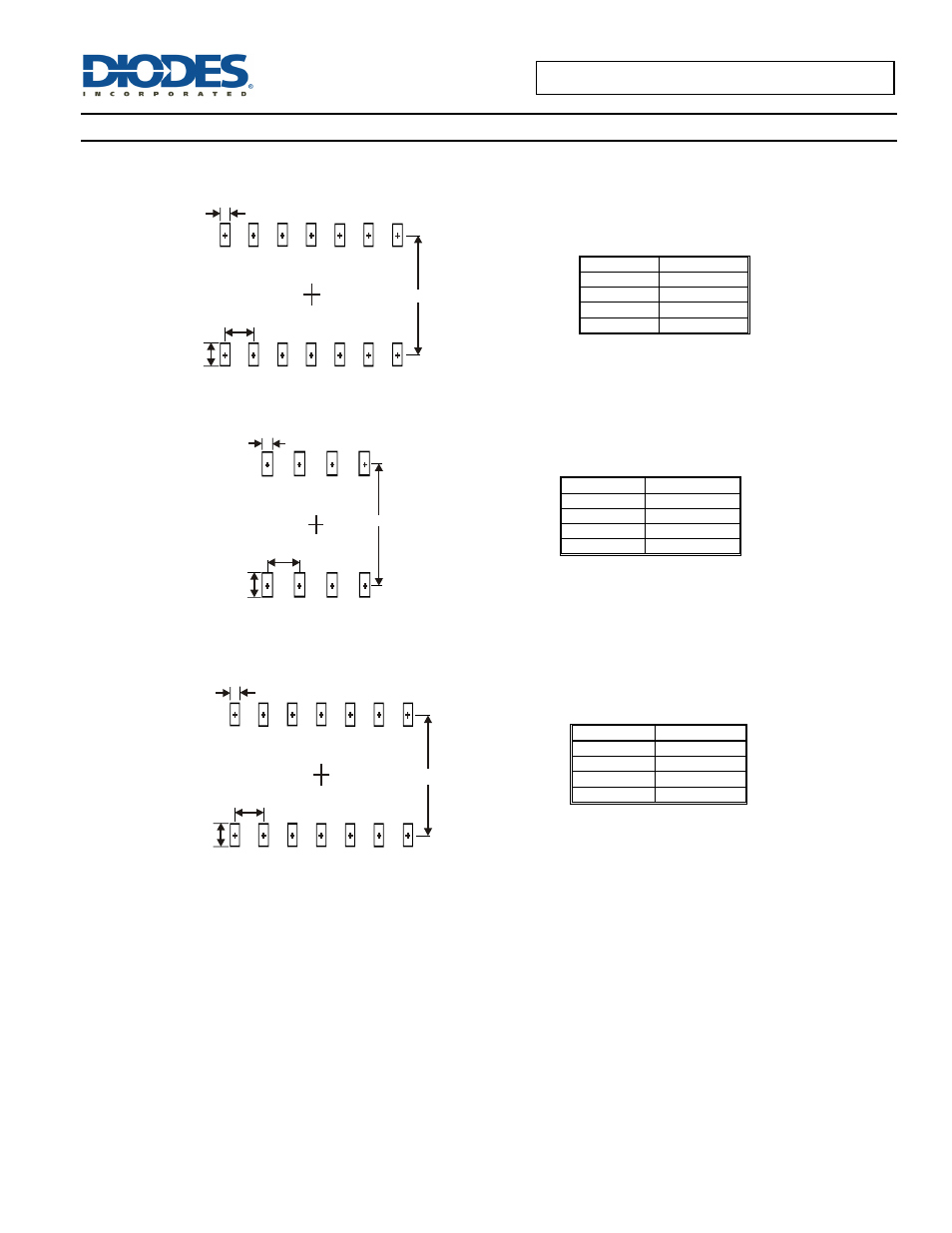

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

(1) Package Type: SO-14











(2) Package Type: SO-8













(3) Package Type: TSSOP-14


































Dimensions Value (in mm)

X

0.60

Y

1.50

C1

5.4

C2

1.27

Dimensions Value (in mm)

X

0.60

Y

1.55

C1

5.4

C2

1.27

Dimensions Value (in mm)

X

0.45

Y

1.45

C1

5.9

C2

0.65

X

C1

C2

Y

X

C1

C2

Y

X

C1

C2

Y
