LM2902/ LM2902A/ LM2904/ LM2904A
DUAL AND QUAD OPERATIONAL AMPLIFIERS
Description
The LM2902/2904 series amplifiers consist of four and two
independent high-gain operational amplifiers with very low input offset
voltage specification. They have been designed to operate from a
single power supply over a wide range of voltages; however operation
from split power supplies is also possible. They offer low power
supply current independent of the magnitude of the power supply
voltage.
The LM2902/2904 series are characterized for operation from
-40
℃ to +125℃ and the dual devices are available in SO-8 and the
quad devices available in SO-14 and TSSOP-14 with industry
standard pin-outs. Both use green mold compound as standard.
Features
Wide power supply voltage range:
Single supply: 3V to 36V
Dual supplies: ±1.5V to ±18V
Very low supply current drain
LM2904 500µA – independent of supply voltage
LM2902 700µA – independent of supply voltage
Low input bias current: 20nA
Low Input offset voltage:
A Versions …1mV (Typ)
Non-A
Version…2mV(Typ.)
Large DC voltage gain: 100dB
Wide bandwidth (unity gain): 700KHz (temperature
compensated)
Internally compensated with unity gain.
Input common-mode voltage range includes ground
Differential input voltage range equal to the power supply voltage
Large output voltage swing: 0V to V
CC
-1.5V
SO-8(duals)
and
SO-14/TSSOP-14(quads) packages available
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

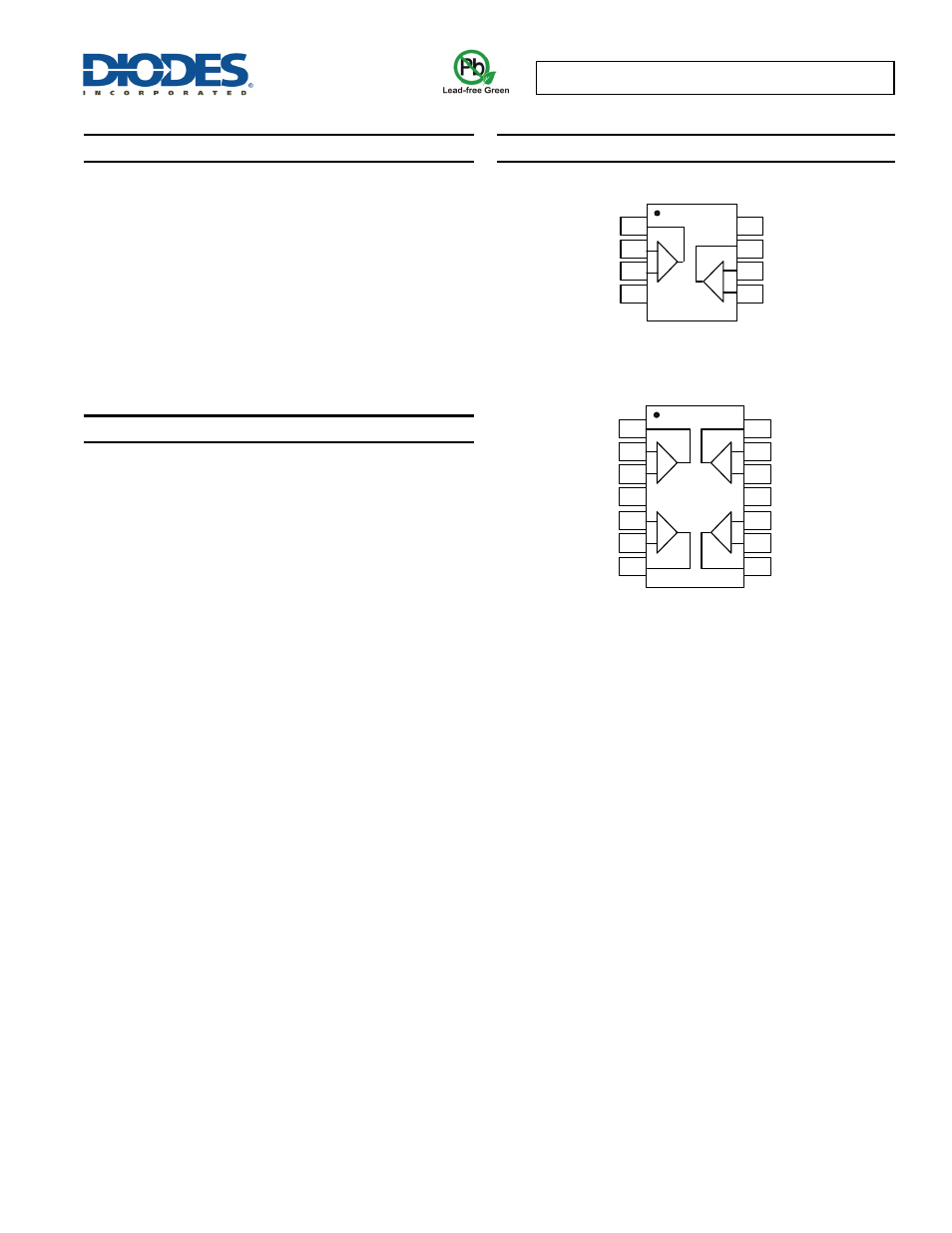

Pin Assignments
(Top View)
1
2
3
7
6
5
4
8
SO-8
1OUT
V
CC
2IN-
2IN+
1IN-
1IN+
GND
2OUT
1
+
-
+
-
2
LM2904/ LM2904A
(Top View)
1
2
3
13
12
11
4
14
SO-14/TSSOP-14
1OUT
4OUT
4IN+
7
6
5
9
10
8
GND
3OUT
3IN-
3IN+
1IN-
1IN+
V
CC
2IN+
2IN-
2OUT
4IN-
2
+
-
1
+
-
+
-
4
+
-
3
LM2902/ LM2902A
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
