DVR5V0W
Document number: DS30578 Rev. 6 - 2
4 of 5
www.diodes.com
July 2011
© Diodes Incorporated

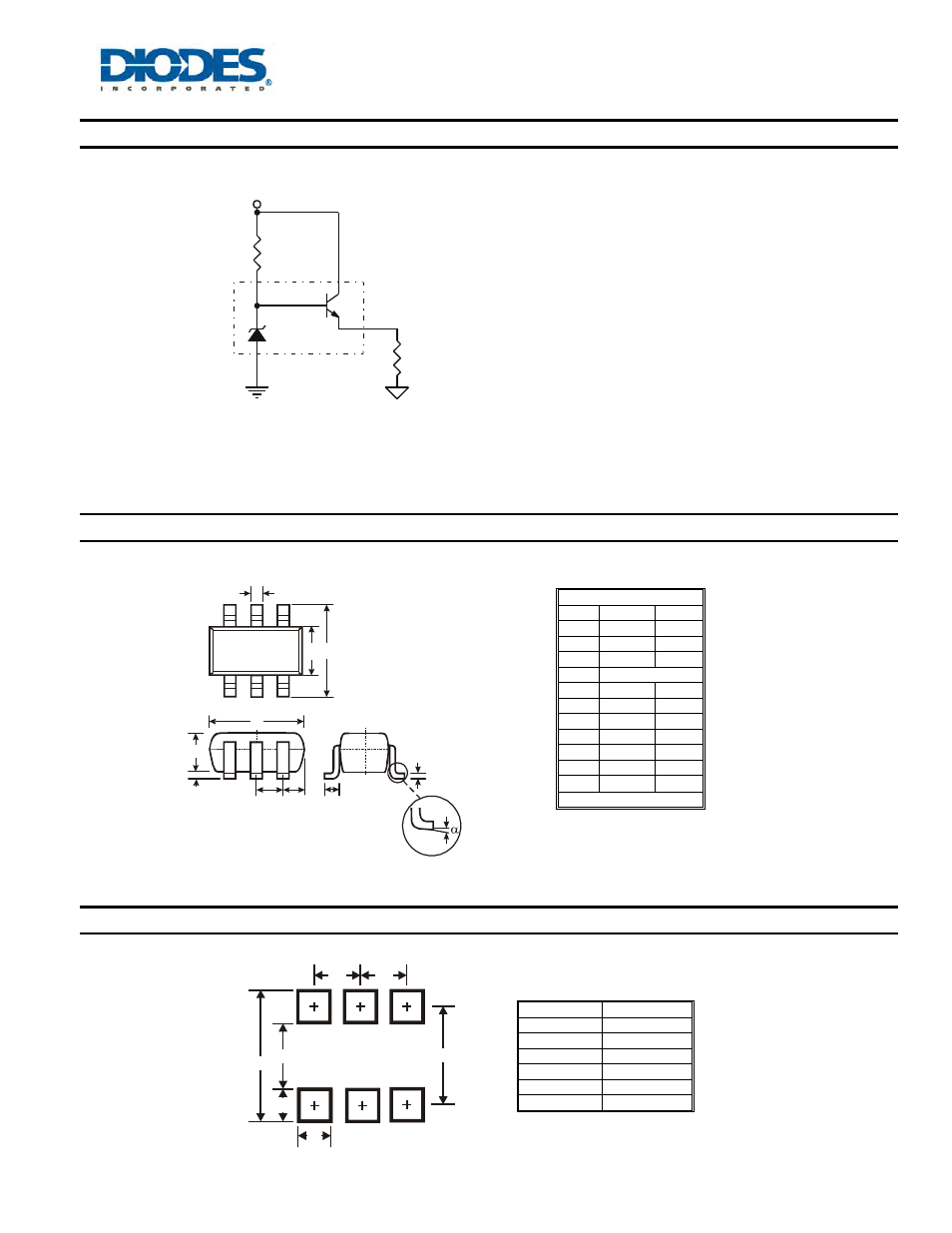

Sample Applications
Notes: 7. Resistor R1 not included.
8. Typical performance shown is under setup and operating conditions specified in the sample applications.
9. Recommended V
CC
(min) ~ Vo(nom) + 1V.
Package Outline Dimensions
Suggested Pad Layout
SOT363
Dim Min Max
A 0.10 0.30
B 1.15 1.35
C 2.00 2.20
D 0.65 Typ
F 0.40 0.45
H 1.80 2.20
J 0 0.10
K 0.90 1.00
L 0.25 0.40
M 0.10 0.22
α 0° 8°
All Dimensions in mm
Dimensions Value (in mm)
Z 2.5
G 1.3
X 0.42
Y 0.6
C1 1.9
C2 0.65
Sample Application for DVR5V0W:
V
CC
= 6.0V R1= 560
Ω
Vo(nom) = 5.0V I
O
= 100mA
Iq(typical) = 0.5mA @ I
O
= 0mA
Typical Vreg(load) = 0.2V from Io = 100mA to 0mA
Vo(nom) = 5.0V
Q1
Z1
R1 = 560R
R Load
VCC = 6.0V
DVR5V0W
A
M
J
L D
B C
H
K
F
X
Z
Y
C1
C2 C2
G
