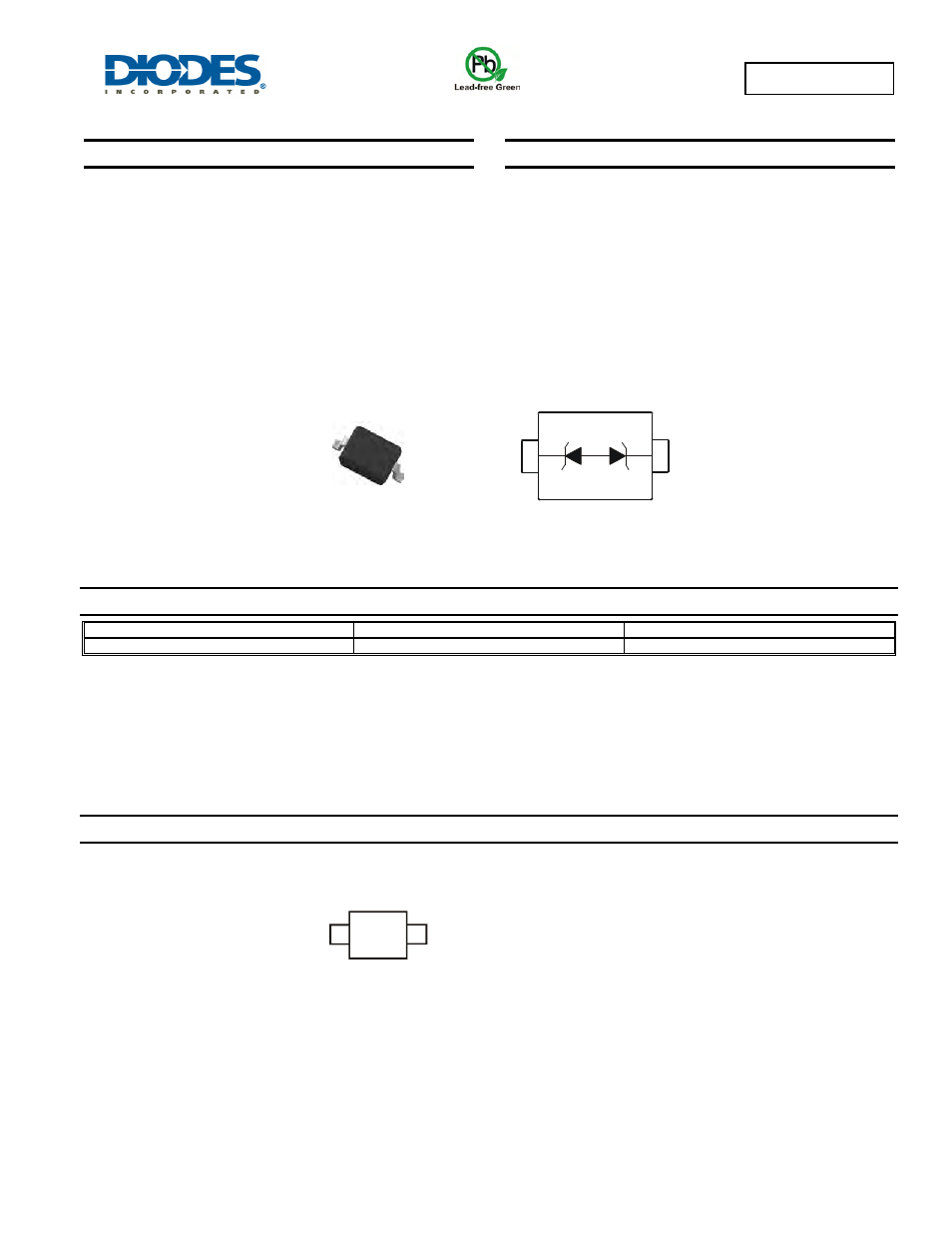

DESD5V0S1BA

Document number: DS31275 Rev. 5 - 2

1 of 4

www.diodes.com

March 2012

© Diodes Incorporated

DESD5V0S1BA

ADVAN

CE I

N

F

O

RM

ATI

O

N


LOW CAPACITANCE BIDIRECTIONAL TVS DIODE

Features

Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±30kV, Contact ±30kV

1 Channel of ESD Protection

High Peak Pulse Current per IEC 61000-4-5 Standard

Low Channel Input Capacitance

Typically Used in Cellular Handsets, Portable Electronics,
Communication Systems, Computers and Peripherals

Lead Free/RoHS Compliant (Note 1)

Halogen and Antimony Free "Green" Device (Notes 2 & 3)

Mechanical Data

• Case:

SOD323

Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Weight: 0.005 grams (approximate)














Ordering Information

(Note 4)

Part Number

Case

Packaging

DESD5V0S1BA-7

SOD323

3000/Tape & Reel

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. No purposely added lead.

2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
3. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com.
4. For packaging details, go to our website at http://www.diodes.com.





Marking Information























Device Schematic

Top View

A /

A

= Product Type Marking Code

1

2

SOD323

A /

A
