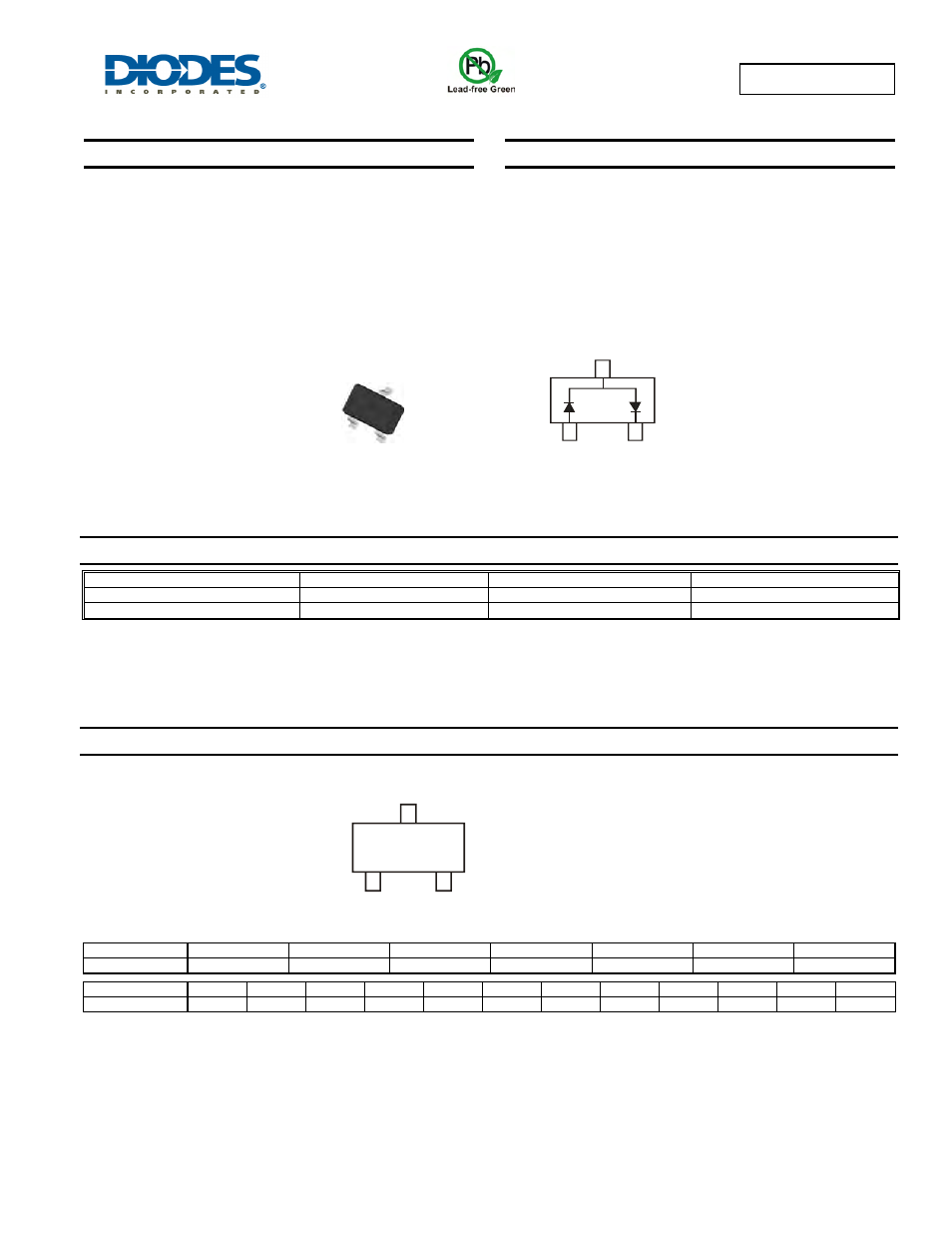

Diodes DESD1P0RFW User Manual
Features, Mechanical data, Ordering information
DESD1P0RFW
Document number: DS35278 Rev. 5 - 2
1 of 4
September 2011
© Diodes Incorporated
DESD1P0RFW
ADVAN
CE I
N
F
O
RM
ATI
O
N
LOW CAPACITANCE, ESD PROTECTION DIODE ARRAY
Features
• Low
Capacitance
•
Small Surface Mount Package
•
For ESD Protection of High Speed Data Lines
•
Lead Free/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT323
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish Annealed Over Alloy 42 Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Weight: 0.006 Grams (Approximate)
Ordering Information
(Notes 3)
Part Number
Qualification Case
Packaging
DESD1P0RFW-7
Commercial
SOT323
3000/Tape & Reel
DESD1P0RFWQ-7
Automotive
SOT323
3000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc.`s “Green” Policy can be found on our websit
3. For Packaging Details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y
Z
A
B
C D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT323
Top View
Internal Schematic
Top View
TV9 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
TV9
YM
