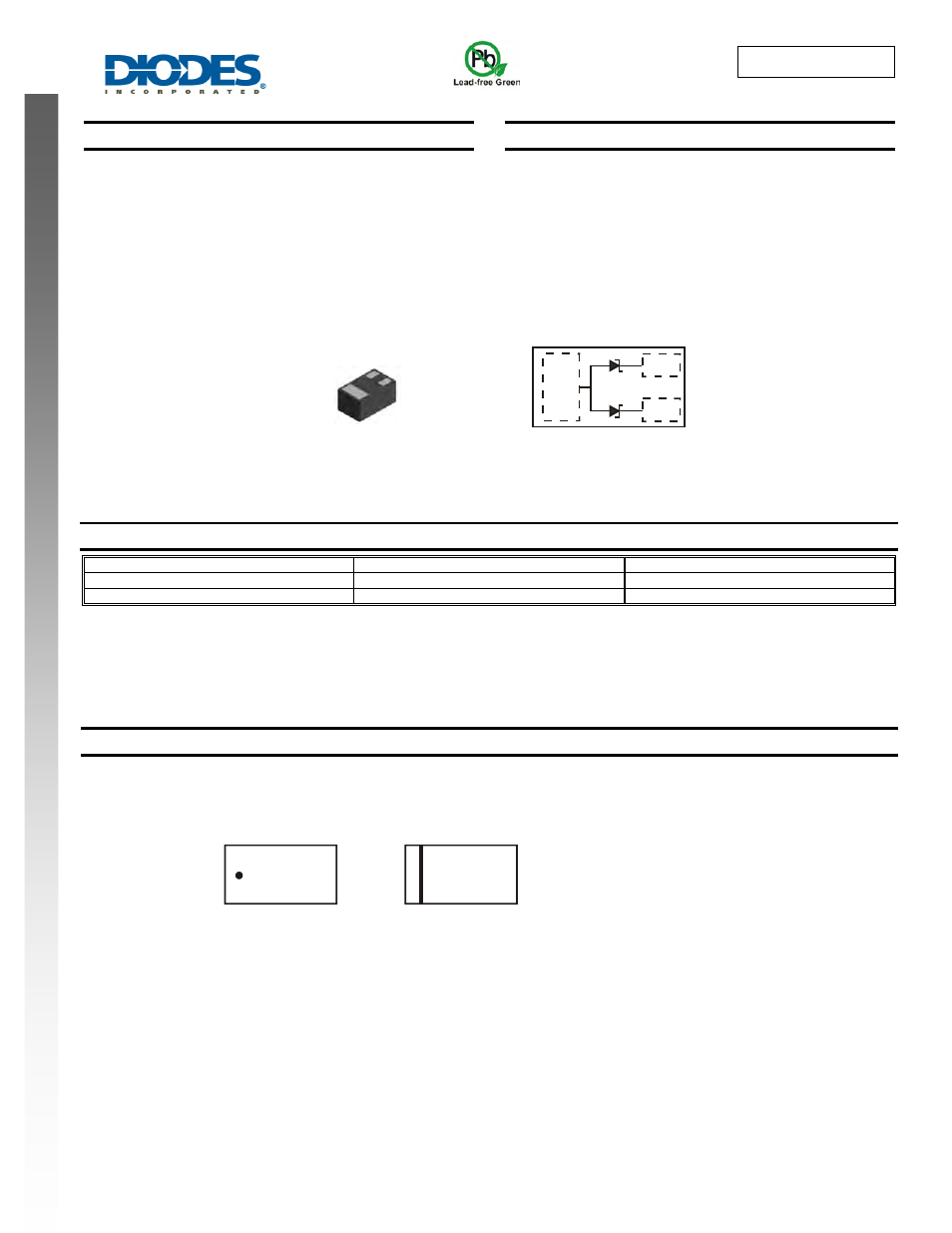

background image

DESD6V8DLP

Document number: DS32140 Rev. 6 - 2

1 of 4

www.diodes.com

February 2011

© Diodes Incorporated

DESD6V8DLP

NEW PROD

UC

T

DUAL SURFACE MOUNT TVS

Features

IEC 61000-4-2 (ESD): Level 4, Air – 16kV, Contact – 8kV

MIL STD 883C (ESD) HBM – 16kV

Low Leakage < 1

μA @ 5.25 Volts

Low Capacitance (40pF typical)

Surface Mount Package Ideally Suited for Automated Insertion

Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)

"Green" Device (Note 2)

Mechanical Data

• Case:

DFN1006-3

Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

• Terminals:

Finish

⎯ NiPdAu over Copper leadframe. Solderable

per MIL-STD-202, Method 208

Weight: 0.0009 grams (Approximate)

















Ordering Information

(Note 3)

Part Number

Case

Packaging

DESD6V8DLP-7

DFN1006-3

3000/Tape & Reel

DESD6V8DLP-7B

DFN1006-3

10,000/Tape & Reel

Notes:

1. No purposefully added lead.
2. Diodes Inc.’s “Green” policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.





Marking Information




























Bottom View

DFN1006-3

Top View

Internal Schematic

9Z = Product Type Marking Code

DESD6V8DLP-7

DESD6V8DLP-7B

Bar Denotes

Cathode Side

Dot Denotes

Anode Side

9Z

9Z
