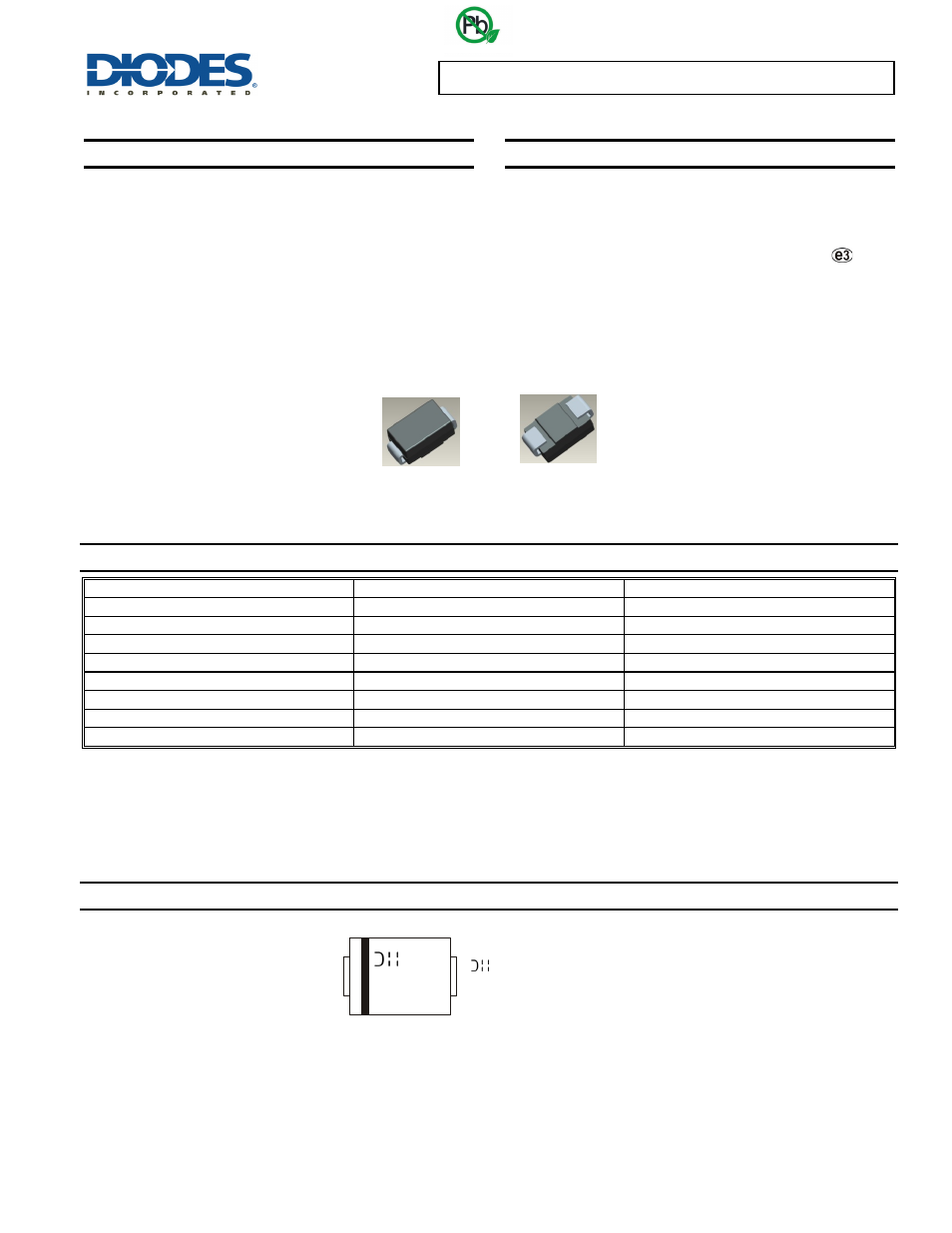

3.0SMCJ5.0A /14A /20A /22A /24A /28A /30A /58A
Document number: DS30818 Rev. 12 - 2
1 of 4
www.diodes.com
April 2014
© Diodes Incorporated
3.0SMCJ5.0A /14A /20A /22A /24A /28A /30A /58A
3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Features
• 3000W Peak Pulse Power Dissipation
• Glass Passivated Die Construction
• Excellent Clamping Capability
• Fast Response Time
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case: SMC
• Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish).
• Polarity Indicator: Cathode Band
• Weight: 0.21 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
3.0SMCJ5.0A-13 SMC 3000/Tape & Reel
3.0SMCJ14A-13 SMC 3000/Tape & Reel
3.0SMCJ20A-13 SMC 3000/Tape & Reel
3.0SMCJ22A-13 SMC 3000/Tape & Reel
3.0SMCJ24A-13 SMC 3000/Tape & Reel
3.0SMCJ28A-13 SMC 3000/Tape & Reel
3.0SMCJ30A-13 SMC 3000/Tape & Reel
3.0SMCJ58A-13 SMC 3000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Top View Bottom View
Green
xxx = Product type marking code,
See Electrical Characteristics Table
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 4 for 2014)
WW = Week code (01 - 53)
YWW
xxx
